Section 08 REAR SUSPENSION
Subsection 01 (SC-10 SUSPENSION)
COMPONENT REMOVAL AND
INSTALLATION

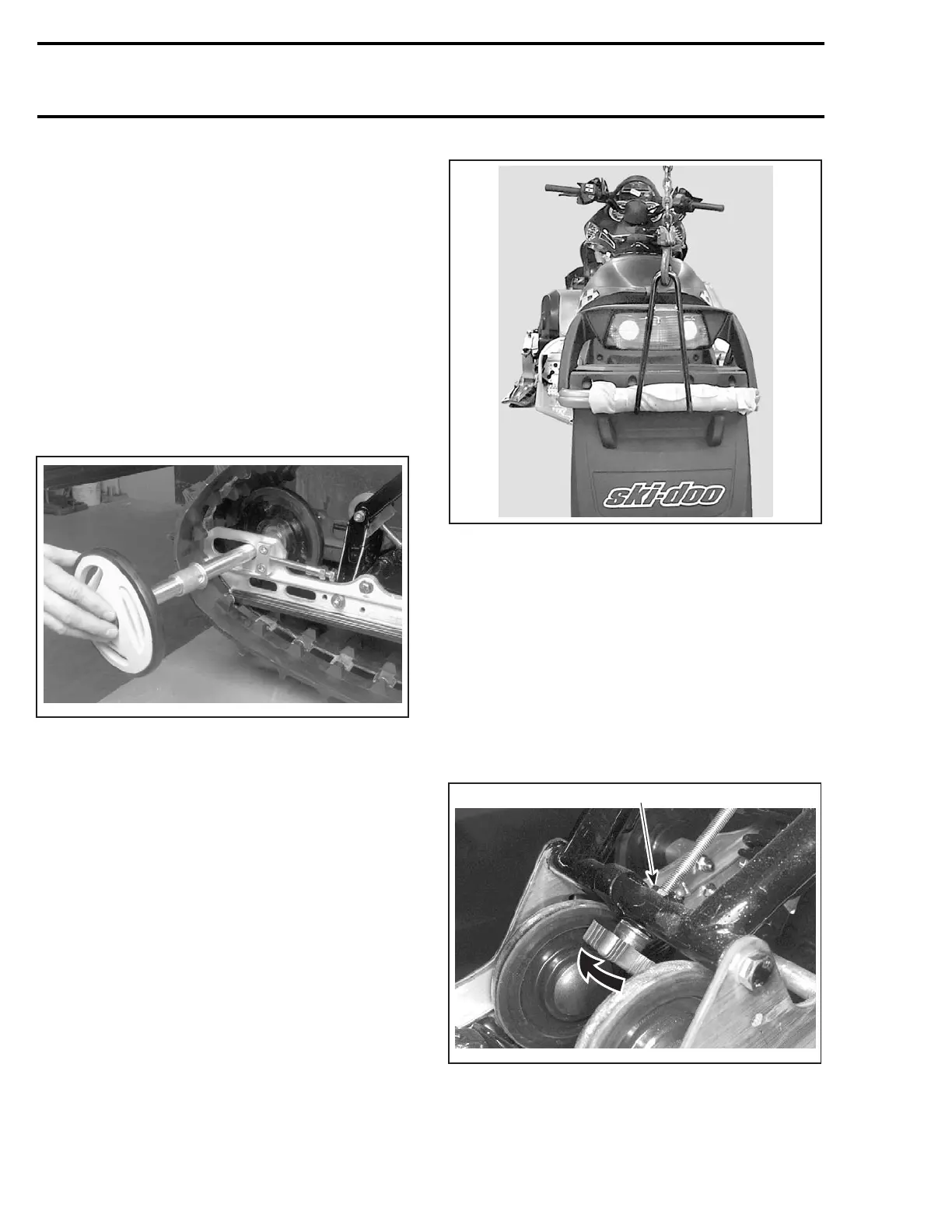

Lift rear of vehicle and support it off the ground.
Rear Axle
Remove screw on rear axle no. 21 on side of off-
set wheel.
Completely loosen track tension.
Pull out rear axle from opposite side of offset inner
wheel.
At assembly, align spacer hole with adjusting bolt.
Make sure to reinstall washer on each side of run-
ner.
A03F1LA
TYPICAL
Rear Shock
Lift rear of vehicle.
A32F4BA
Remove nut on top end of rear shock no. 15.
Remove nut on bottom end of shock.
In case of gas shocks, completely loosen stopper
strap or unfasten one end of them.
Installation is reverse of removal procedure.
CAUTION: Take care not to damage grease fit-
ting.
Front Shock
Unfasten one end of stopper strap(s) or loosen the
adjuster knob to release shock pressure.
A32E19B
1
1. Loosen lock nut, turn adjuster knob counterclockwise
Unbolt front shock no. 12 from the top.
288 mmr2004-Rev
