Ski-Doo REV Series Shop Manual

Section 08 REAR SUSPENSION
Subsection 03 (DRIVE AXLE)
ASSEMBLY
DriveAxleandSprocket

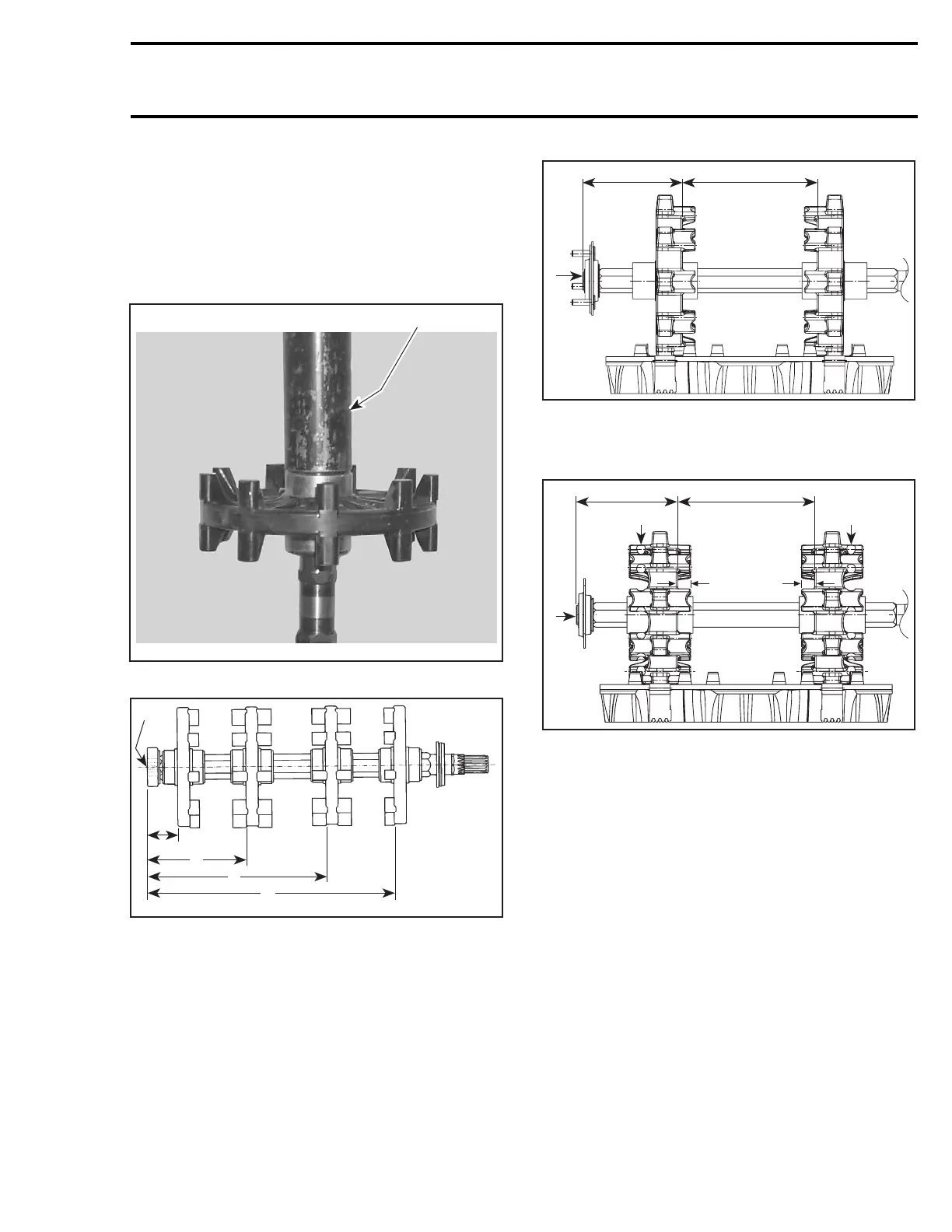

To assemble press fit sprockets no. 5, 6,usea
press and a suitable pipe as illustrated. Sprockets
must be assembled according to the following di-
mensions measured from drive axle end.
1
A33D0MA
1. Pipe
1
A
B
C
D
A06D1XC
GSX AND MX Z SERIES
1. Measure from end of drive axle
A. 48.5 mm (1.909 in)
B. 151.0 mm (5.944 in)
C. 274.0 mm (10.787 in)
D. 376.5 mm (14.822 in)
1
A32D45A
A B
SUMMIT X AND HIGHMARK X
1. Measure from end of drive axle
A. 132.0 mm (5.2 in)
B. 178.5 mm (7.03 in)
1
C D
A B
A32D46A
2 2
SUMMIT HM XTREME
1. Measure from end of drive axle
2. Position machined teeth outward
A. 17.0 mm (.67 in)
B. 17.0 mm (.67 in)
C. 132.0 mm (5.20 in)
D. 178.5 mm (7.03 in)
mmr2004-Rev 313
