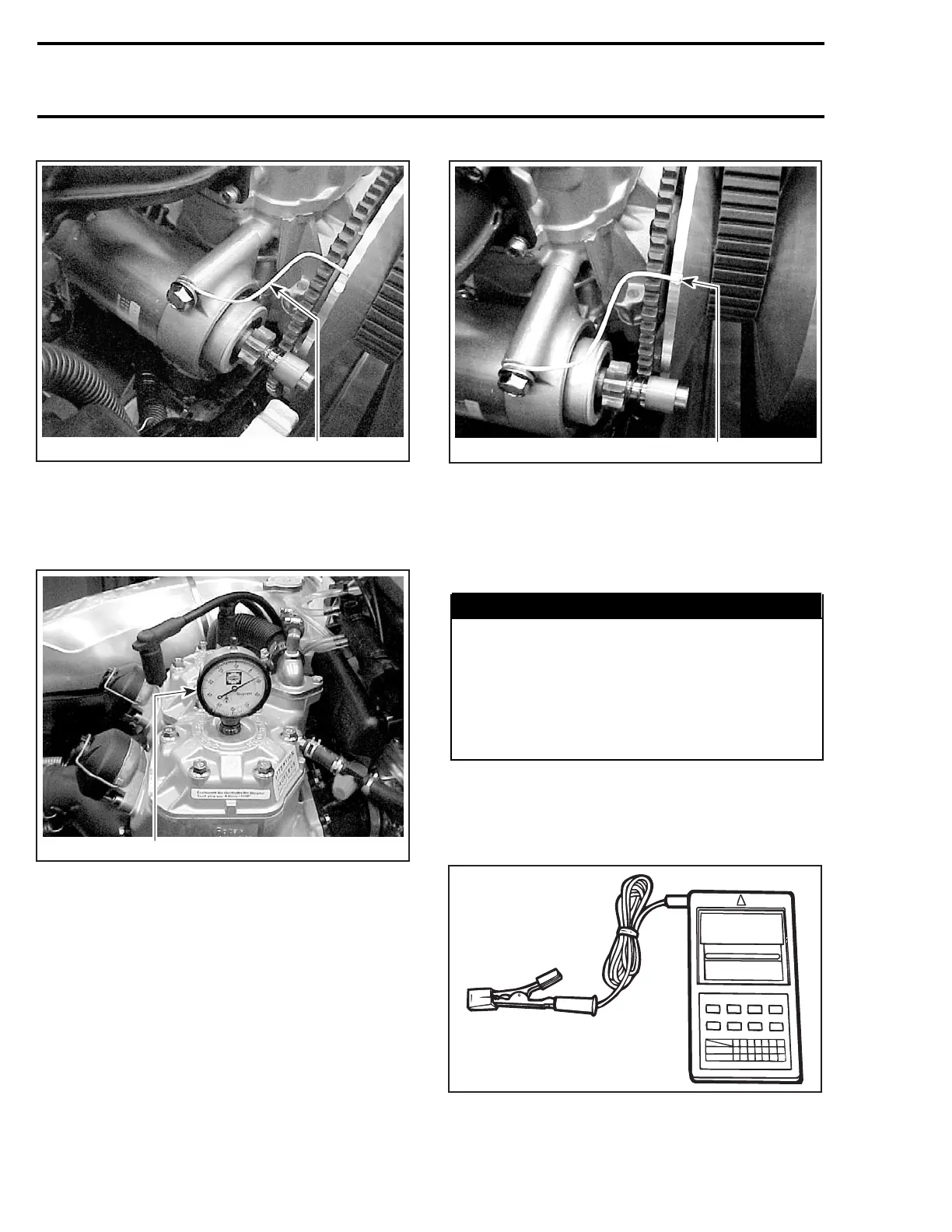

Ski-Doo REV Series Shop Manual

Section07ELECTRICALSYSTEM
Subsection 01 (IGNITION TIMING)
1
A29E0RA
1. Pointer
• With the TDC gauge indicating specified timing,
scribe a mark on drive pulley inner half in line
with pointer end.
1
A29E0SA
TYPICAL
1. TDC gauge indicating specified timing
1
A29E0TA
1. TIMING MARK IN LINE WITH POINTER END
CHECKING IGNITION TIMING
Use a timing light.
To check the ignition timing proceed as follows:

WARNING
Place ski tips against a wall, raise rear of ve-
hicle on a stand, so that track does not con-
tact the ground. Do not allow anyone in front
of or behind the vehicle while engine is run-
ning. Keep clear of track and do not wear
loose clothing which can get caught in mov-
ing parts.
Connect the timing light pick-up to a spark plug
cable.
Connect a digital induction type tachometer
(P/N 529 014 500).
F01B1GA
TACHOMETER
252
mmr2004-Rev
