THREADLOCKER

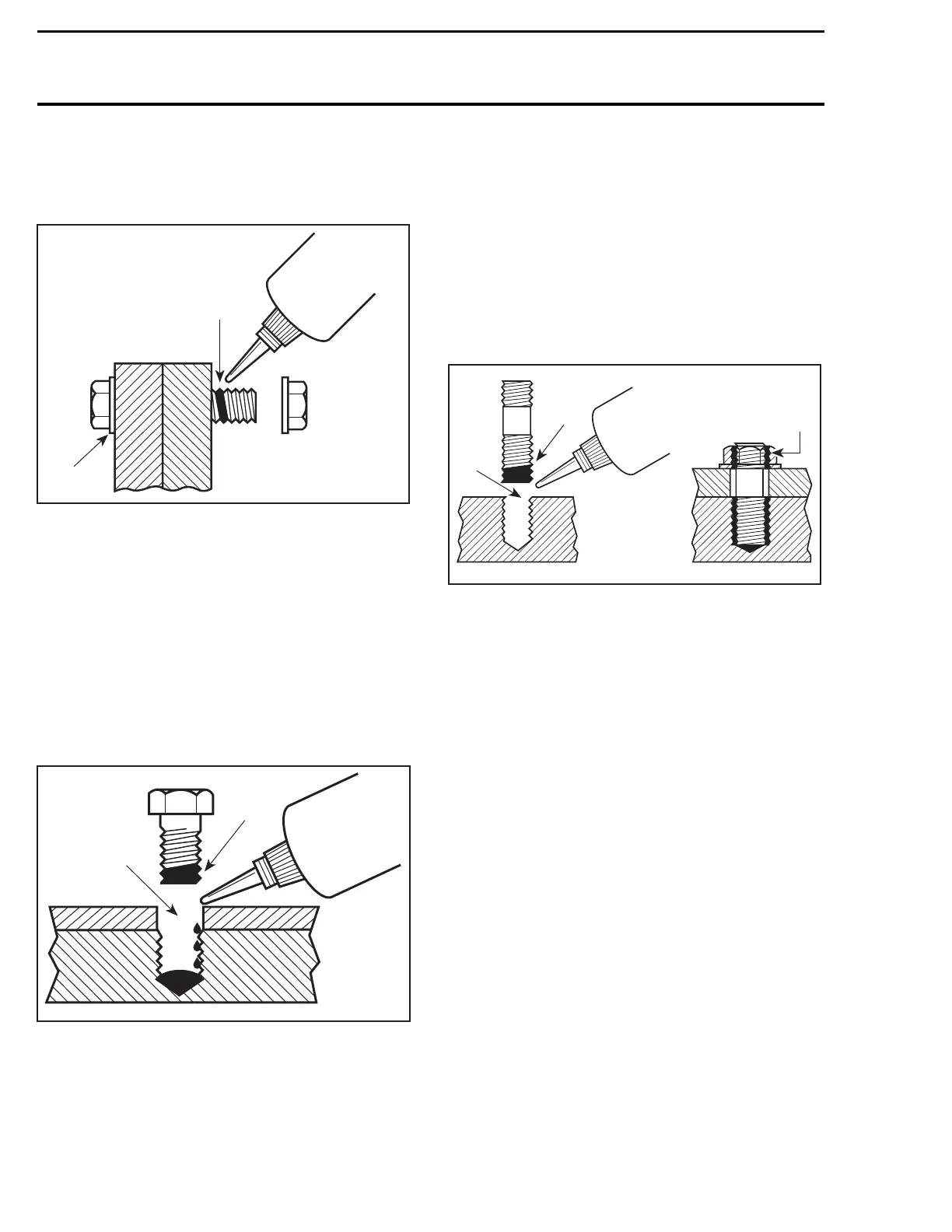

Uncovered Holes (bolts and nuts)
A00A3LA
1
2
1. Apply here
2. Do not apply
– Clean threads (bolt and nut) with solvent.
– Apply Loctite Primer N (P/N 293 800 041) on
threads and allow to dry.
– Choose proper strength Loctite threadlocker.
– Fit bolt in the hole.
– Apply a few drops of threadlocker at proposed
tightened nut engagement area.
– Position nut and tighten as required.
Blind Holes
A00A3MA
1
2
1. On threads
2. On threads and at the bottom of hole
– Clean threads (bolt and hole) with solvent.
– Apply Loctite Primer N (P/N 293 800 041) on
threads (bolt and nut) and allow to dry for 30
seconds.
– Choose proper strength Loctite threadlocker.
– Apply several drops along the threaded hole and
at the bottom of the hole.
– Apply several drops on bolt threads.
– Tighten as required.
Stud in Blind Holes
A00A3NA
2
1
3
1. On threads
2. On threads and in the hole
3. Onto nut threads
– Clean threads (stud and hole) with solvent.
– Apply Loctite Primer N (P/N 293 800 041) on
threads and allow to dry.
– Put several drops of proper strength Loctite
threadlocker on female threads and in hole.
– Apply several drops of proper strength Loctite
on stud threads.
– Install stud.
– Install cover, etc.
– Apply drops of proper strength Loctite on un-
covered threads.
– Tighten nuts as required.
XX

Ski-Doo REV Series Specifications

General

Chassis	REV
Track Width	15 in
Fuel Capacity	10.6 gal
Seating Capacity	1
Reverse	Available on most models
Electric Start	Available on most models
