Ski-Doo REV Series Shop Manual

Section 06 TRANSMISSION
Subsection 06 (CHAINCASE)

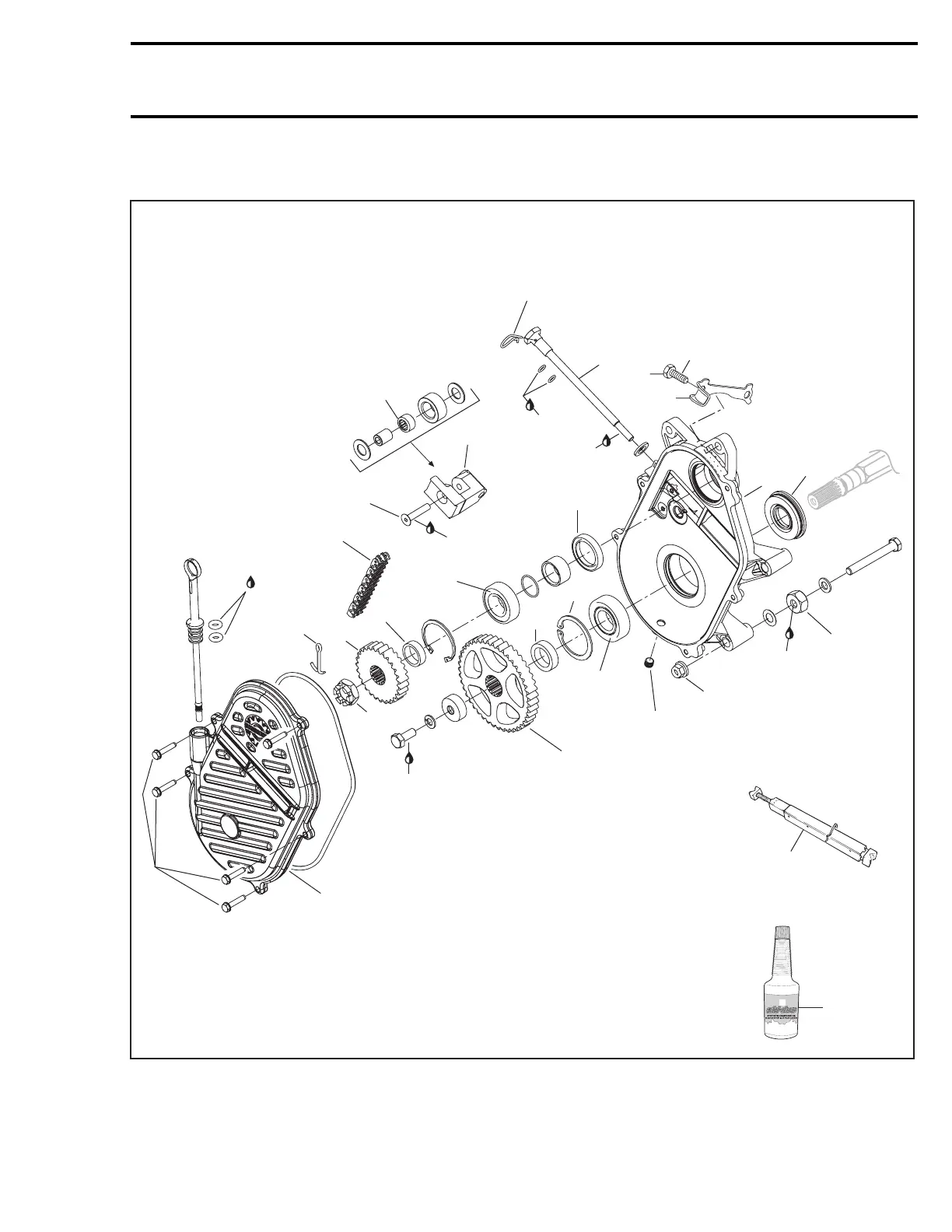

CHAINCASE
Synthetic
chaincase oil
21
20
8
7 Nm
(62 lbfin)
Loctite
243
25 Nm
(18 lbfft)
Sealed
side
Stamped end
this side
Synthetic
grease
Loctite 271
10
Synthetic
chaincase
oil
9
42 Nm
(31 lbfft)
22
23
7
19
12
11
1
13
2
16
42 Nm
(31 lbfft)
14
24
4 Nm
(35 lbfin)
17
18
44 Nm
(32 lbfft)
4
3
5
6
Sealed
side
Loctite 271
17 Nm
(150 lbfin)
A33D0QT
mmr2004-Rev 245
