Section 08 REAR SUSPENSION
Subsection 02 (SC-10 III SUSPENSION)
COMPONENT REMOVAL AND
INSTALLATION

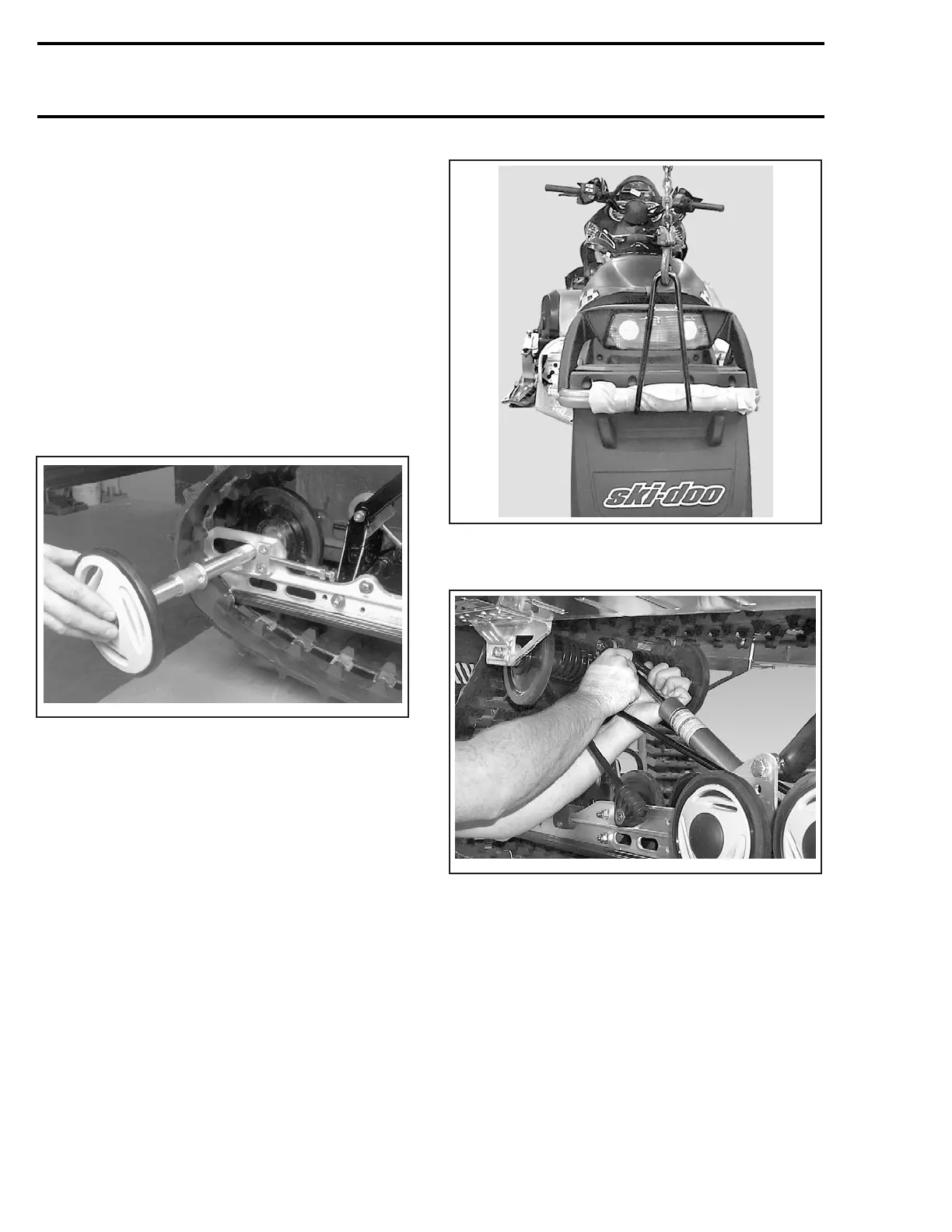

Lift rear of vehicle and support it off the ground.
Rear Axle
Remove screw on rear axle no. 21 on side of off-
set wheel.
Completely loosen track tension.
Pull out rear axle from opposite side of offset inner
wheel.
At assembly, align spacer hole with adjusting bolt.
Make sure to reinstall washer on each side of run-
ner.
A03F1LA
TYPICAL
Rear Shock
Lift rear of vehicle.
A32F4BA
TYPICAL
Remove nut on top end of shock no. 23.
A33F44A
Remove nut on bottom end of shock.
Installation is reverse of removal procedure.
Front Shock
Unfasten one end of stopper strap(s).
Unbolt shock no. 8 from the top.
Remove the front idler wheels to gain access to
the axle retaining self-locking screws no. 2 and
no. 3. Follow the instructions provided in this sec-
tion to unfasten these screws. Slide out the axle
and remove the shock.
296 mmr2004-Rev
