Ski-Doo REV Series Shop Manual

Section 06 TRANSMISSION
Subsection 01 (DRIVE BELT)

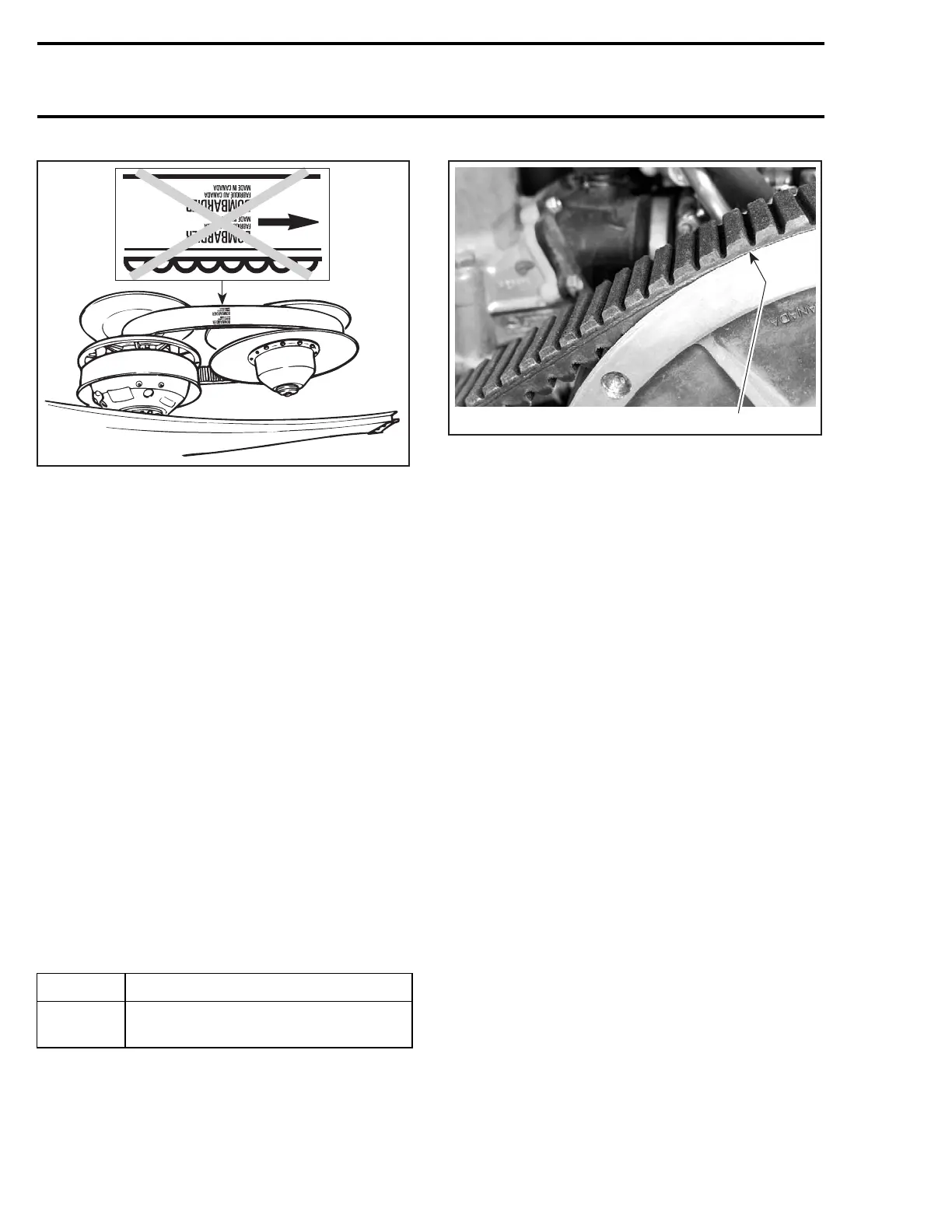

A01D2LA
INCORRECT
NOTE: For used drive belt, mark and reinstall in
the same position.
DRIVEBELTHEIGHT
MEASUREMENT AND
ADJUSTMENT
Measurement
NOTE: The drive belt height measurement must
be performed each time a new drive belt is in-
stalled.
NOTE: To obtain an accurate drive belt height
measurement, it is suggested to allow a break-in
period of 50 km (30 miles).
Before checking the belt height, ensure that a
good-condition proper belt (refer to the APPLICA-
TION CHART) is installed.
Adjust pulley distance and alignment. Refer to
PULLEY DISTANCE AND ALIGNMENT.
To obtain maximum vehicle performance, the belt
height must be adjusted according to specifica-
tions shown in the accompanying chart.
MODEL BELT HEIGHT
All models
Top edge of drive belt cord should be
flush with driven pulley edge.
1
A02D1UA
1. Flush
Adjustment
Before adjusting the belt height, ensure that a
good-condition proper belt (refer to the APPLICA-
TION CHART) is installed.
Adjust pulley distance according to specification,
refer to PULLEY DISTANCE AND ALIGNMENT.
Models Equipped with Formula Type
Driven Pulley
Adjust drive belt height using Allen screws, as
shown.
To lower belt in driven pulley: turn Allen screws
clockwise.
To raise belt in driven pulley: turn Allen screws
counterclockwise.
NOTE: Turn Allen screws 1/4 turn at a time, then
rotate driven pulley to allow drive belt to settle in
pulley. Check height, repeat as required.
210 mmr2004-Rev

Ski-Doo REV Series Specifications

General

Chassis	REV
Track Width	15 in
Fuel Capacity	10.6 gal
Seating Capacity	1
Reverse	Available on most models
Electric Start	Available on most models
