Ski-Doo REV Series Shop Manual

Section 06 TRANSMISSION
Subsection 01 (DRIVE BELT)
A06D20A
+-
1
TYPICAL

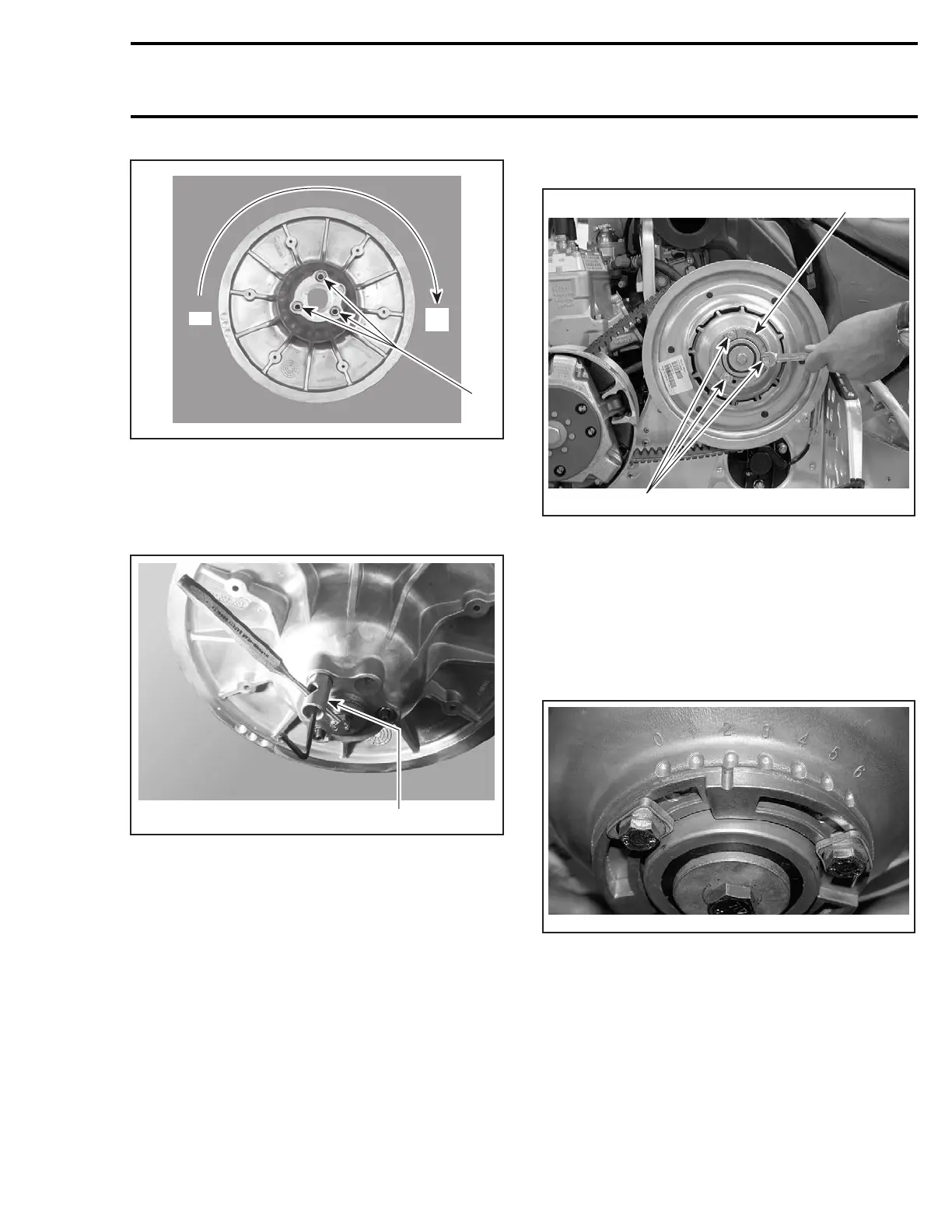

1. Allen screws with jam nuts
Allen screws must be restrained while tightening
jam nut to prevent throwing adjustment out. Use
drive belt tension adjuster (P/N 529 008 700).
A06D21A
529 008 700
TYPICAL
Models Equipped with HPV Type Driven Pulley
1
2
A33D0DA
1. Screws
2. Adjustment ring
Loosen screws and turn adjustment ring as fol-
lows:
To lower belt in driven pulley: turn adjustment ring
counterclockwise and tighten the screws.
To raise belt in driven pulley: turn ring clockwise
and tighten the adjustment screws.
A33D0EA
DRIVEN PULLEY NOTCHES
Turn the adjustment ring up to one notch, tighten
the screws, then rotate driven pulley to allow drive
belt to settle in pulley. Check height, if required
the adjustment ring can be turned up to 1/4 or 1/2
the notch. Check height, repeat as required.
NOTE: Notches are there on the driven pulley for
reference purpose only and the desired adjust-
ment can be attained at any point.
