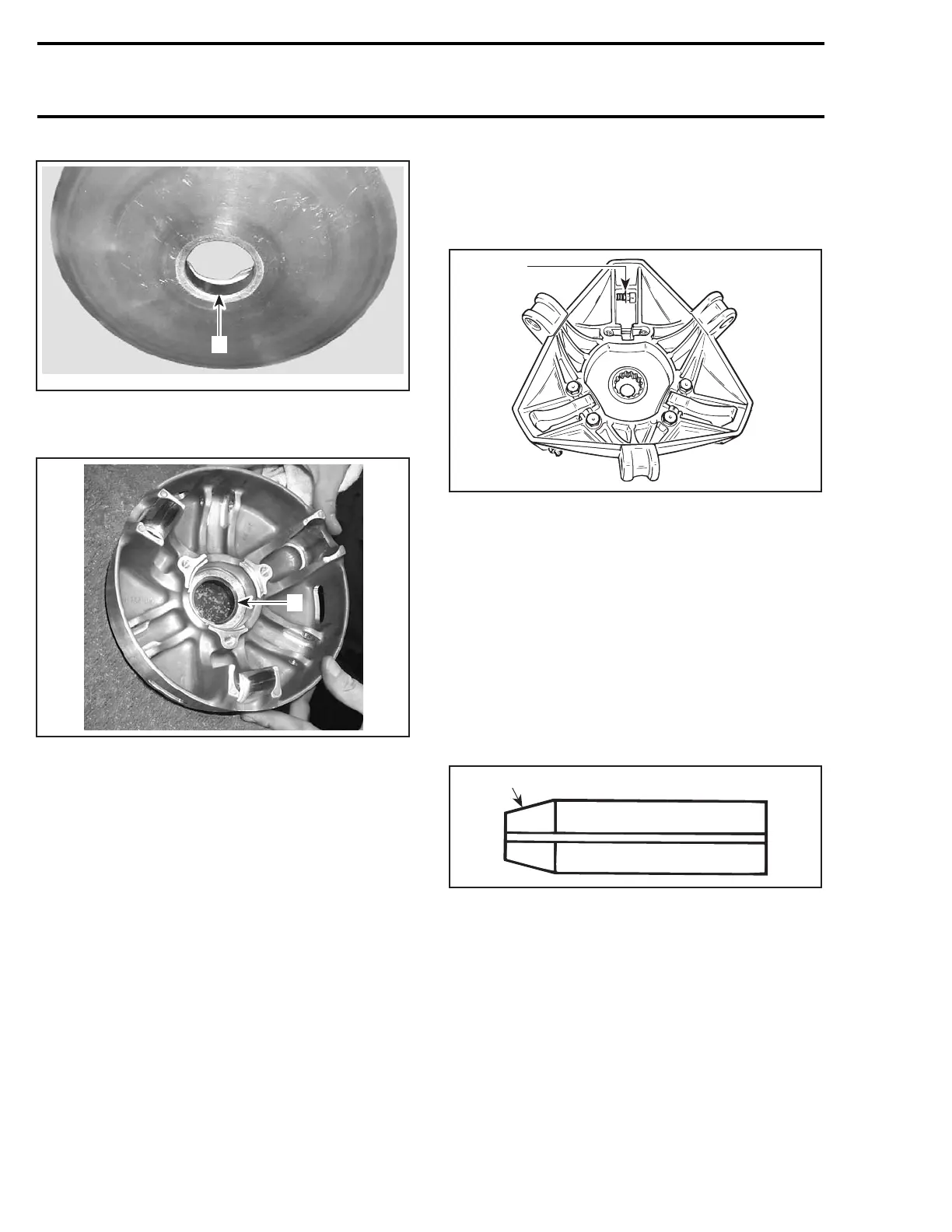

Section 06 TRANSMISSION
Subsection 02 (DRIVE PULLEY)
A32D2YA
1
1. Bushing
Install the circlip.
1
A32D2ZA
1. Circlip
Spring Cover Bushing Replacement
Under normal use there is no need to replace this
bushing.
In case of replacement, it’s recommended to re-
place spring cover ass’y.
ASSEMBLY
NOTE: This drive pulley is lubrication free. Do not
lubricate any component.
1,2,3, Screw, Ring Gear and Loctite 271
Apply Loctite 271 (P/N 413 702 900) on threads
andthentorqueto27N•m(20lbf•ft).
26,27,28, Calibration Screw, Washer
and Locking Nut
When installing calibration screw, make sure to
install washer as shown.
A16D07A
1
TYPICAL
1. Washer
Torque locking nut to 10 N•m(89lbf•in).
15, Pin
Always use the same type of pin as originally in-
stalled when servicing. Different types have dif-
ferent weights for calibration purpose. Refer to
TECHNICAL DATA.
21,22,23, Screw, Dowel Tube and Ramp
Insert dowel tube from chamfered side. Make
sure ramp is centered on dowel tube.
A16D08A
1
1. Chamfered side
Position dowel tube split at the angle A.
220 mmr2004-Rev
