Section04ENGINE
Subsection 08 (FUEL TANK AND FUEL PUMP)
FUEL FILTER
For fuel filter servicing, refer to PRESEASON
PREPARATION.

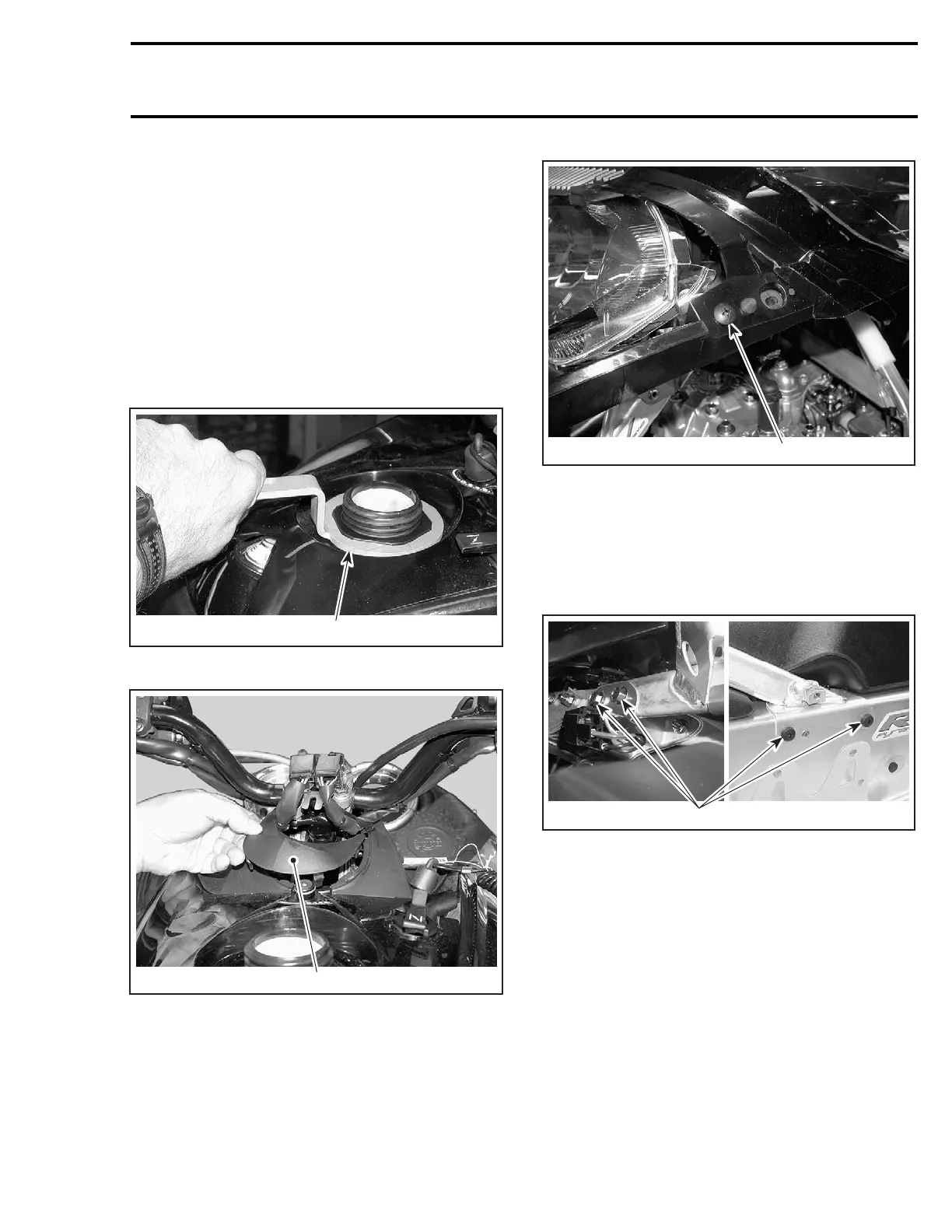

FUEL TANK
Removal
Remove seat, refer to BODY.
Remove fuel tank cap.
Remove filler neck plastic nut using special tool
(P/N 529 035 891).
529 035 891
A33C1TA
Unclip and remove console center trim cap.
1
A33F0XA
1. Remove this cap
Remove retaining screw on both sides of cen-
ter console; this will allow lifting of console just
enough to ease tank removal.
1
A33F0YA
1. Remove this screw on both sides
Remove both sides fuel tank aluminum braces:
– by removing and discarding lower M8 x 20 Torx
screws (2 on each side);
– and by removing upper M8 flanged hexagonal
bolts (2 on each side) and discarding their nuts.
1
A33F0ZA
1. Remove and discard lower Torx screws on both sides — remove
upper flanged hexagonal bolts and discard their nuts on both sides
All Models except SDI
Empty fuel tank and install a hose pincher on fuel
line no. 1 as shown in following photo.
mmr2004-Rev 159
To Next Page
