Ski-Doo REV Series Shop Manual

Section 12 WIRING DIAGRAM
Subsection 01 (WIRING DIAGRAMS)
WIRING DIAGRAMS
Wiring diagrams can be found at the end of this
subsection.

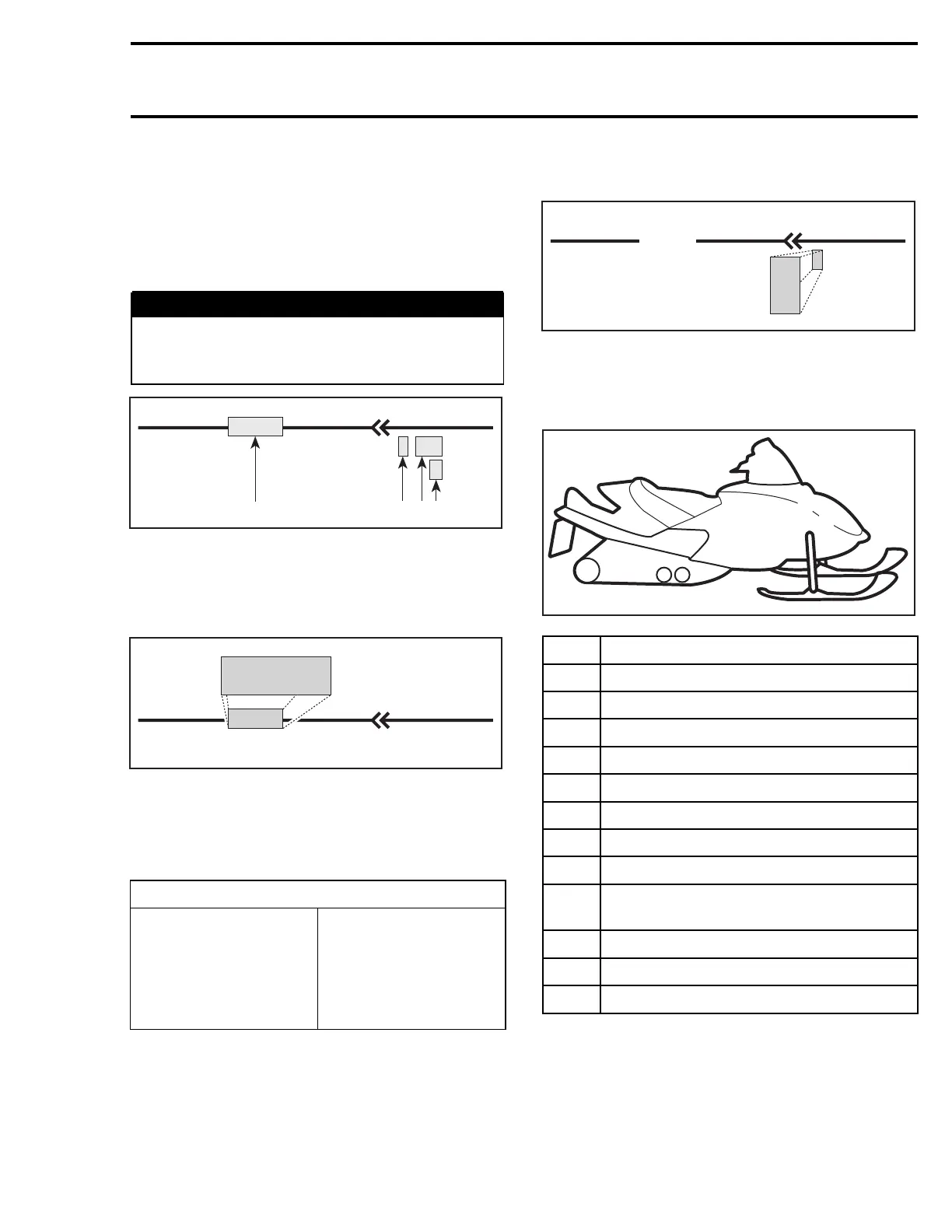

WIRING DIAGRAM LEGEND

WARNING
Ensure all terminals are properly crimped
on the wires and all connector housings are
properly fastened.
A00I04E
XX/XX
1
- MC
1
2 3 4
D
1. Wire colors
2. Connector housing area
3. Housing code per area
4. Wire connector location in housing
WIRE COLORS
1- MC
D
A00I04F
XX/XX
XX/XX
Thefirstcolorofawireisthemaincolor,second
color is the stripe.
Example: YL / BK is a YELLOW wire with a BLACK
stripe.
COLOR CODE
BE — BEIGE
BK — BLACK
BU — BLUE
BR — BROWN
GN — GREEN
GY — GREY
OR — ORANGE
RD — RED
VI — VIOLET
WH — WHITE
YL — YELLOW
CONNECTOR HOUSING AREA
The first digit of the connector identification num-
ber presents the location of the connector on the
vehicle.
- MC
D
XX/XX
A00I04G
11
1
The following illustration shows the snowmobile
with number on it. These numbers will corre-
spond with the locations of the connector on the
vehicle along with a brief description.
7
10
A32H43A
12
11
2
1
8
3
4
9
6
5
AREA LOCATION
1
Right hand side of engine
2 Engine
3 Near right hand side footrest
4
Near driven pulley
5
Under console
6 Under hood
7
Near fuel tank
8 Under engine
9
Near steering column or on primary air
intake silencer
10
On handlebar
11
Injection oil tank
12
Secondary air intake silencer
HOUSING REFERENCE PER AREA
The next two letters of the connector identifica-
tion number represents a connector reference. If
there are many connectors in the same area this
helps identify which wire is in which connector.
mmr2004-Rev 409
