Ski-Doo REV Series Shop Manual

Section04ENGINE
Subsection 07 (CARBURETOR AND THROTTLE CABLE)

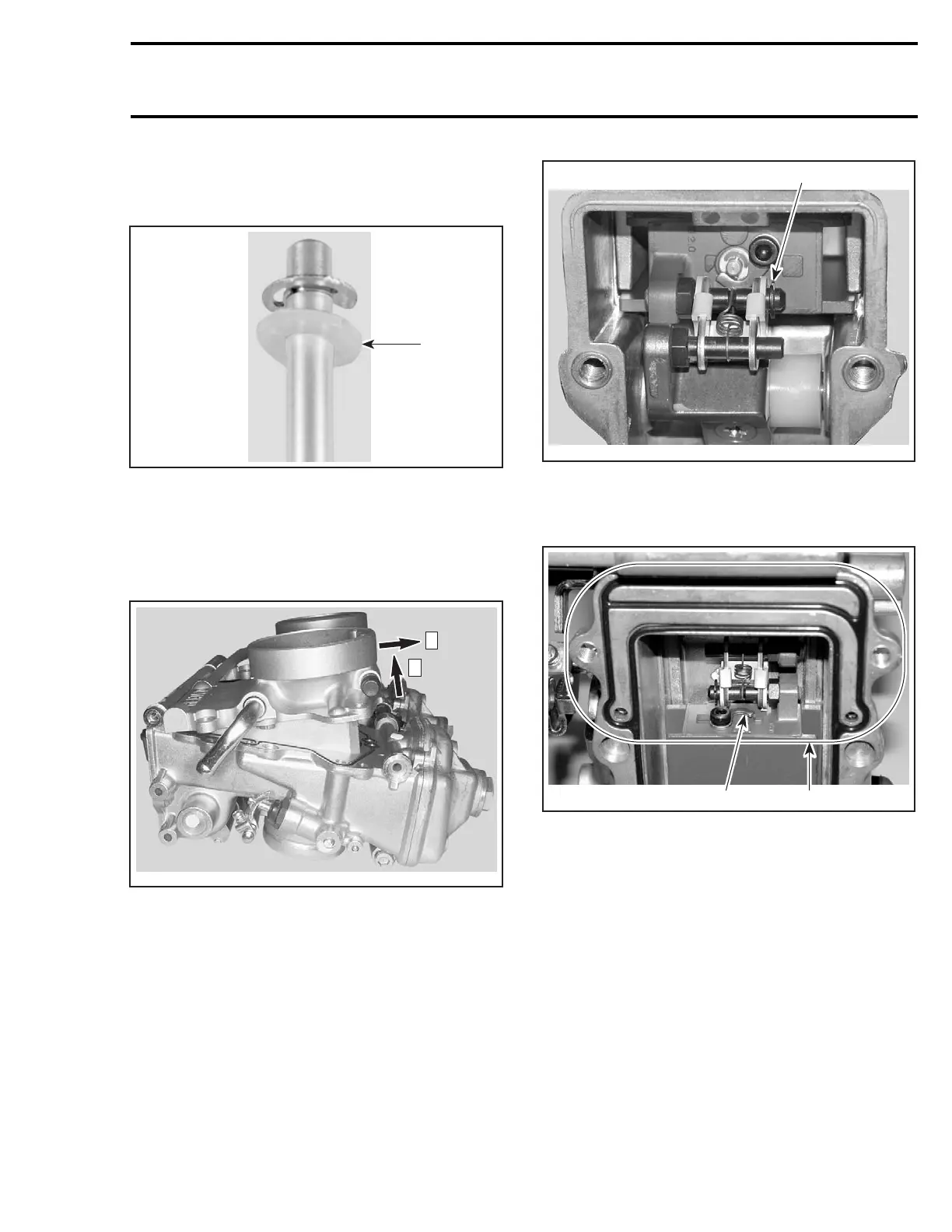

Turn dual carburetor ass’yupsidedowntofree
needle no. 10. Take care not to loose plastic
washer no. 11 under needle circlip no. 12.
1
A32C3RA
1. Plastic washer
Unscrew throttle slide cover screws no. 13.
Open throttle 3/4 wide and keep that opening.
Lift throttle slide covers bottom first until they are
free from carburetor bodies. Then, slide them out.
2
A32C2OA
1
1. Lift bottom first
2. Slide out
Remove circlip no. 14 retaining throttle slide.
1
A32C6TB
1. Circlip
At throttle slide assembly, needle retainer must
face carburetor body.
1
A32C70A
2
1. Needle retainer
2. Ensure O-ring gasket is properly seated in nipple area
After inserting throttle slide cover in place and
before installing screws, ensure O-ring gasket is
properly seated in its groove especially in the area
around vent nipple. See illustration above.
CARBURETOR ADJUSTMENTS
Adjustments should be performed following this
sequence:
– pilot screw adjustment
– carburetor synchronization and throttle slide
height (preliminary idle speed adjustment)
– throttle cable adjustment
– choke cable adjustment
mmr2004-Rev 149

Ski-Doo REV Series Specifications

General

Chassis	REV
Track Width	15 in
Fuel Capacity	10.6 gal
Seating Capacity	1
Reverse	Available on most models
Electric Start	Available on most models
