Ski-Doo REV Series Shop Manual

Section 06 TRANSMISSION
Subsection 02 (DRIVE PULLEY)

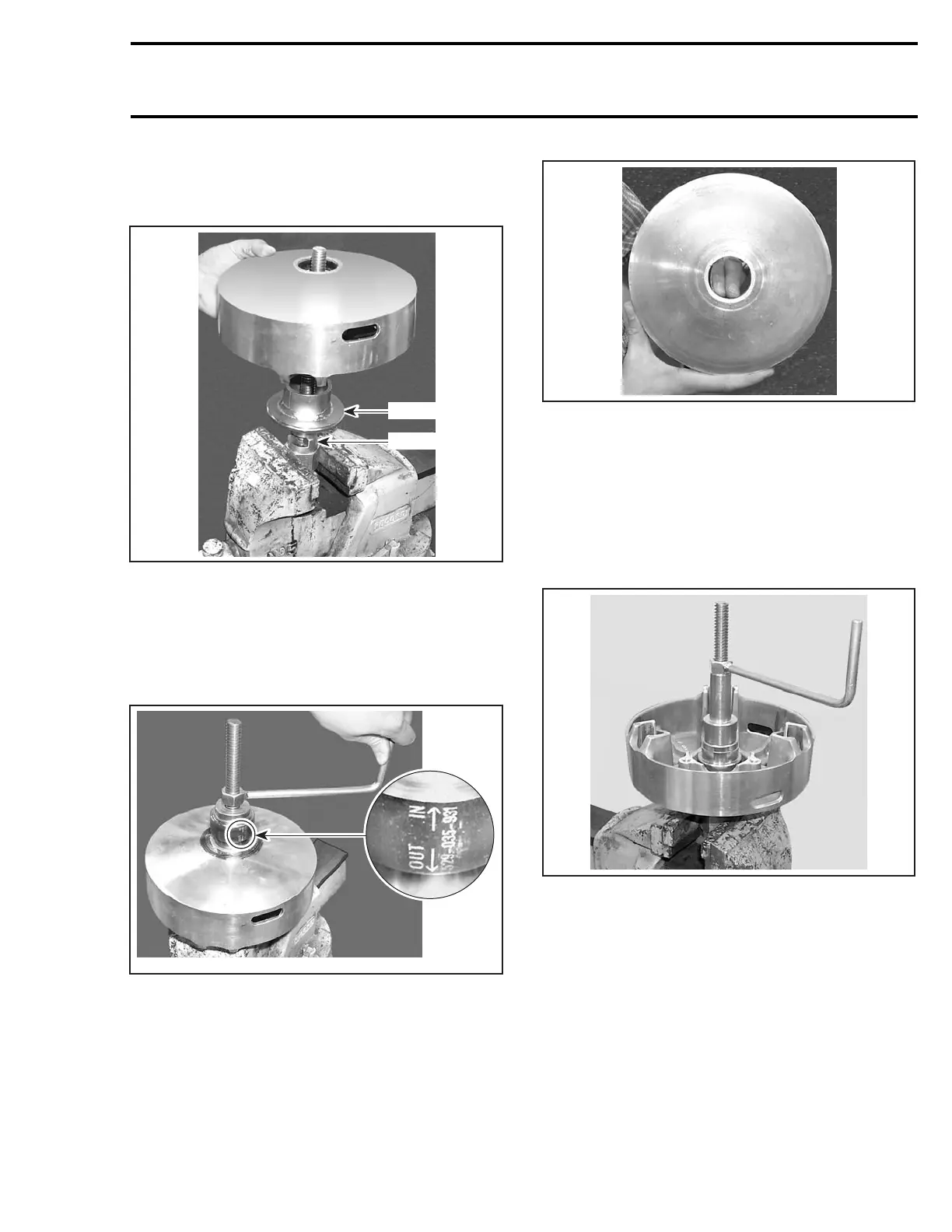

Secure the spring compressor (P/N 529 035 524)
in a vise. Mount tool (P/N 529 031 200) and the
sliding half ass’yonit.
A32D2UA
529 031 200
529 035 524
Use tool (P/N 529 035 931) to press out old bush-
ing.
NOTE: Make sure to use the tool (529 035 931)
as marked; to remove the bushing press using
thesidemarked“OUT”, as shown below in the
picture.
A32D2VA
Use a soft sand paper to clean sliding half bushing
mounting surface.
A32D2WA
Clean sliding half bushing mounting surface with
pulley flange cleaner (P/N 413 711 809).
To install a new bushing, secure the spring com-
pressor (P/N 529 035 524) in a vise and mount the
sliding half ass’y. Insert the bushing from inner
side of sliding half ass’y.
Mount tool (P/N 529 035 931) with side marked
“IN” to press in a new bushing.
A32D2XA
NOTE: Make sure that the bushing is well seated
on the sliding half ass’y.
mmr2004-Rev 219
