Ski-Doo REV Series Shop Manual

Section 09 STEERING/FRONT SUSPENSION
Subsection 01 (STEERING SYSTEM)
A33G1CA
1
2
1. Opening here
2. Extension against stopper

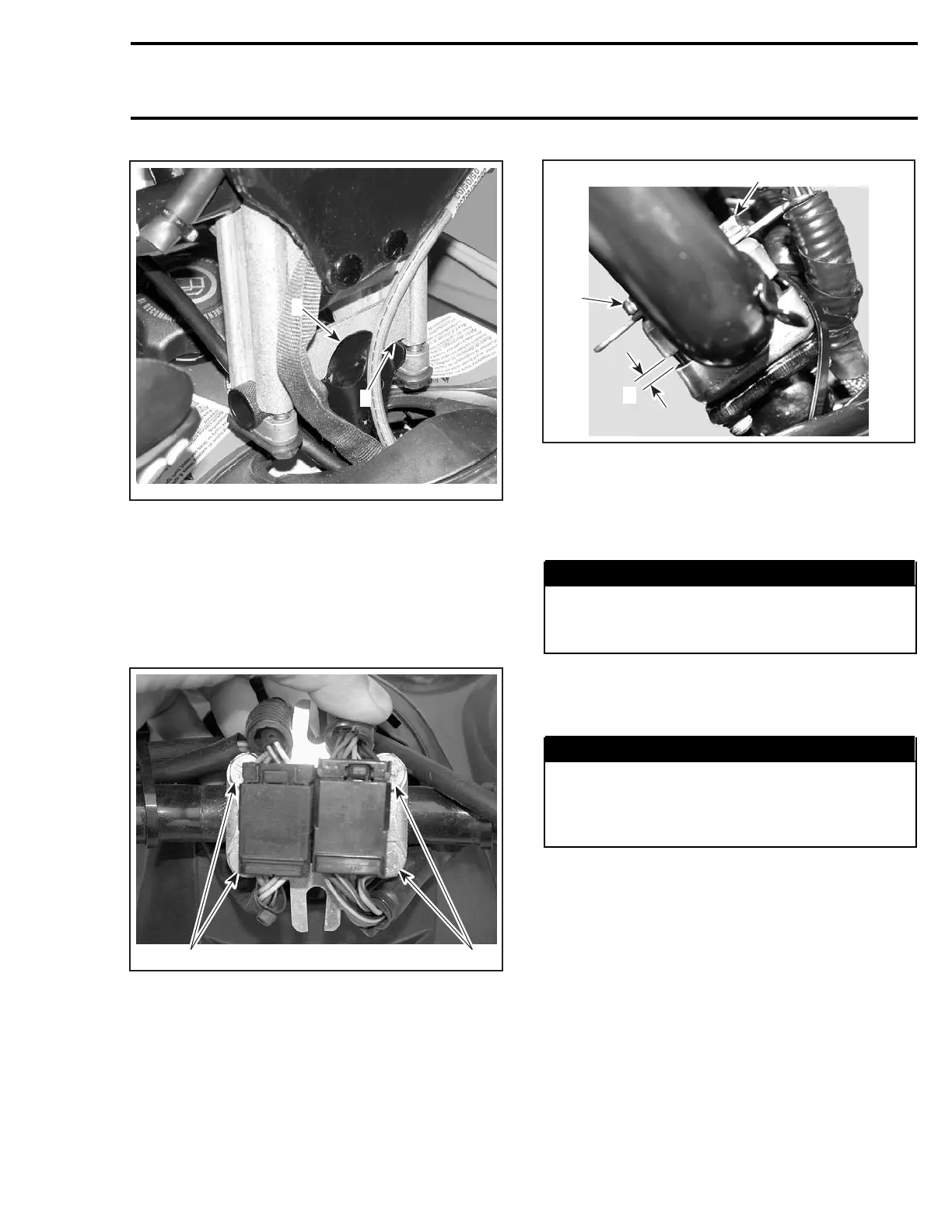

Handlebar Position Adjustment
The handlebar position can be adjusted to suit
driver’s preferences.
Loosen all 4 bolts no. 4 retaining handlebar to
steering column.
1
A33H16A
1
1. Four bolts
Move handlebar to the desired position. Torque
all 4 bolts no. 4 to 25 N•m(18lbf•ft).
1
1
A33G0GA
A
1. Torque to 25 N•m(18lbf•ft)
A. Equalgapallaround
CAUTION: Tighten the bolts equally in a criss-
cross sequence and ensure there is an equal
gap on each side of the clamps no. 2.

WARNING
Avoid contact between the brake handle and
the windshield by NOT adjusting the handle-
bar too high.
Readjust throttle lever housing no. 21 and switch
housing accordingly to optimal angle so that you
will not need to release your grip to operate levers.

WARNING
Adjust with vehicle at rest in a safe place. Se-
curely retighten all fasteners. Never rotate
throttle lever to operate with fingers instead
of thumb.
Readjust windshield for proper fit with console.
Refer to WINDSHIELD ADJUSTMENT below.
Windshield Adjustment
The windshield can be adjusted to properly fit with
console.
Before adjusting windshield, make sure it is in-
stalled on the proper bracket slots according to
steering column position. See photos below.
Slots in brackets allow different windshield po-
sitions. Move windshield to fit with console.
Retighten4nutsto5N•m(44lbf•in).
Check that windshield does not touch console af-
ter adjustment.
mmr2004-Rev 329

Ski-Doo REV Series Specifications

General

Chassis	REV
Track Width	15 in
Fuel Capacity	10.6 gal
Seating Capacity	1
Reverse	Available on most models
Electric Start	Available on most models
