Ski-Doo REV Series Shop Manual

Section04ENGINE
Subsection 06 (REWIND STARTER)

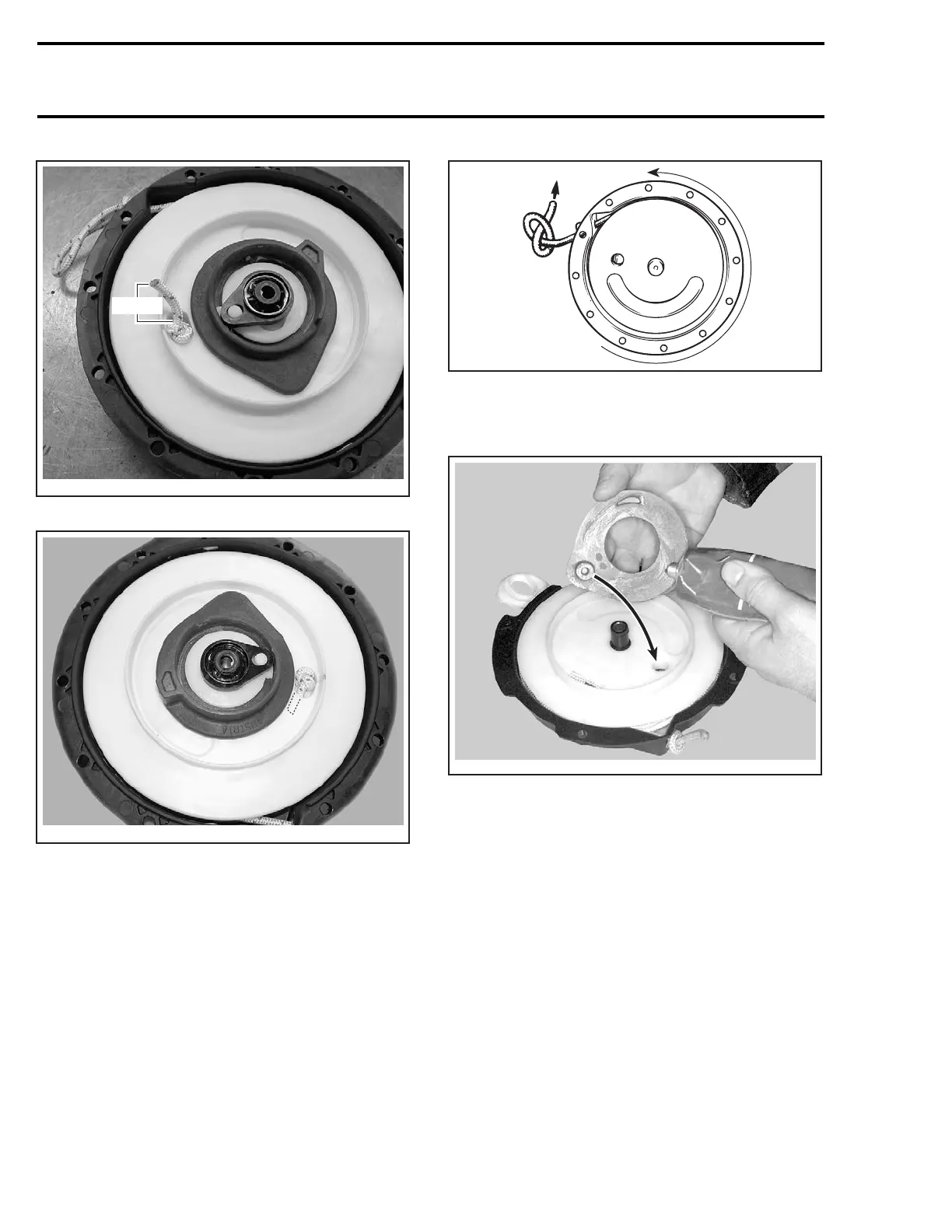

A32C6HA
25 mm
FREE PORTION
Callout
A32C6IA
FREE PORTION INSERTED INTO SHEAVE
Lubricate housing post with Molykote PG 54 . In-
stall sheave.
To adjust rope tension:
Wind rope on sheave and place rope sheave into
starter housing making sure that the sheave hub
notch engages in the rewind spring hook.
Rotate the sheave counterclockwise until rope
end is accessible through rope exit hole. This will
give 1/2 turn of preload.
Pull the rope out of the starter housing and tem-
porarily make a knot to hold it.
A32C6BA
TYPICAL
Lubricate pawl no. 9 with Molykote PG 54
(P/N 420 899 763) then install over rope sheave.
A32C6CA
Lubricate pawl lock no. 8 with Molykote PG 54
(P/N 420 899 763). Install over pawl.
142 mmr2004-Rev
