Ski-Doo REV Series Shop Manual

Section 06 TRANSMISSION
Subsection 04 (PULLEY DISTANCE AND ALIGNMENT)

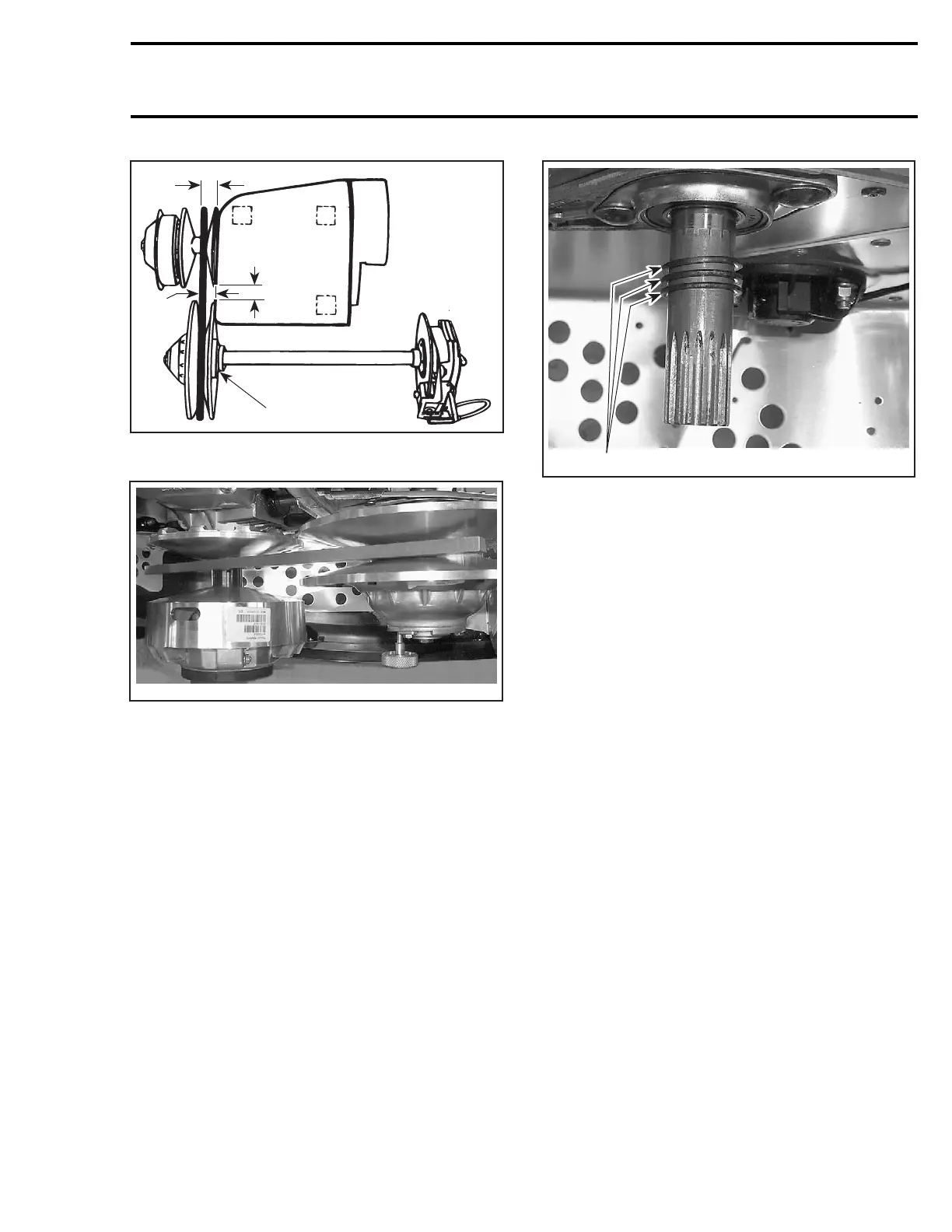

A33D0KA
Y
X
Z
1
TYPICAL
1. Contact
A33D0IA
ALIGNMENT BAR IN PULLEYS
NOTE: Prior to performing pulley adjustment,
loosen torque rod and lock nut as mentioned
aboveintheGENERALPROCEDURE.
Pulley Distance Adjustment Method
Pulley distance adjustment cannot be done on
REV Series models.
Pulley Alignment Method
Remove driven pulley and add or remove spacer(s)
as required to obtain the specified alignment.
1
A33D0JA
1. Spacers
NOTE: After alignment, hand tighten torque rod
so it slightly contacts engine crankcase. Do not
over tighten, it will disalign pulleys.
mmr2004-Rev 237
