Ski-Doo REV Series Shop Manual

Section 08 REAR SUSPENSION
Subsection 02 (SC-10 III SUSPENSION)
A32F12A

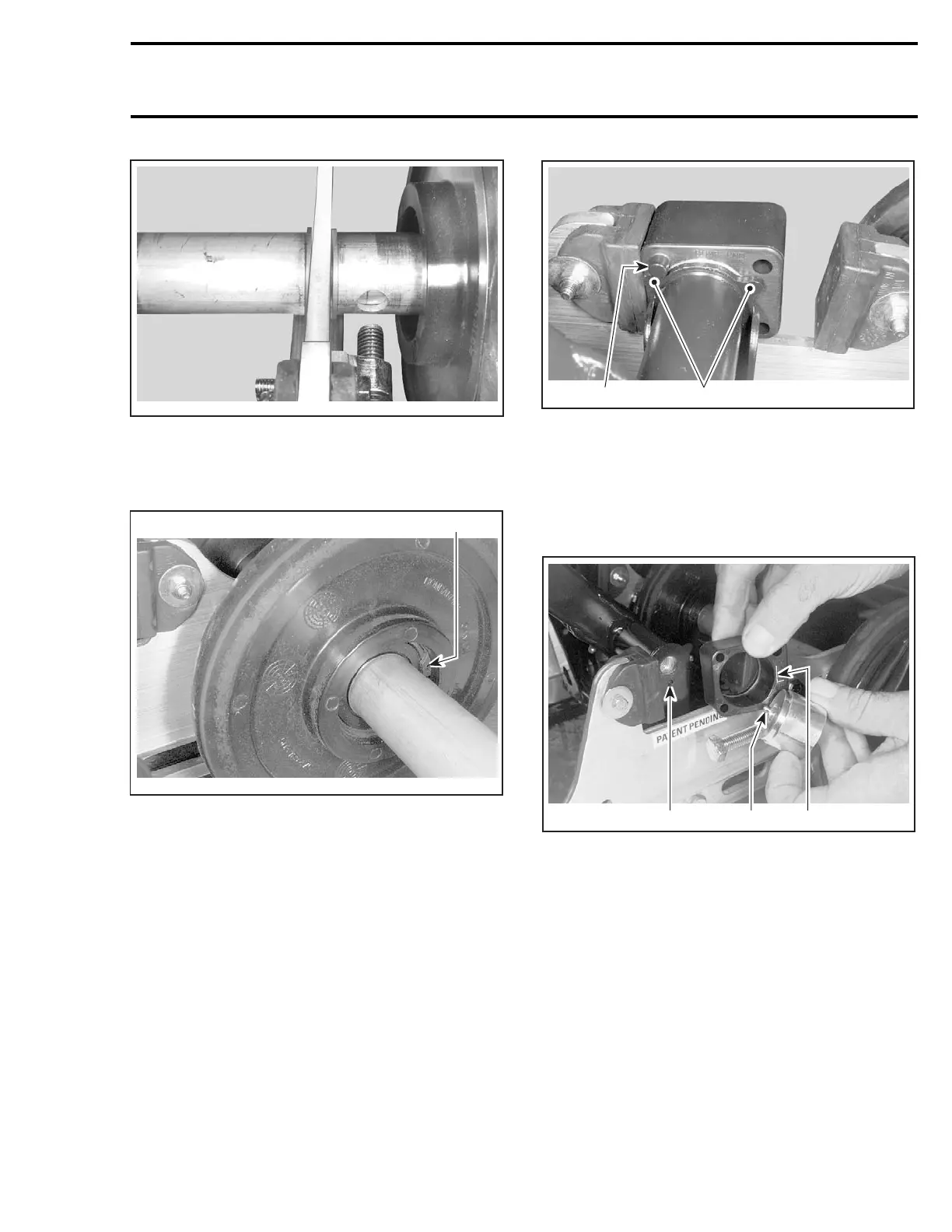

Center Rear Wheel and Top Idler Wheels
At installation on center rear wheel no. 13 and top
idler wheels no. 14, circlip must face inner side.
1
A32F13A
1. Circlip facing inner side
Block
Both blocks no. 17 areidentifiedRorL(rightor
left), see second following photo. At installation,
make sure to install proper block on proper side.
Also, note that protrusion must be positioned
above stoppers.
1
A32F15A
2
1. Protrusion
2. Stoppers
Dowel Pin and Block Guide
Dowel pin no. 15 must exceed block guide no. 16
by2to2.3mm(.079to.091in).
At installation, insert dowel pin into pivot arm hole.
2
A32F14A
13
LEFT SIDE SHOWN
1. Dowel pin
2. Pivot arm hole
3. «L» identification for left side
Front Shock and Spring Stopper
Use shock spring remover (P/N 529 035 504) and
put it in a vise. Mount shock no. 8 in it and turn
shock so that spring coils matched spring com-
pressor.
Close and lock bar. Adjust handle horizontal by
changing position of clevis pin.
Push down on handle until it locks. Remove
spring stopper no. 9 then release handle.
mmr2004-Rev 299
