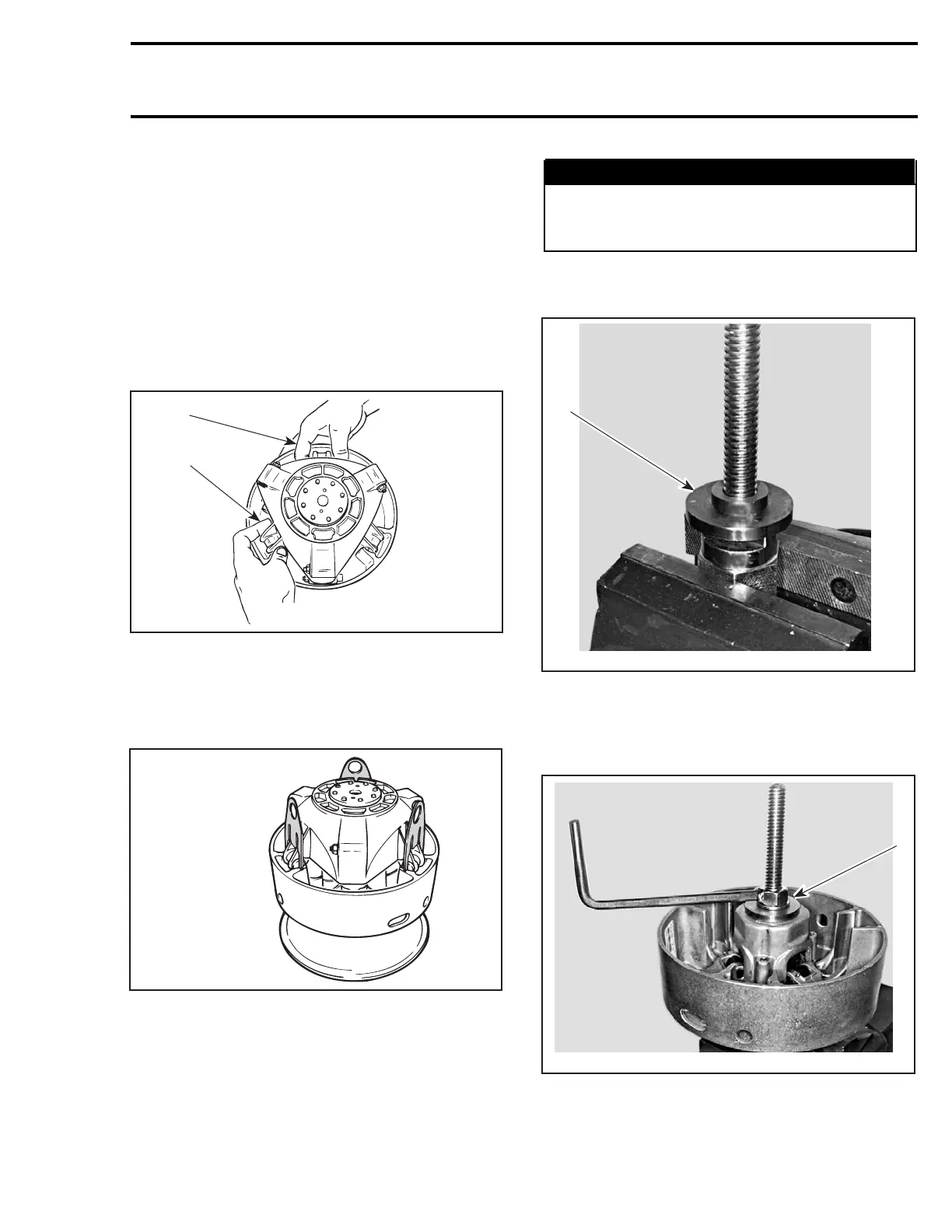

Section 06 TRANSMISSION
Subsection 02 (DRIVE PULLEY)
32, Cushion Drive
CAUTION: Do not disassemble cushion drive.
Governor cup and cushion drive are factory
balanced as an assembly.
25,29, Slider Shoe and Governor Cup
Carefully lift governor cup until slider shoes come
at their highest position into guides.
Hold a slider shoe set then carefully lift its housing
and remove slider shoes. Proceed the same way
for other housings lifting one at a time.
A16D02A
1
2
1. Hold slider shoes
2. Lift one housing at a time
NOTE: To ease disassembly, forks (P/N 529 005
500) should be used to hold slider shoes prior to
removing governor cup.
A16B02A
529 005 500
19, Spring Cover Ass’y
It is pushed by clutch spring pressure.
WARNING
Clutch spring is very strong. Never attempt
to remove spring cover without the recom-
mended tools.
Use spring compressor (P/N 529 035 524).
Install support guide.
1
A03D3EA
1. Support guide
Install sliding half then a second support guide.
These support guides will prevent bushing dam-
ages.
A03D3FA
1
1. Support guide
mmr2004-Rev 217
