Section 08 REAR SUSPENSION

Subsection 01 (SC-10 SUSPENSION)

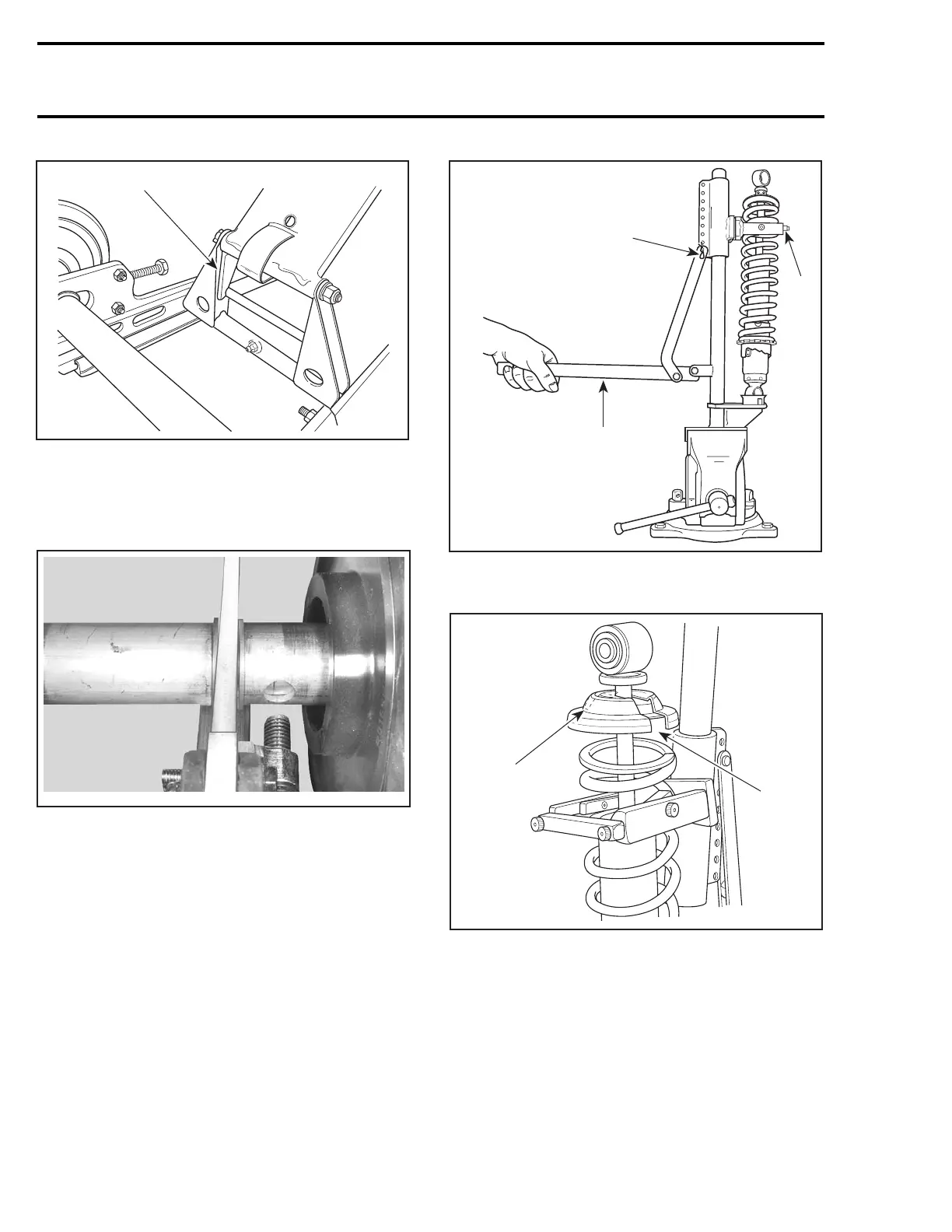

A03F13A

1. Stroke limiter on rear side

Outer Bushing

At installation, hole of outer bushing no. 10 must

face adjustment screw.

A32F12A

Front Shock, Spring Stopper and Cap

Use shock spring remover (P/N 529 035 504) and

put it in a vise. Mount shock no. 12 in it and turn

shock so that a spring coil rests against spring

compressor jaw.

Close and lock bar. Place handle horizontally by

changing position of clevis pin.

Push down on handle until it locks. Remove

spring stopper no. 13 and cap then release han-

dle.

A01B4LA

1. Clevis pin

2. Bar

3. Handle placed horizontally

A03F12A

1. Cap opening

2. Spring stopper opening

Stopper Strap

Inspect strap no. 20 forwearorcracks,boltand

nut for tightness. If loose, inspect hole for defor-

mation. Replace as required. Make sure it is at-

tached through proper hole from the end. Torque

nutto7N•m(62lbf•in).

290 mmr2004-Rev

Ski-Doo REV Series Shop Manual
