Ski-Doo REV Series Shop Manual

Section 08 REAR SUSPENSION
Subsection 02 (SC-10 III SUSPENSION)

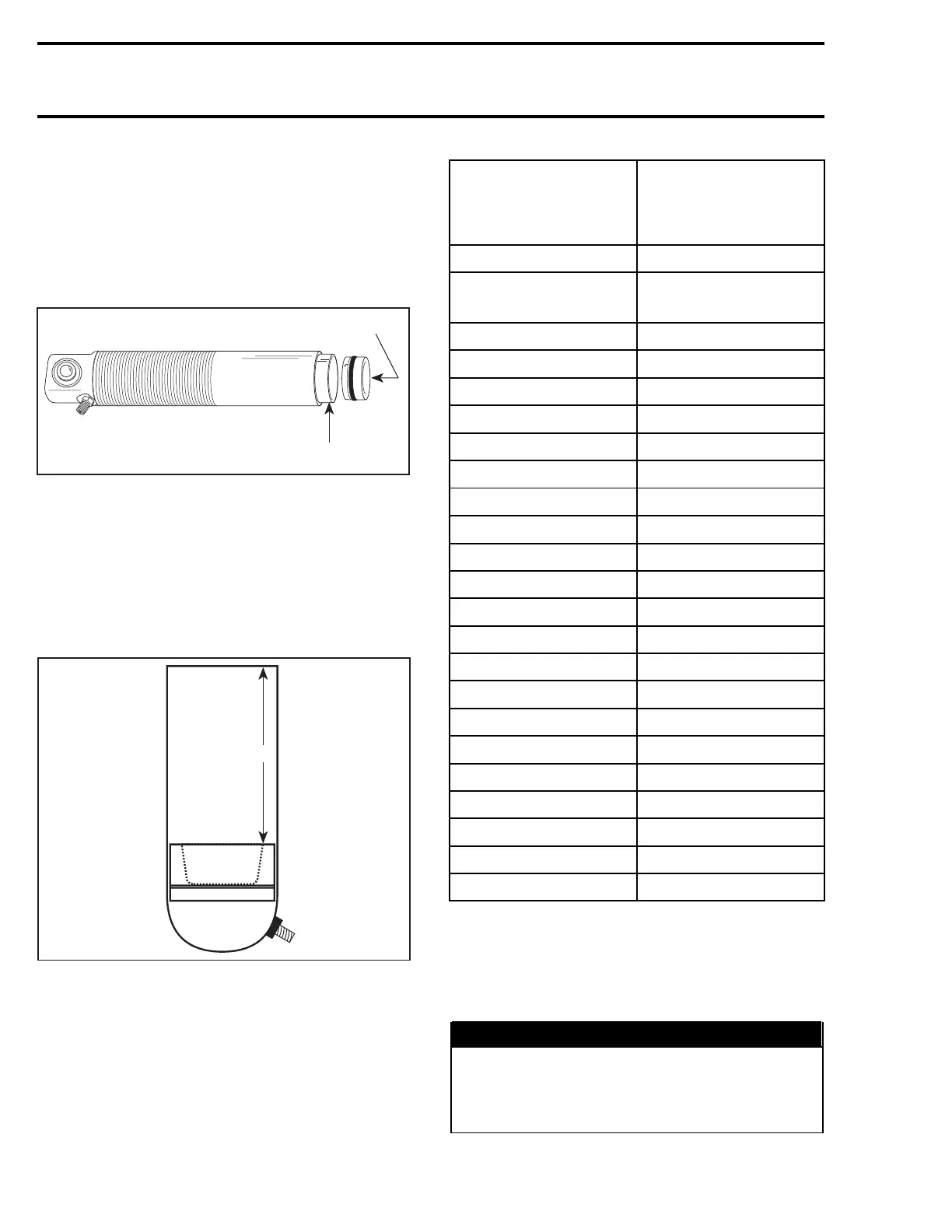

If floating piston has been removed, reinstall float-
ing piston into damper body (ensure that valve
core has been removed). Use Molykote G-n paste
(P/N 711 297 433) to ease O-ring past damper
bodythreadswithfloatingpistonguide.
CAUTION: Failure to install IFP correctly could
result in shock damage.
1
2
A06F14C
1. Push (slowly) by hand
2. Floating piston guide
NOTE: Lubricate inside of piston guide with
Molykote G-n paste (P/N 711 297 433).
Install floating piston to the proper depth refer to
following the table.
On all HPG take apart shocks, the floating piston
is installed hollow side up.
A27F0FD
A
A. Installation distance for floating piston installation
SHOCK P/N
INSTALLATION
DISTANCE OF
FLOATING PISTON
mm
505 070 903 44.5
505 070 904
44.5
505 070 937 44.5
505 070 938 44.5
503 190 016 128
503 190 247 128
503 190 289 130
503 190 008 132
503 190 019 132
503 190 201 132
503 190 015 134
503 190 017 134
503 190 226 134
505 070 753 176
503 190 007 185
503 190 205 185
503 190 290 185
505 070 966 186
505 071 111 186
503 190 020 187
503 190 024 187
503 190 013 188
503 190 248 188
NOTE: Ifthefloatingpistonisinstalledtoofarinto
the damper body, light air pressure through valve
(with core removed) will move piston outward.
NOTE: Reinstall tire valve core after IFP has been
installed at correct height and before adding oil.

WARNING
Whenever using compressed air exercise ex-
treme caution, cover damper opening with
shop cloth to reduce chance of possible in-
jury.
306 mmr2004-Rev
