Ski-Doo REV Series Shop Manual

Section 08 REAR SUSPENSION
Subsection 04 (TRACK)
Restart engine, rotate track slowly and recheck
alignment. If the satisfactory alignment is
achieved, then tighten the idler wheel retain-
ingscrewsto48N•m(35lbf•ft). Reinstall the
wheel caps.
Track Cleat
Removal
– Raise rear of vehicle off the ground and lift snow
guard then hand rotate track to expose a cleat
to be replaced.
– Use track cleat remover (P/N 529 028 700) for
all models.
Installation
– Place new cleat in position on the track and
using narrow track cleat installer (P/N 529 008
500) bend cleat then push tabs into rubber.
– Re-open installer, then position cleat tabs on
open end of tool and squeeze tabs until they are
indentedinrubber.

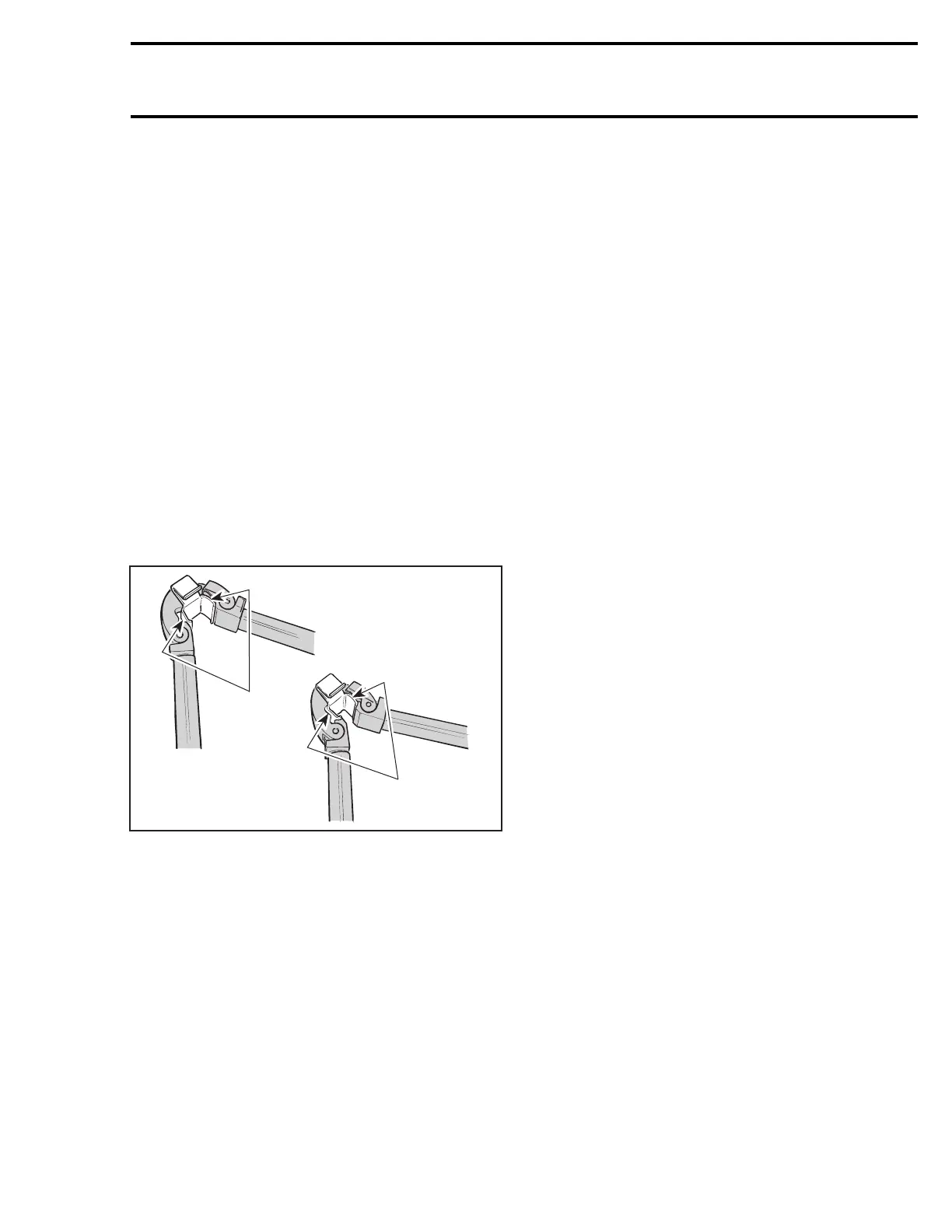

A01B4UA
1
2
TYPICAL
1. First step
2. Second step (to push tabs into rubber)
