Maintenance Stylus Tip Replacement (Touch Screen)
226
19.4 Stylus Tip Replacement (Touch
Screen)
Periodically the capacitive stylus tip may need to be replaced. There are two styles
of removable stylus tips.
Style “A” (Figure 19-5) - To remove, unthread the tip counterclockwise. To install a
new stylus tip, thread it on clockwise until seated.
Style “B” (Figure 19-6) - To remove, unthread the collar counterclockwise. To
install a new stylus tip, remove the old tip from the shaft and install a new tip, then
thread the collar on clockwise until seated.
Stylus tips are available as optional equipment (contact your sales representative to
order).
Do not overtighten the stylus tip.

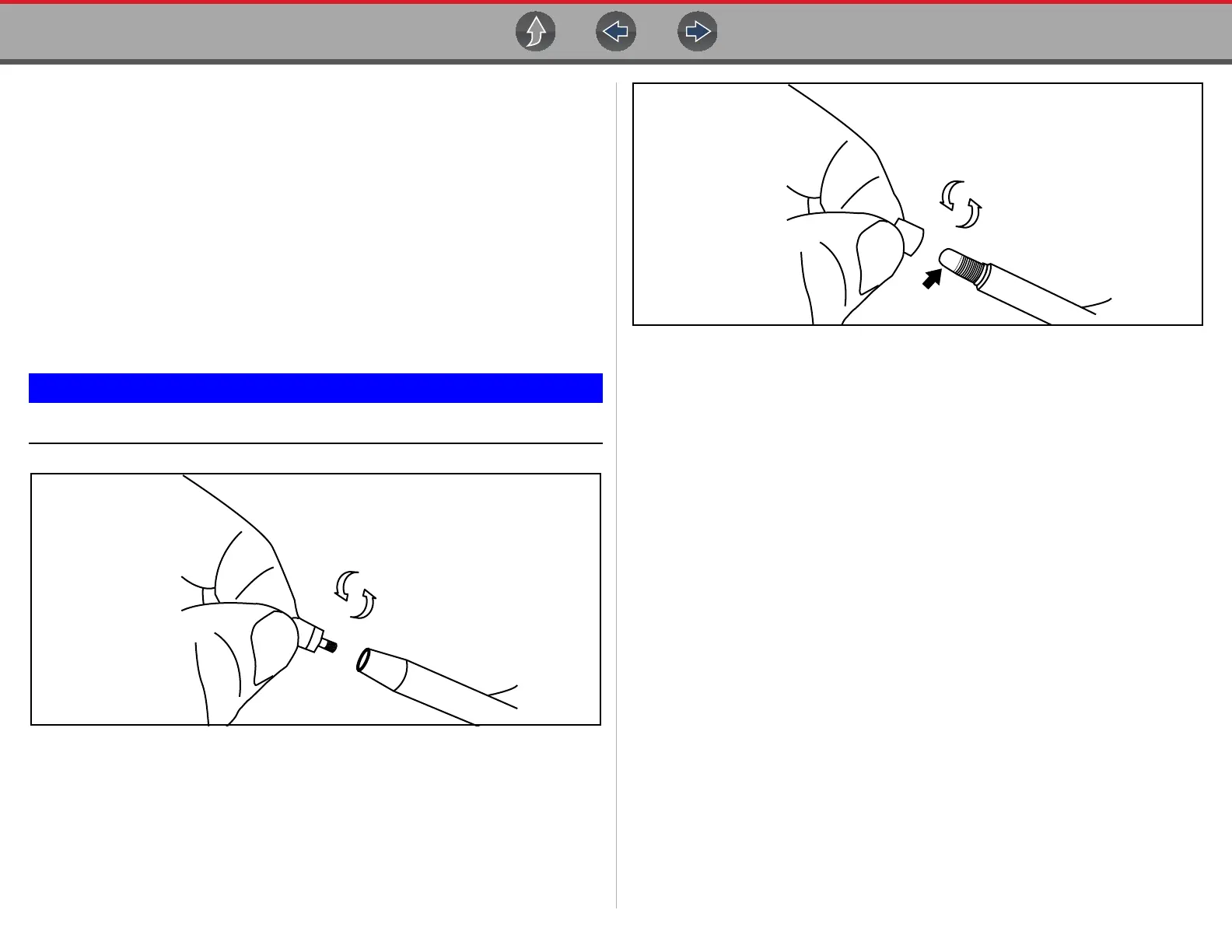

Figure 19-5 Replacing stylus tip - (Style A)
Figure 19-6 Replacing stylus tip - (Style B)
