b Display
Six types of display mode can be selected, according to the
information to display. The display mode is switched using
the display mode buttons on the cross-point pad.
The following information can be shown on the display.
• Settings of buttons on the 1st row to 4th row (signal
name, bus name, register name, or function name
assigned to the button)
• Macro register name of macro attachment assigned to
the 1st to 4th row buttons
• When the [SHIFT] button function is set, “SHFT”
appears on the display. When the shifted state is selected,
“SHFT” is highlighted in reverse video, and the button
information also toggles to show the shifted display.
• When the [SIDE FLAG] button function is set, “SIDE
FLAG” appears on the display.
The information shown in each display mode is configured
in the Setup menu. The display can also be subdivided (top
and bottom) to display two pieces of information.
For details, see “Setting the Display Mode of the Cross-
Point Control Block/AUX Bus Control Block” (page 397).
c Cross-point indicators
When lit, this indicates the source color of the video signal
assigned to buttons on the 3rd row.
If a signal cannot be selected, because a signal is not
assigned or the inhibit setting is set, the indicator is not lit.
You can set whether to enable the cross-point indicator in
the Setup menu.
For details, see “Setting cross-point indicators”
(page 396).
d Cross-point pad
Contains button assignments for functions used for cross-
point operations, status display, and so on.
You can assign functions to each button in the Setup menu.
You can set up 14 pages of settings and assign an arbitrary
name to each M/E and PGM/PST bank.
For details, see “Configuring the Cross-Point Pad”
(page 396).
Use the following buttons to navigate the cross-point pad
pages.
• [HOME] button: Displays the HOME page configured
in the Setup menu.
• [<<] button: Displays the previous page (page name
below <<).
• [>>] button: Displays the next page (page name below
>>).
• Button assigned with page recall function: Displays the
page configured in the Setup menu.
If the current page name indicator button is pressed, or the
[<<] button and [>>] button are pressed simultaneously,
the cross-point pad changes to page selection display
mode, and you can press a button, turning it on, to select
the page to display. To exit page selection display, press
the [EXIT] button.
The following functions can be assigned to the cross-point
pad of the cross-point control block.

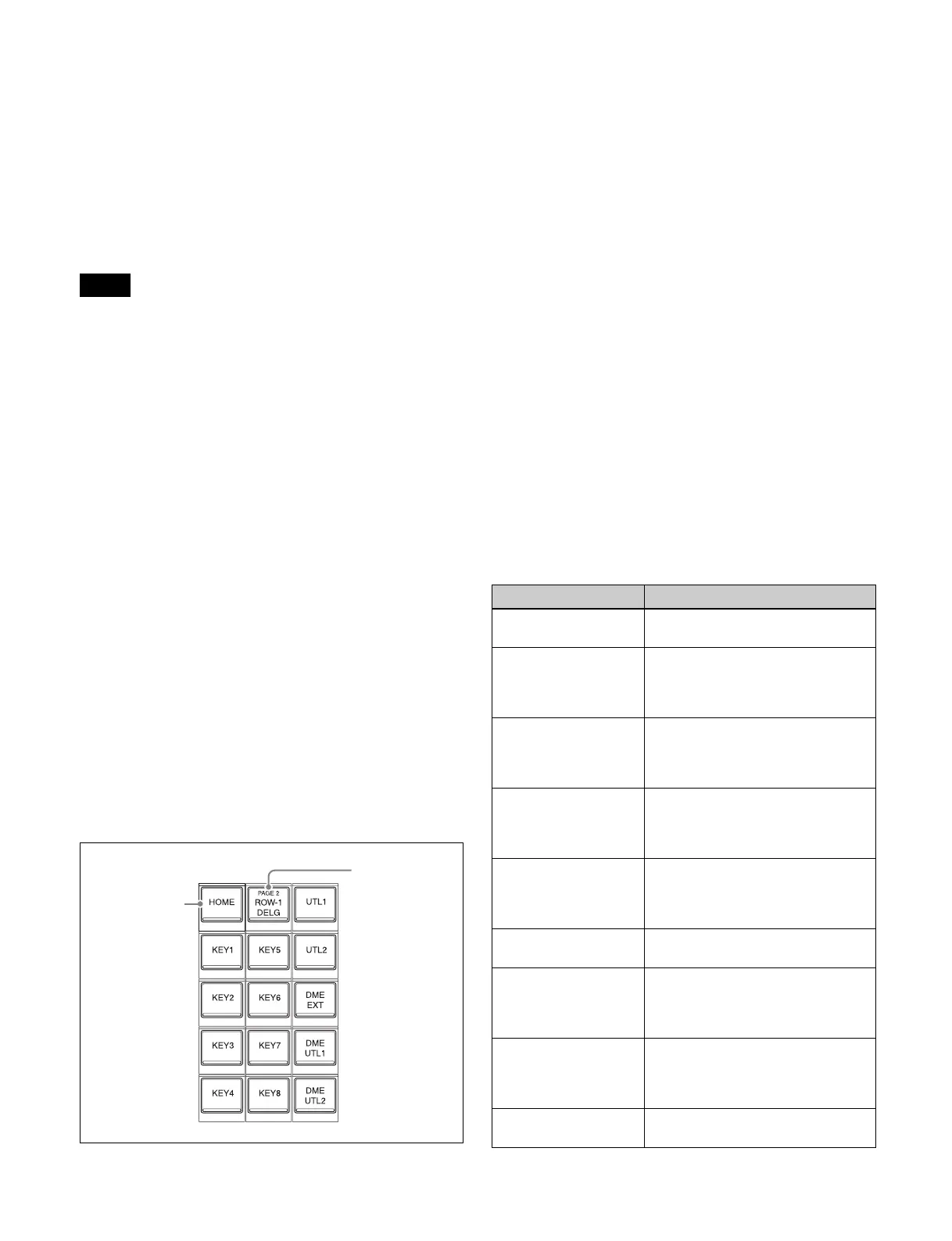

Notes
Current page
name indicator
button
HOME button
Button name
a)
Description
HOME Displays the HOME page of the
cross-point pad.
PREV
(<< XXX)
Displays the previous page of the
cross-point pad.
XXX = page name (up to 12
characters)
NEXT
(>> XXX)
Displays the next page of the cross-
point pad.
XXX = page name (up to 12
characters)
Row-n Assign Status
(XXX)
Displays the bus/function names
assigned to the 1st row to 4th row.
n = 1 to 4
XXX = bus/function name
Current Page Status
(PAGE 1 XXX to
PAGE14 XXX)
Displays the name of the currently
displayed page.
XXX = page name (up to 12
characters)
M/E Status
(P/P, M/E1 to M/E5)
Displays the name of the currently
set bank.
Disp Mode Status
(DISP: XXX)
Displays the name of the currently
set display mode.
XXX = display mode name (up to
12 characters)
Macro Reg Status
(MACRO: XXX)
Displays the name of the currently
recalled macro register.
XXX = macro register name (up to
8 characters)
PRE MACRO Sets macro attachment in pre
macro mode.
