105

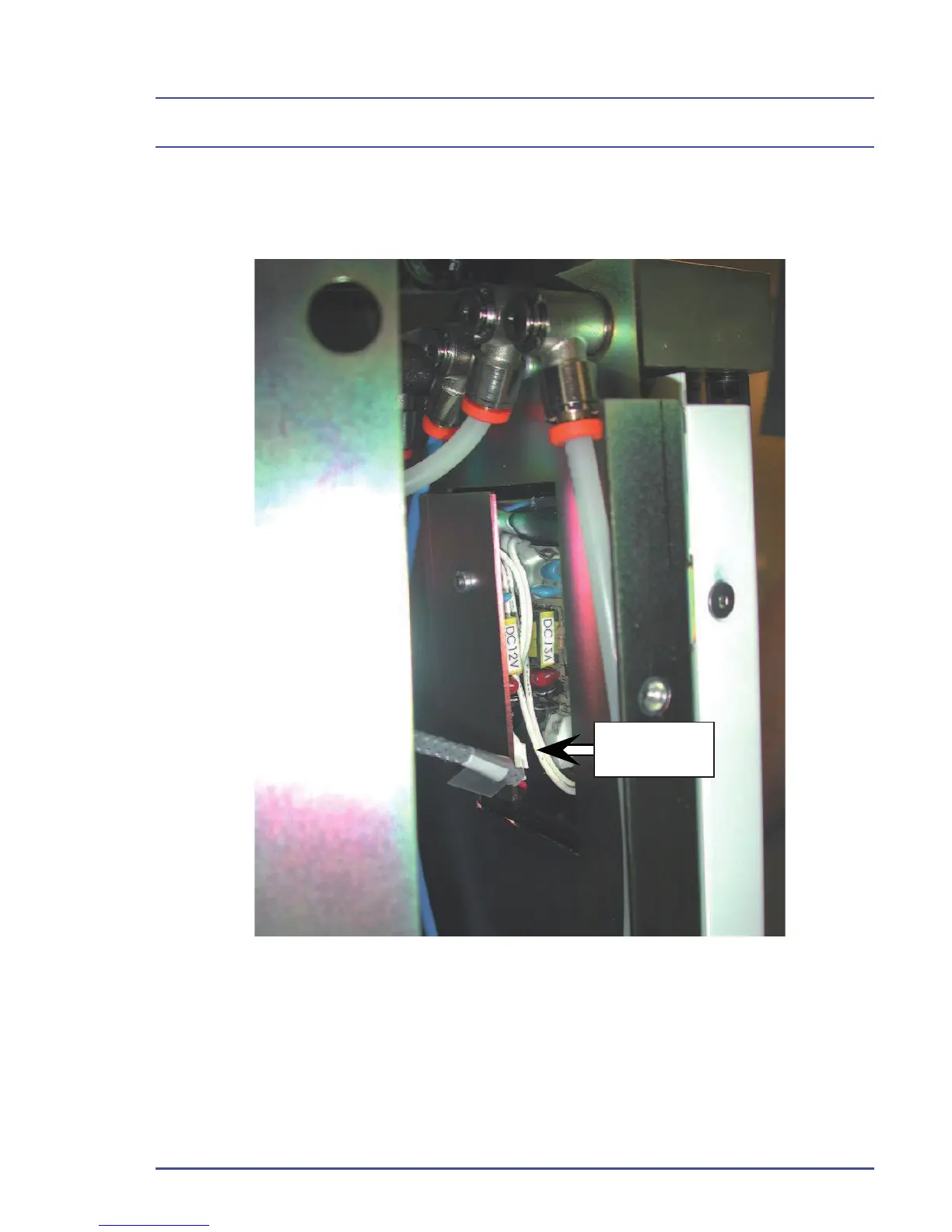

Figure 55 - BL1 Connector Location
BL1
Connector
3. Carefully disconnect the power supply cable from the back light inverter
on the rear of the fl ow meter (marked BL1 in Figure 55).
4. Mark the positions of the pipes entering the fl ow meter, and remove them
from their fi ttings.
5. Remove the fl ow meter from the machine.
6. Replacement is the reverse of this procedure.
Detailed Repair Procedures
