5.19.4 Removal of BAV Controller (FR101027)
1. Disconnect the connector on the left, as shown, and on the lower right.
Disconnect the two wires to the pressure switch.
2. Disconnect the ribbon wires at the other end and not from this board.
3. Remove the two nylon nuts in the middle at either side.
4. Disconnect the four corner quick clips.

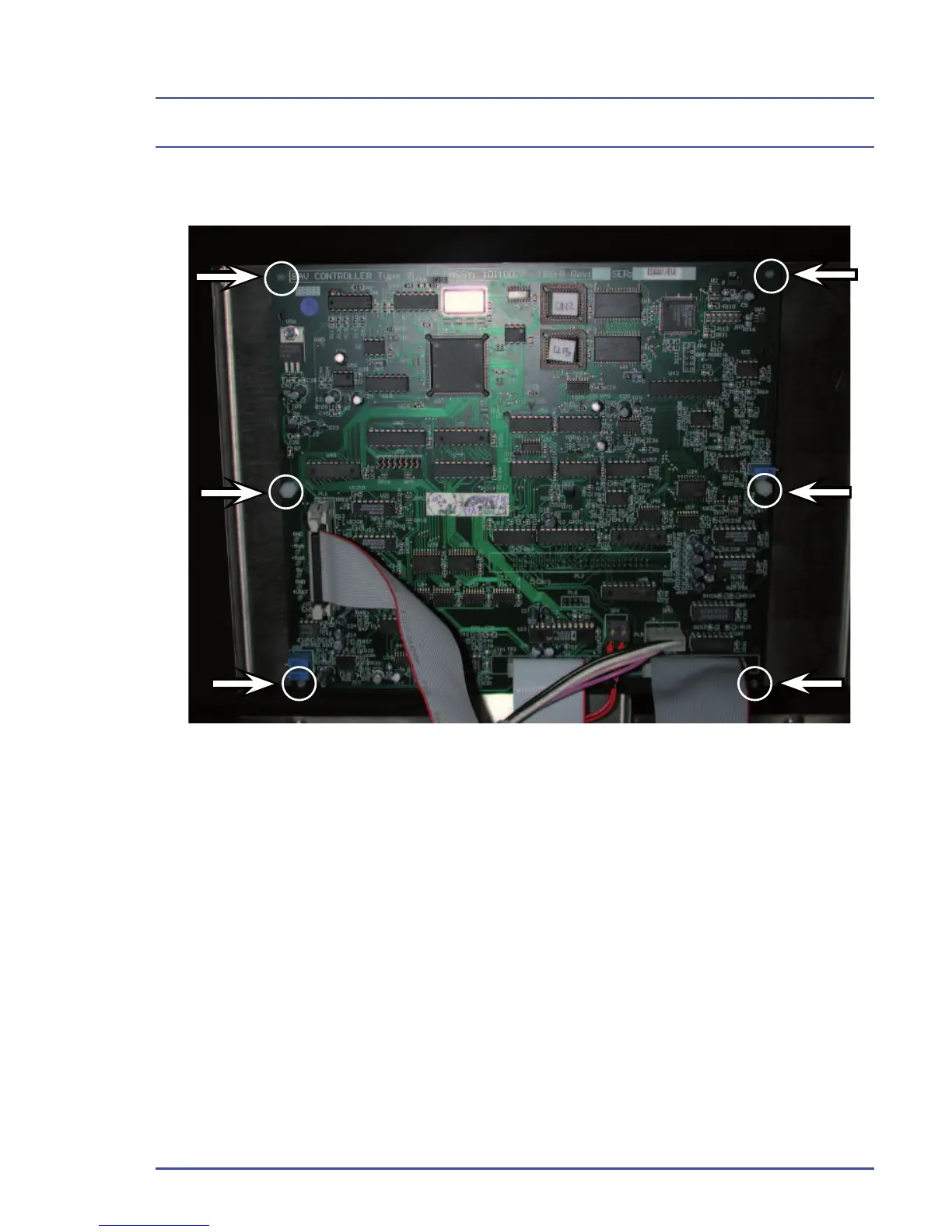

Figure 137 - View of BAV Controller
Detailed Repair Procedures
