156

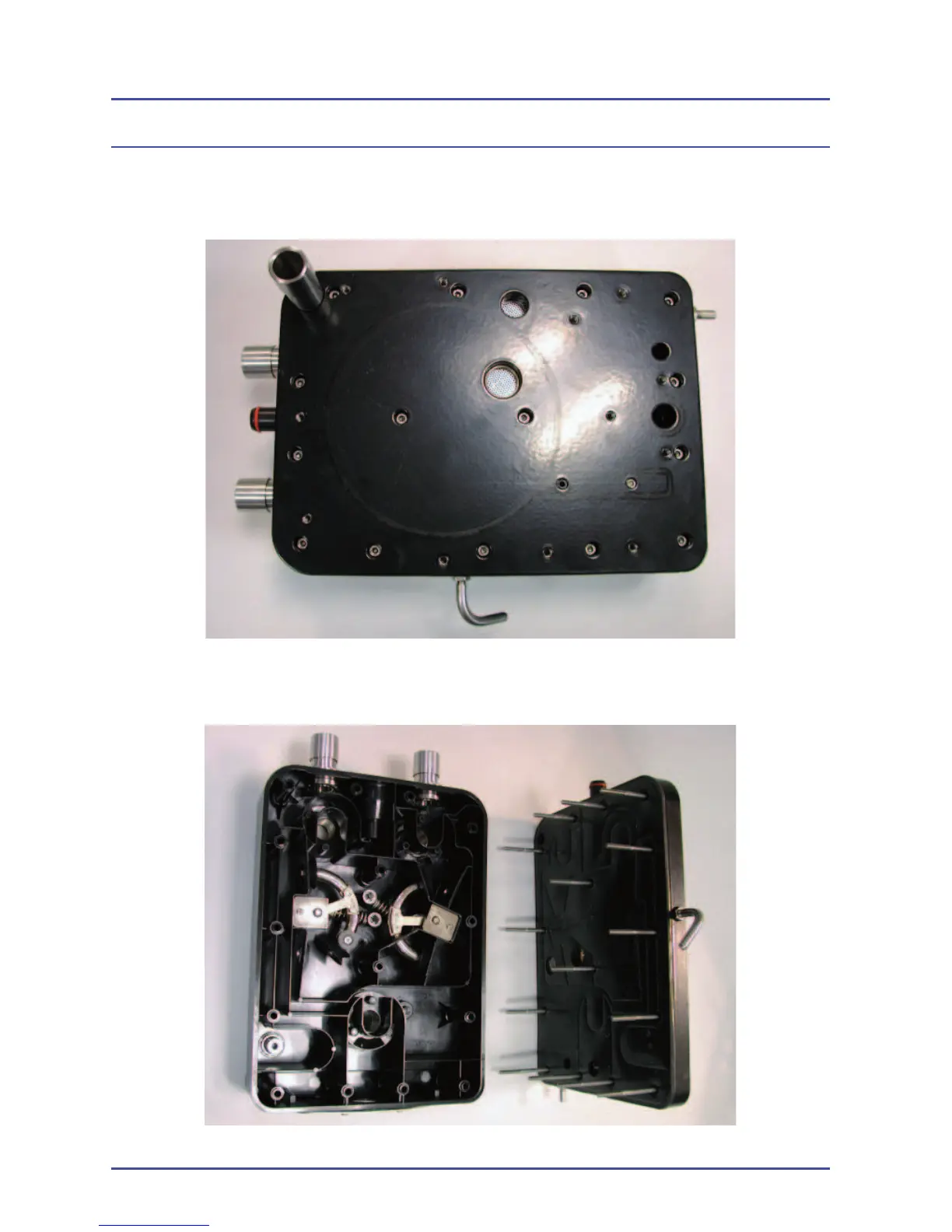

Figure 116 - Absorber Molding 03
Figure 117 - Absorber Molding 04
2. Remove the gasket to expose the fi fteen M4 screws which hold the top
molding to the center plate.
Detailed Repair Procedures
