Detailed Repair Procedures
5.11 ON/OFF Switch (PN FR142028)
Part number FR142028 is already assembled. The following instruction shows
the confi guration of the switch should disassembly be required.
1. Ensure the machine is powered off and that no pipelines or cylinders are
connected to the machine.
2. Remove the front cover of the machine to gain access to the switch.
3. Fit the two microswitches to the switch mounting bracket.

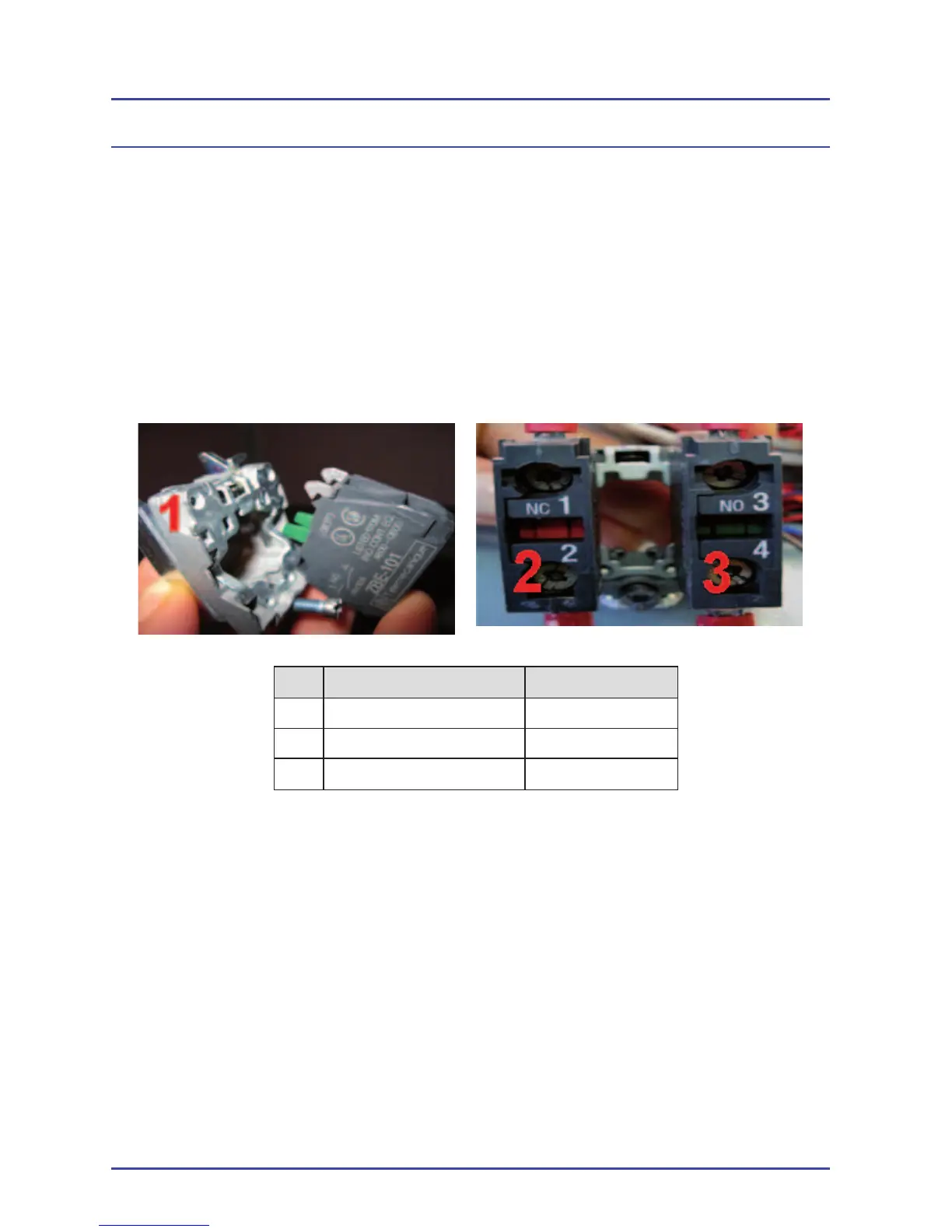

Figure 101 - Microswitch Components
Description Part Number
1 Switch Bracket 214-1091-00
2 NC Microswitch 260-0365-00
3 NO Microswitch 260-0364-00
