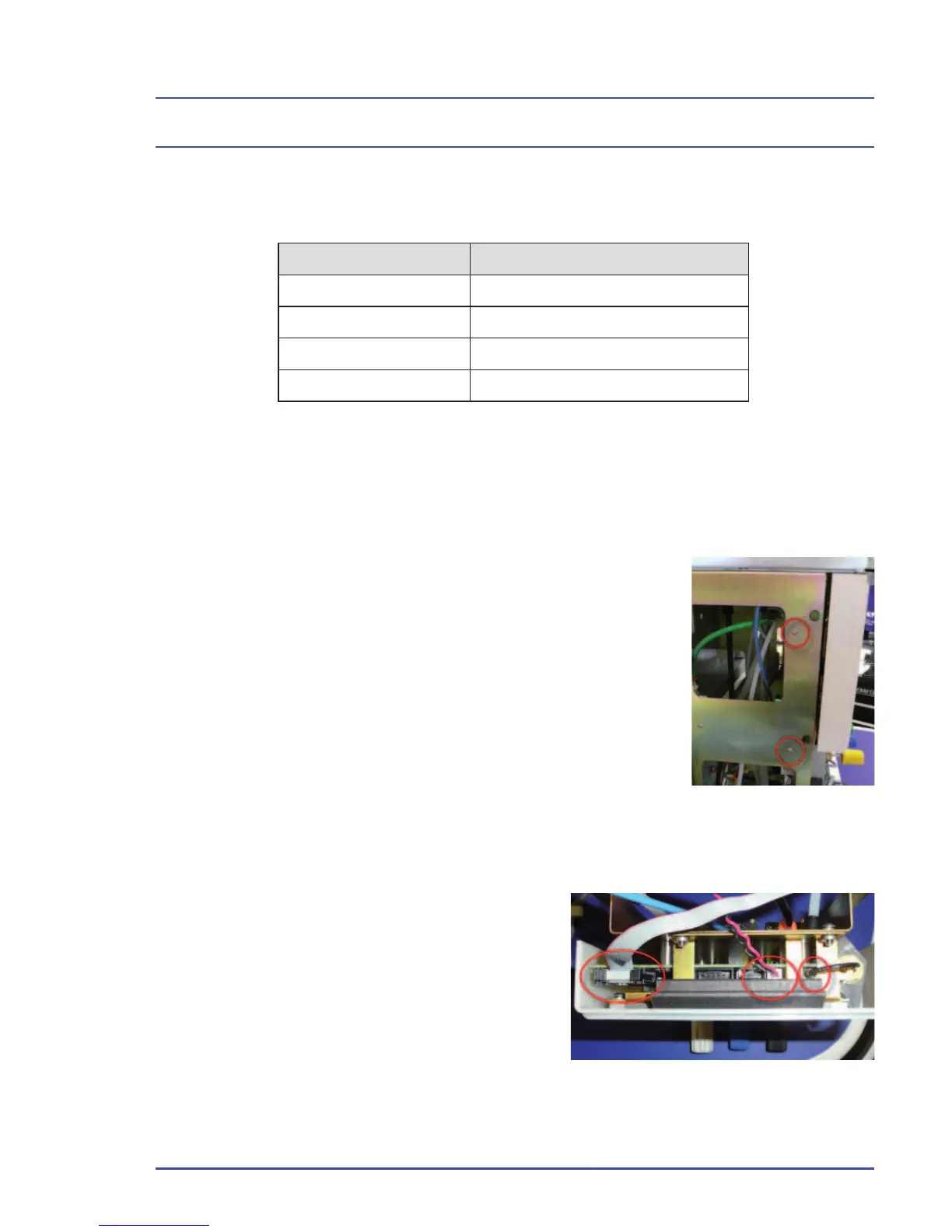

Spacelabs BleaseSirius - Figure 152 - EFM-Machine Retaining Screws; Figure 153 - Ribbon Cable, Power Connector and Light Pipe Locations

211
EFM Option
Parts and Tools Needed:
• Appropriate Replacement Hypoxic Guard
• 2.5mm and 3mm hex keys
• Phillips screwdriver
To replace the EFM hypoxic guard block:
1. Remove the top shelf cover, the front cover and
the backbar cover from the BleaseSirius system.
See Section 5.1.2 in this manual for instructions.
2. Remove the four retaining screws (two on each
side) that secure the EFM to the machine
(Figure 152).
3. Disconnect the ribbon cable and the
power connector from the EFM
(Figure 153).
4. Remove the light pipe from the EFM
circuit board (Figure 153).
Part Number Description
050-0554-00 3 Gas, ISO Confi guration
050-0556-00 2 Gas, ISO Confi guration
050-0555-00 3 Gas, ANSI Confi guration
050-0557-00 2 Gas, ANSI Confi guration
Figure 152 - EFM-Machine
Retaining Screws
Figure 153 - Ribbon Cable, Power
Connector and Light Pipe Locations
