Spacelabs BleaseSirius - Ventilator Internal System; Replacement of Major Components; Figure 135 - Inside the Ventilator (Top View)

173
5.198.2 Ventilator Internal System
5.19.2.1 Replacement of Major Components
H
F
G
A
E
B
C
A BAV Control PCB (FR101027)
B Inspiratory Block (FR137025)
C Front Display Board & Screen Inverter. (050-0547-00, 050-0548-00)
D Switch Mode Power Supply (FR136025)
E Inlet Manifold (FR140026)
F BAV Power Supply (FR136029)
G Gas Inlet Assembly (FR137027)
H Inspiratory Valve (FR137028)

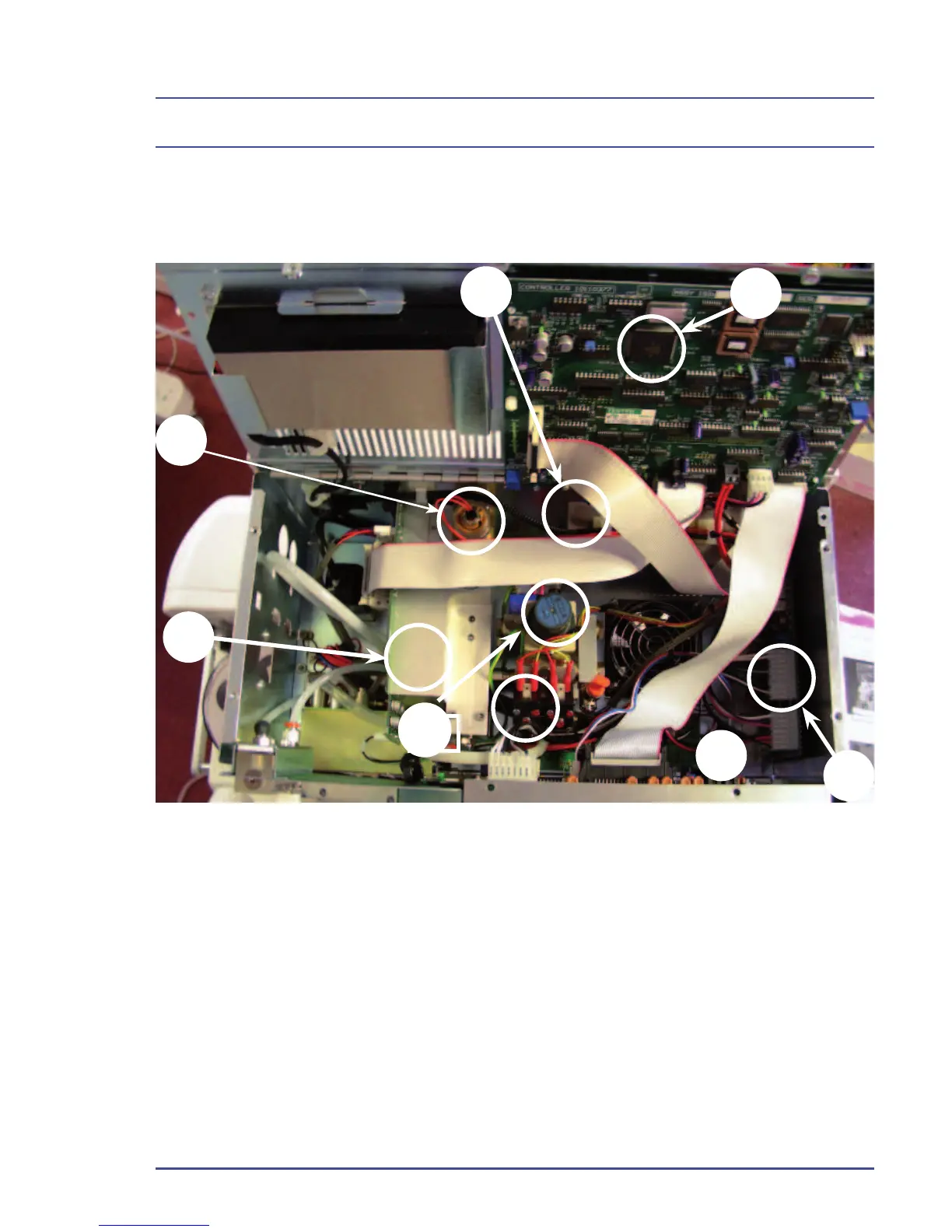

Figure 135 - Inside the Ventilator (Top View)
Detailed Repair Procedures
