Spacelabs BleaseSirius - Bellows Interface Gasket; Figure 120 - Bellows Interface Gasket Fixing Screws; Figure 121 - Gasket Removed

158

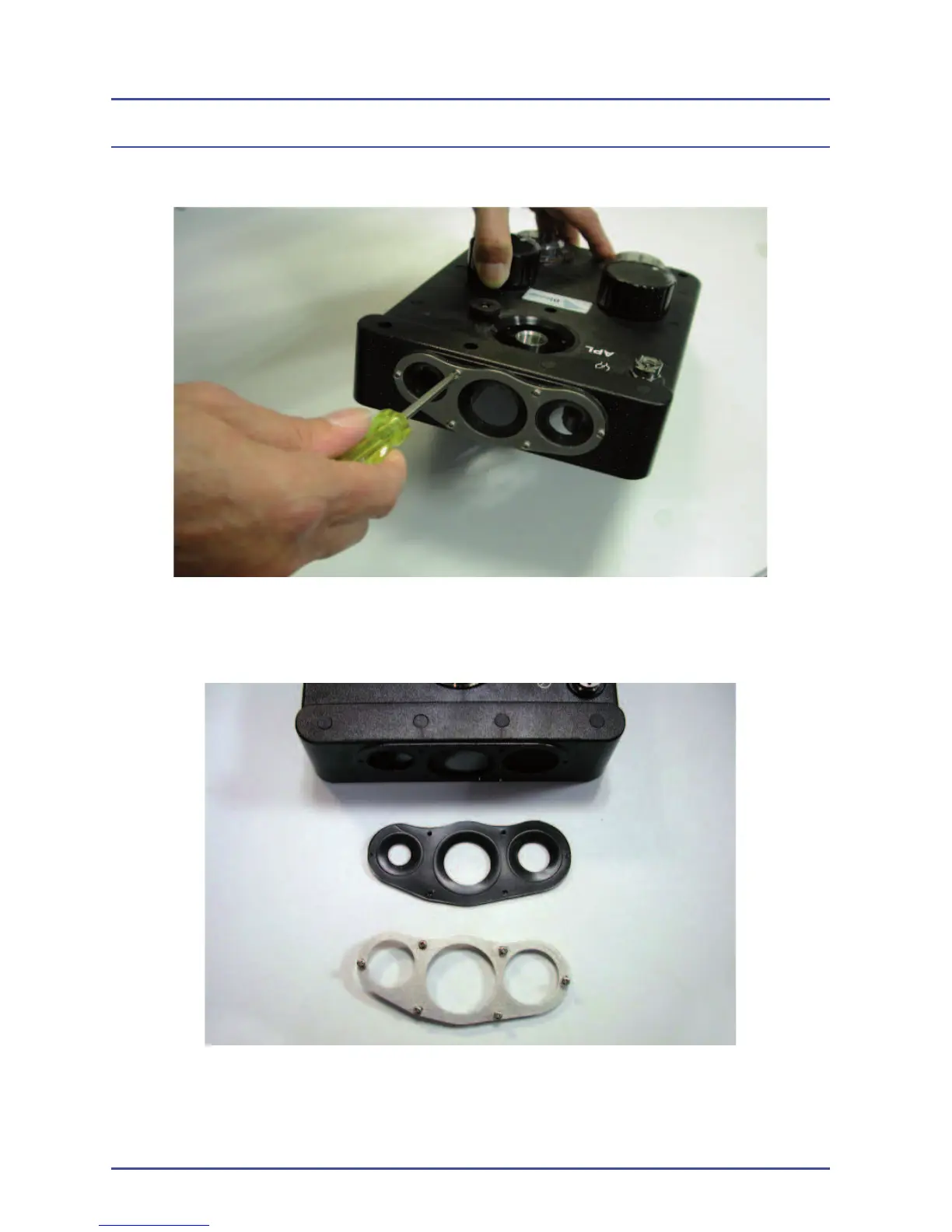

Figure 120 - Bellows Interface Gasket Fixing Screws
Figure 121 - Gasket Removed
5.13.1 Bellows Interface Gasket
1. Remove the six cross-head screws from the gasket plate.
2. Remove the gasket. Do not over tighten screws during re-assembly.
Detailed Repair Procedures
