Spacelabs BleaseSirius - Figure 118 - Internal View of Absorber Moldings; Figure 119 -Valve Arc

157

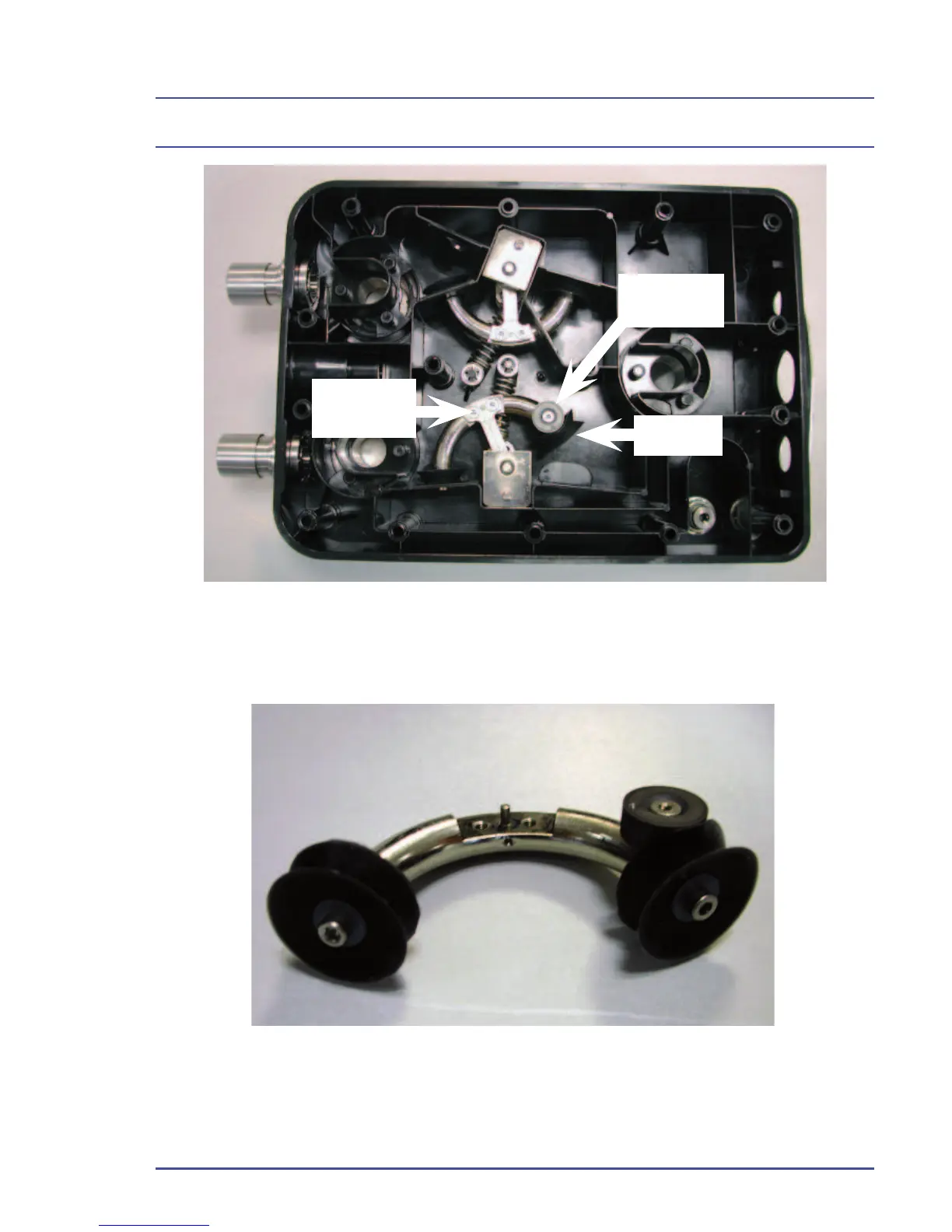

Figure 118 - Internal view of Absorber Moldings
Figure 119 -Valve Arc
3. To replace seals, remove the two M3 screws from the valve arc.
4. Remove seal from arc by removing the center screw and washer.
5. Re-assembly is the reverse of this procedure.
Seals
Switching
Magnet
Valve Arc
Screws
Detailed Repair Procedures
