Spacelabs BleaseSirius - Figure 80 - Fit the Actuator Assembly; Figure 81 - Attach the Bonnet to the Regulator

127

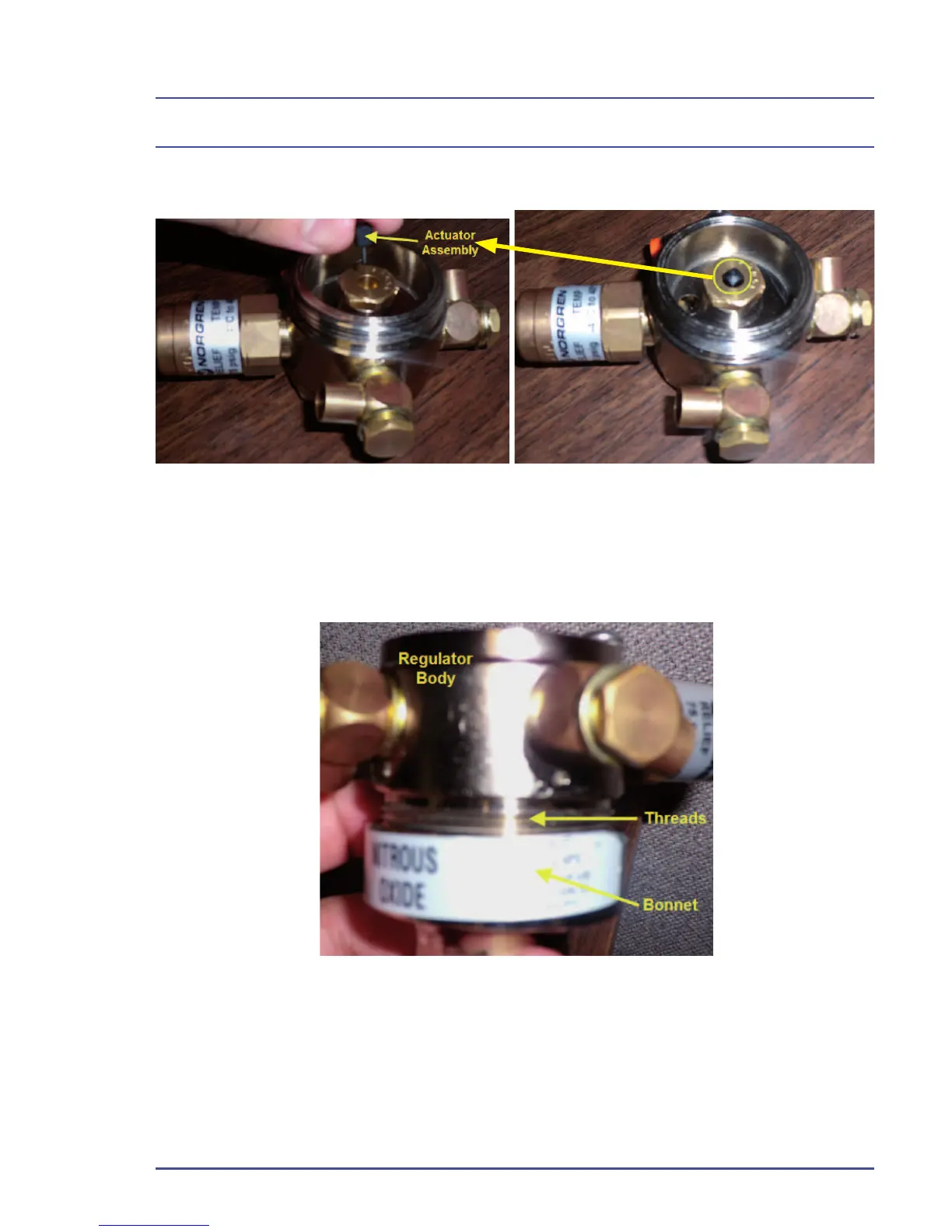

11. Fit the actuator assembly into the valve cartridge as shown in Figure 80.
Figure 80 - Fit the Actuator Assembly
12. Fasten the bonnet to the threads of the regulator body (Figure 81). Ensure
that the assembly stays in place.
Figure 81 - Attach the Bonnet to the Regulator
Detailed Repair Procedures
