180
3. Remove the three screws from the bottom of the front molding (Figure 120)
and lift out the front panel assembly.

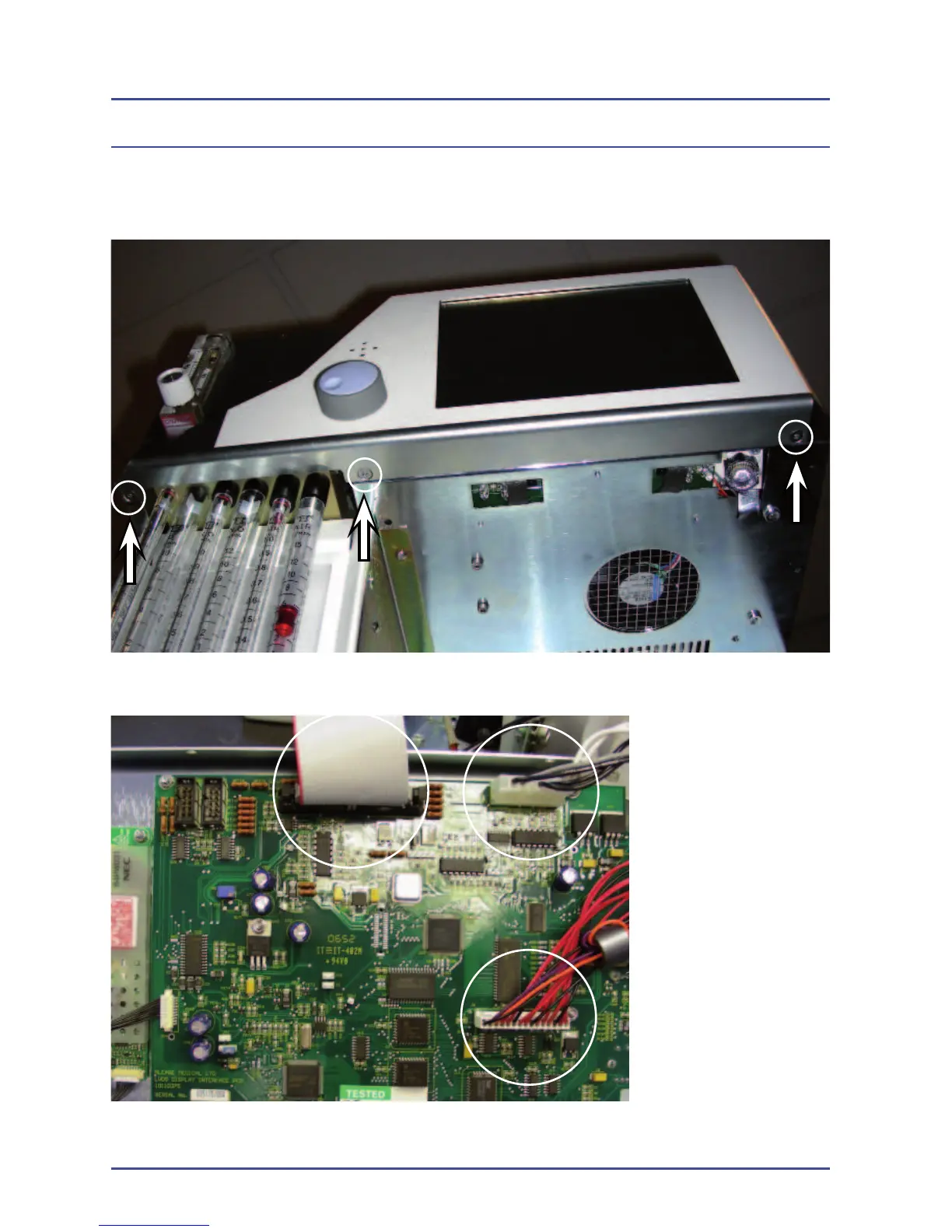

Figure 141 - Front Panel Retaining Screws
Figure 142 - Front Panel (Rear View)
4. To remove the
board, disconnect
connectors as
shown.
Detailed Repair Procedures
