5.10.2 Common Gas Outlet (CGO) Removal/ Replacement
(From Feb 2009 onward)
1. Remove the rubber gas feed connector from the CGO port on the front of
the machine.
2. Remove the rear panel (see section 5.1).
3. The block is held in place by three M5 screws. Remove these screws and
the block can be removed from the machine.
4. Replacement is the reverse of this procedure
Fixing
Screws
Safety
Valve
8mm Pipe
from Backbar
To
Absorber
6mm Pipe
to Flush
Valve

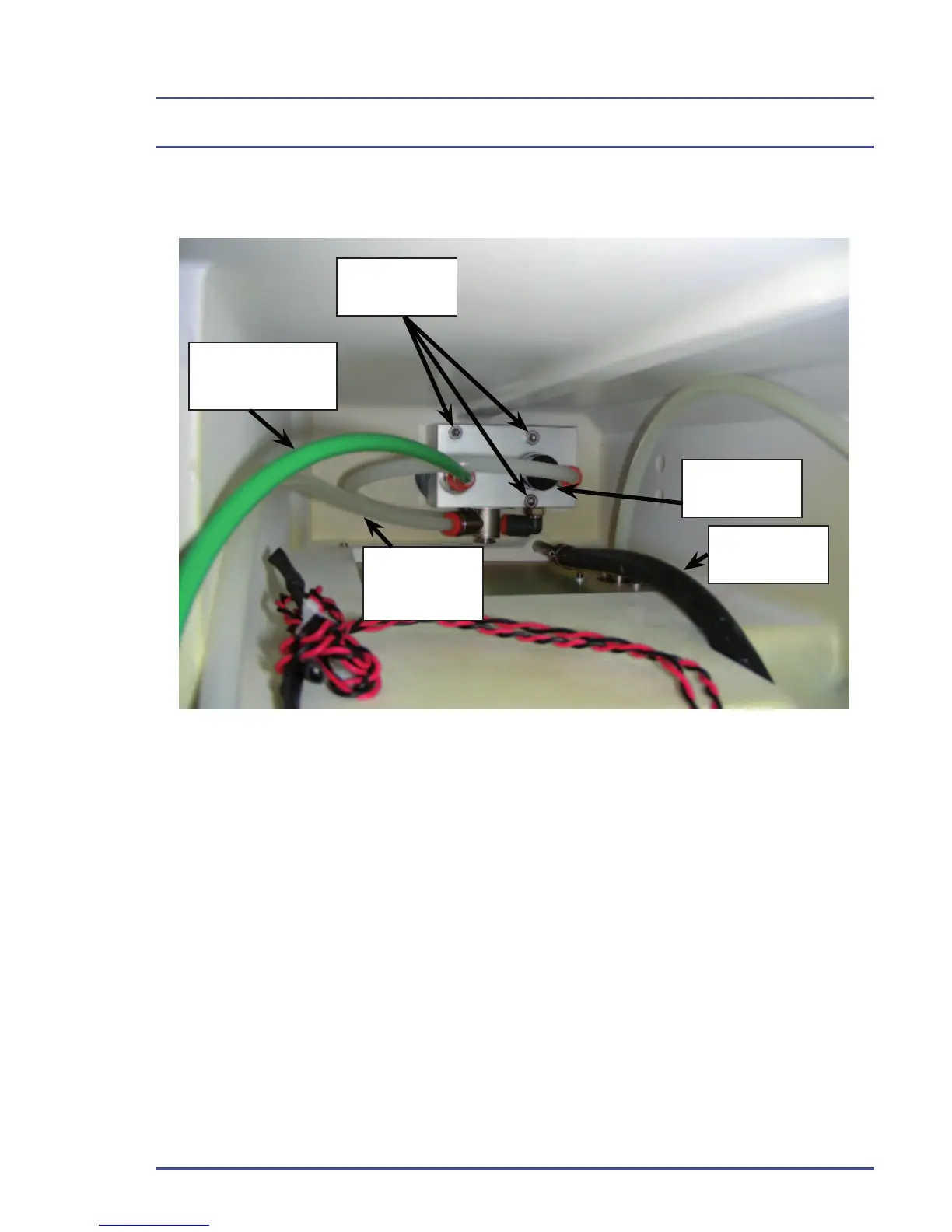

Figure 90 - CGO Block (Feb 2009 onwards)
