8. See Figure 68 to differentiate between the secondary regulator gas
locations.
9. If fi tted the machine is fi tted with an AIR fl ow control valve, complete steps
10 - 17.
10. Remove the 6mm plug connected to the AIR test point and connect a
pressure measuring device to it. (Refer to step 7 for test point locations.)
11. Loosen the nut on the AIR secondary regulator using a 13mm wrench.
12. Turn the ON/OFF switch to the “ON” position.
13. Set a fl ow of 0.5 L/min on the AIR fl ow control valve.

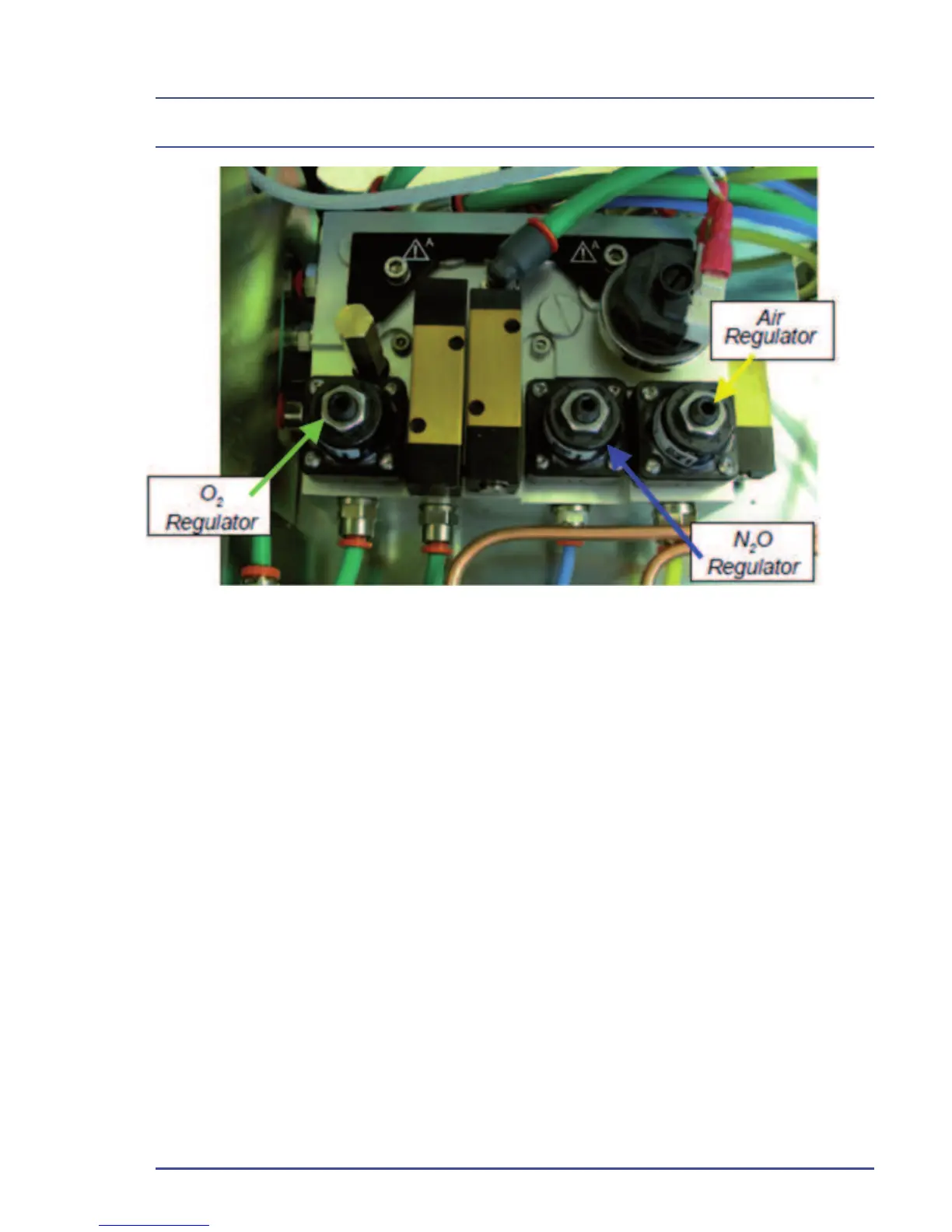

Figure 68 - Secondary Gas Regulator Locations
Detailed Repair Procedures
