Title
Number RevisionSize
A4
Date: 19-Jan-2007 Sheet of
File:
S:\Public\Drawings\ECN numbers\ECN4881 Update breaker PCB\Protel\13600284-3\13600284-3.DD
Drawn By:
1
2
3
4
5
J5
SSR IN
1
2
J1
MAINS IN
1
2
J6
VENTILATOR
1
2
J7
SPARE
Vent +ve
Vent -ve
1
2
J11
SKT 4
1
2
J10
SKT 3
1
2
J9
SKT 2
1
2
J8
SKT 1
1
2
3
JUMPER1
CON3
Live To CBs
Permenant Live
Switched Live
13600284SCH
12
34
SSR1
PF240D25
1 2
CB4
CIRCUIT BREAKER
1 2
CB3
CIRCUIT BREAKER
1 2
CB2
CIRCUIT BREAKER
1 2
CB1
CIRCUIT BREAKER
L
L
L
L
L
L
N
N
N
N
N
N
Sirius Power Distribution 110VAC
3
1 1
N
L
L
L
N
N
N
N
L
L
1
2
J2
TX OUT
1
2
3
4
J4
SKTS IN
1
2
3
4
5
J3
NO TX OUT
L
L
L
N
N
N
JUMPER1-3
JUMPER1-2
JUMPER1-1
F8
FUSE
F4
FUSE
F3
FUSE
F2
FUSE
F1
FUSE
F6
FUSE
F5
FUSE
F7
FUSE
Wire links fitted in fuse
WHEN THERE IS NO TRANSFORMER
ASSMBLY FITTED J3 (NO TX OUT) IS
CONNECTED TO J4 (SKTS IN)
WHEN THERE IS A TRANSFORMER
ASSMBLY FITTED J2 (TX OUT) IS
CONNECTED TO J1 (IN) OF THE
TRANSFORMER ASSEMBLY AND J2
(ISOLATED OUT) OF THE
TRANSFORMER ASSEMBLY IS
CONNECTED TO J4 (SKTS IN)
Live To CBs normally connected to Permanent Live
Connected to Switched Live when sockets are to
be switched on and off with trolley
1. 1000VA TRANSFORMER IS NOT SWITCHABLE
500VA TRANSFORMER IS SWITCHABLE USING LINK SELECT
2. SEE 13600377 FOR TRANSFORMER NOT FITTED LINK CABLE
3. SEE 13600376 AND 13600378 FOR CONNECTIONS TO TRANSFORMER ASSEMBLY
When 110v 3A breaker and 4A fuse
When 230v 3A breaker and 4A fuse
When 110v 3A breaker and 4A fuse
When 230v 2A breaker and 3A fuse
When 110v 3A breaker and 4A fuse
When 230v 2A breaker and 3A fuse
When 110v 3A breaker and 4A fuse
When 230v 2A breaker and 3A fuse
Fuses and sockets not fitted
Schematics

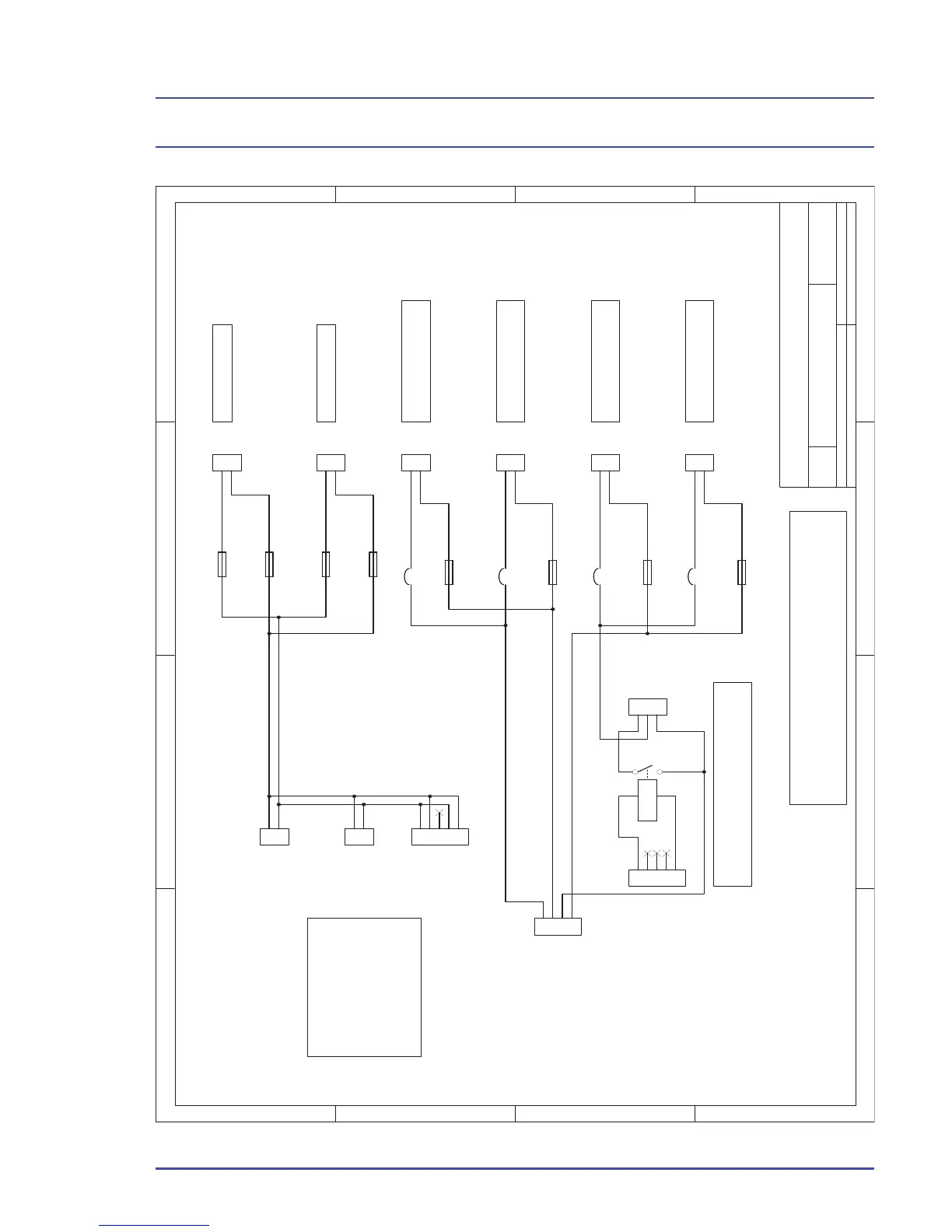

Schematic 28 - 13600379SCH Sirius Power Distribution 110VA
