141
Detailed Repair Procedures
4. Place the vent wires in the correct orientation and secure them with the
(4) screws.

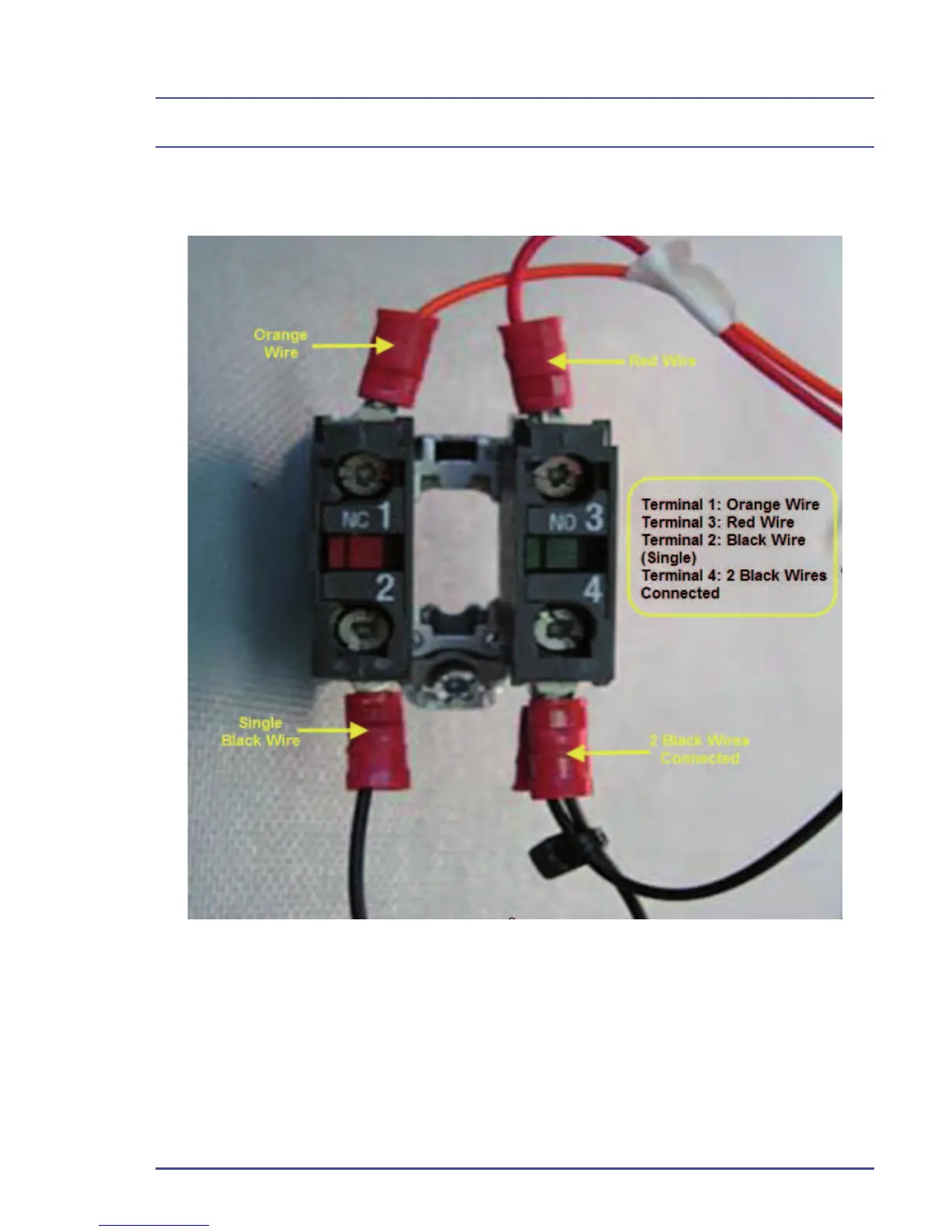

Figure 102 - Ventilator Wire Orientation
