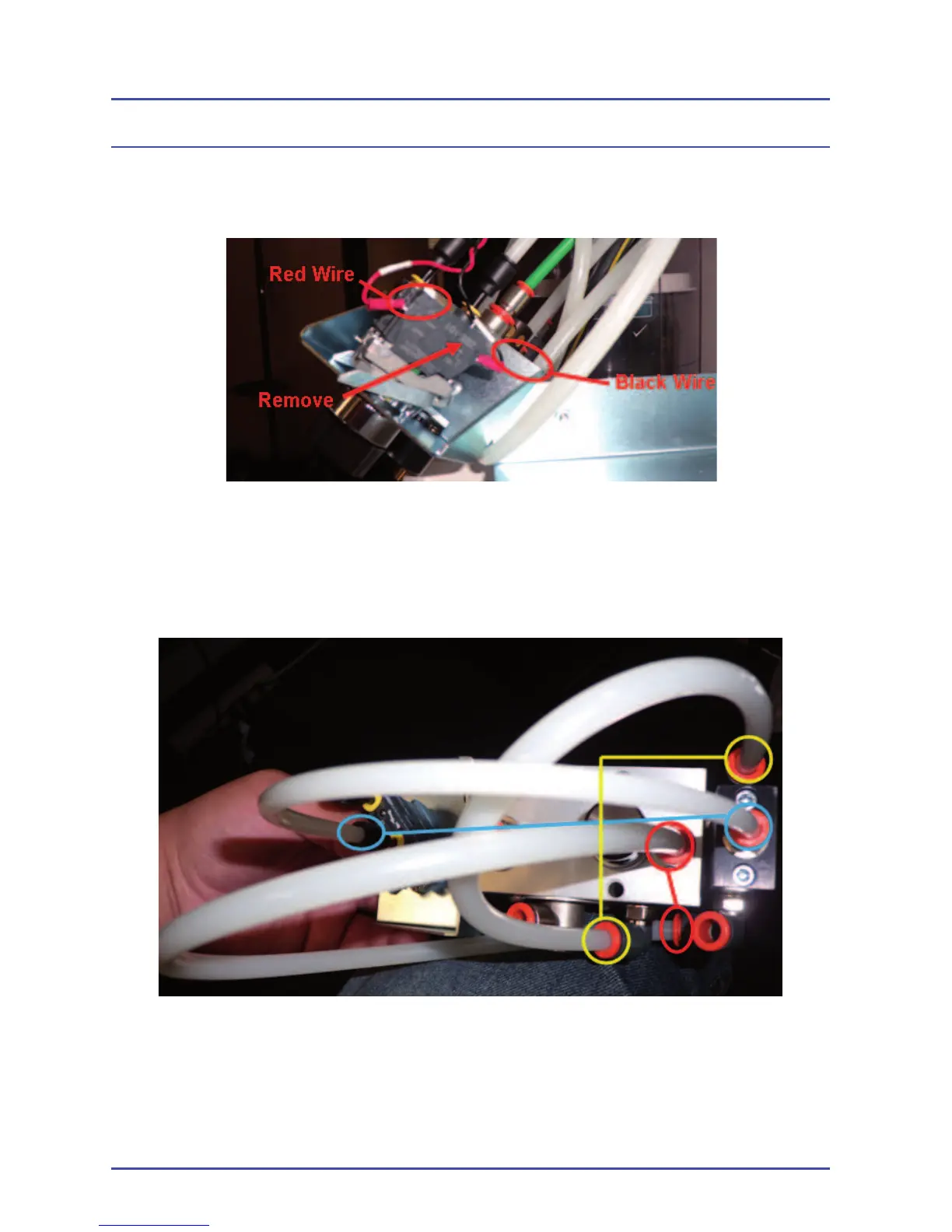

Spacelabs BleaseSirius - Figure 97 - Location of Microswitch; Figure 98 - ACGO Tubing Orientation

138
Detailed Repair Procedures
8. Remove the microswitch, indicated in Figure 97. Note the wire orientation
when reinstalling the microswitch.
Figure 97 - Location of Microswitch
9. Note the orientation of the tubing, then reinstall the ACGO assembly by
reversing the removal procedure.
Figure 98 - ACGO Tubing Orientation
