1.4.5 Electrical
Voltage 100 / 230 V
Frequency 60 / 50 Hz
Power 1.2 / 1.0 kVa
The auxiliary sockets are numbered 1 through 4, top to bottom and are rated
as in the following tables. If the machine has the switching sockets option,
sockets 3 and 4 will switch On and Off when the Main On/Off (Figure 1, Key
O) is switched On and Off, rather than with the Mains On/Off switch (Figure 2).
230V 110V
Socket
Outlet
Rating
Breaker Fuse Socket
Outlet
Rating
Breaker Fuse
1 2A 3A 5A 1 - 4 2A 3A 4A
2 - 4 1A 2A 3.15A

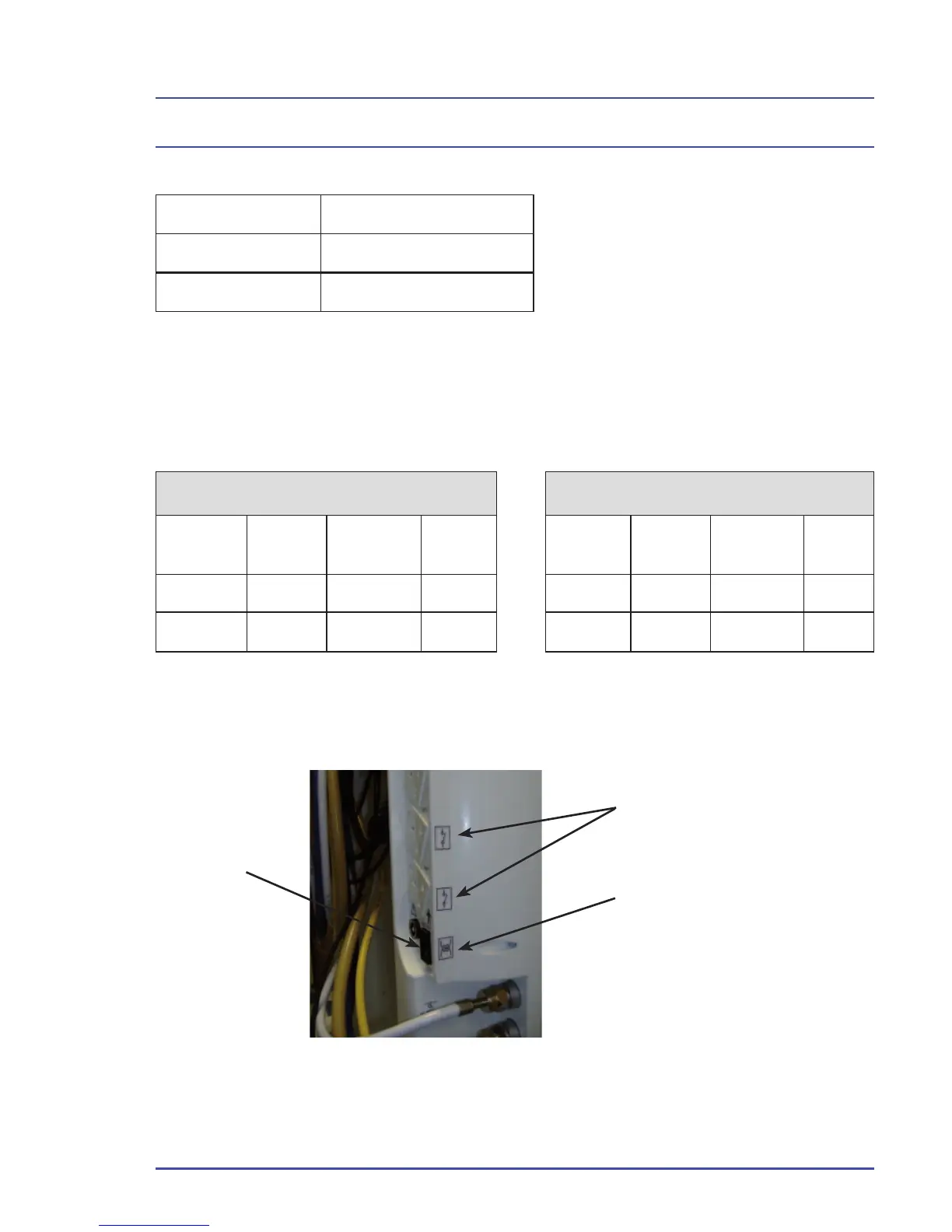

1.4.5.1 Electrical Labeling
Switched outlet label
Isolation transformer label
Figure 2 - Electrical Labeling
Technical Description
Mains ON/OFF
switch
