Debug support (DBG) RM0008

1075/1128 DocID13902 Rev 15

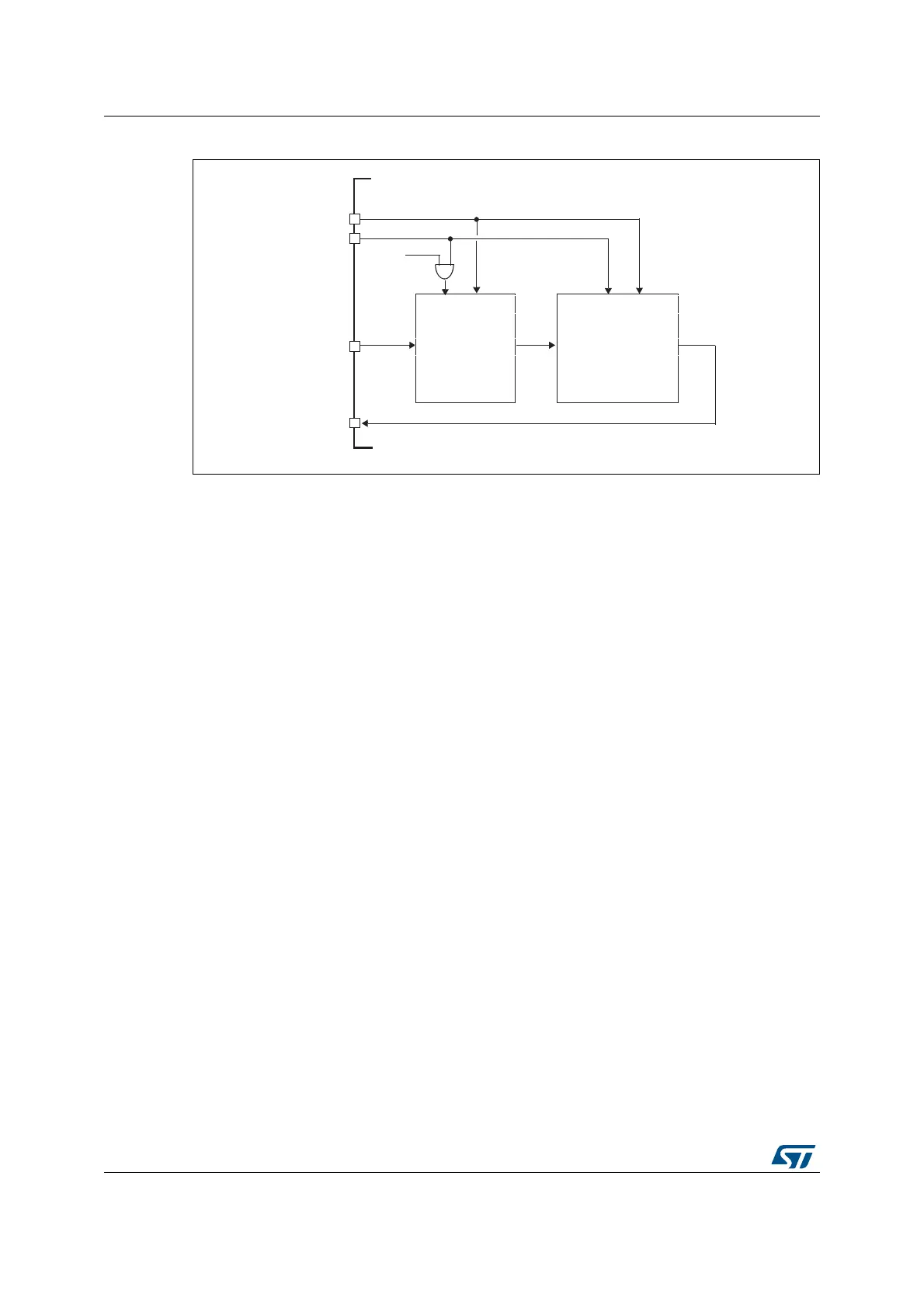

Figure 362. JTAG TAP connections

Boundary scan

TAP

NJTRST

Cortex-M3 TAP

JTMS

TMS nTRSTTMS nTRST

JTDI

JTDO

TDI TDO TDI TDO

SW-DP

STM32 MCU

Selected

IR is 5-bit wide IR is 4-bit wide

ai14981b
