DocID13902 Rev 15 396/1128

RM0008 General-purpose timers (TIM2 to TIM5)

417

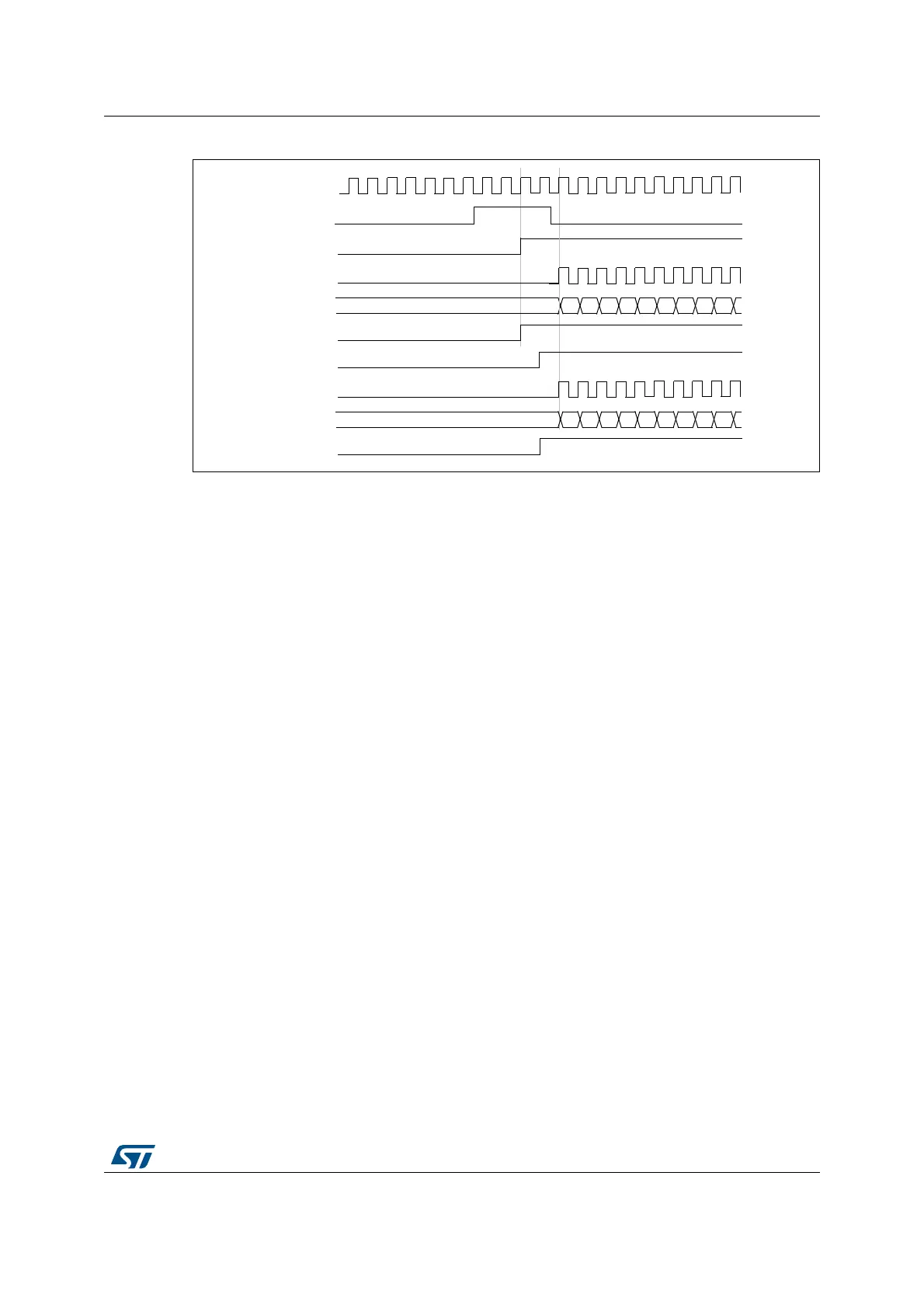

Figure 145. Triggering timer 1 and 2 with timer 1 TI1 input

15.3.16 Debug mode

When the microcontroller enters debug mode (Cortex

-M3 core - halted), the TIMx counter

either continues to work normally or stops, depending on DBG_TIMx_STOP configuration

bit in DBGMCU module. For more details, refer to Section 31.16.2: Debug support for

timers, watchdog, bxCAN and I2C.

00 01

CK_INT

TIMER1-CEN=CNT_EN

TIMER1-CNT

TIMER 1-TI1

TIMER 1-CK_PSC

02 03 04 05 06 07 08 09

TIMER1-TIF

00 01

TIMER2-CEN=CNT_EN

TIMER2-CNT

TIMER 2-CK_PSC

02 03 04 05 06 07 08 09

TIMER2-TIF
