DocID13902 Rev 15 916/1128

RM0008 USB on-the-go full-speed (OTG_FS)

957

• Reading the receive FIFO

The application must ignore all packet statuses other than IN data packet (bx0010).

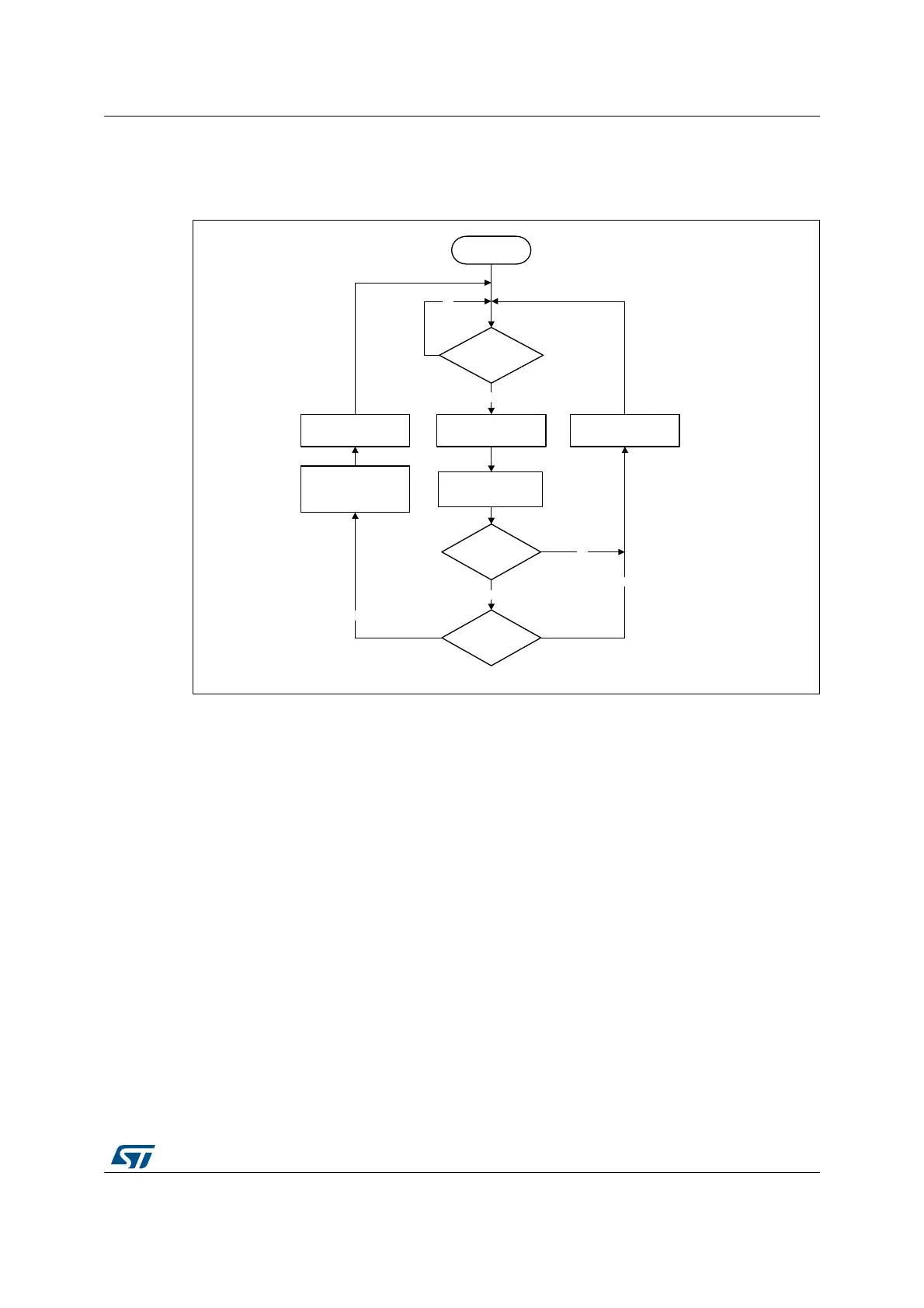

Figure 313. Receive FIFO read task

• Bulk and control OUT/SETUP transactions

A typical bulk or control OUT/SETUP pipelined transaction-level operation is shown in

Figure 314. See channel 1 (ch_1). Two bulk OUT packets are transmitted. A control

RXFLVL

interrupt ?

Read the received

packet from the

Receive FIFO

Read

OTG_FS_GRXSTSP

PKTSTS

0b0010?

Yes

Unmask RXFLVL

interrupt

BCNT > 0?

Mask RXFLVL

interrupt

Yes

Unmask RXFLVL

interrupt

Start

ai15674
