DocID13902 Rev 15 1094/1128

RM0008 Debug support (DBG)

1100

31.17 TPIU (trace port interface unit)

31.17.1 Introduction

The TPIU acts as a bridge between the on-chip trace data from the ITM and the ETM.

The output data stream encapsulates the trace source ID, that is then captured by a trace

port analyzer (TPA).

The core embeds a simple TPIU, especially designed for low-cost debug (consisting of a

special version of the CoreSight TPIU).

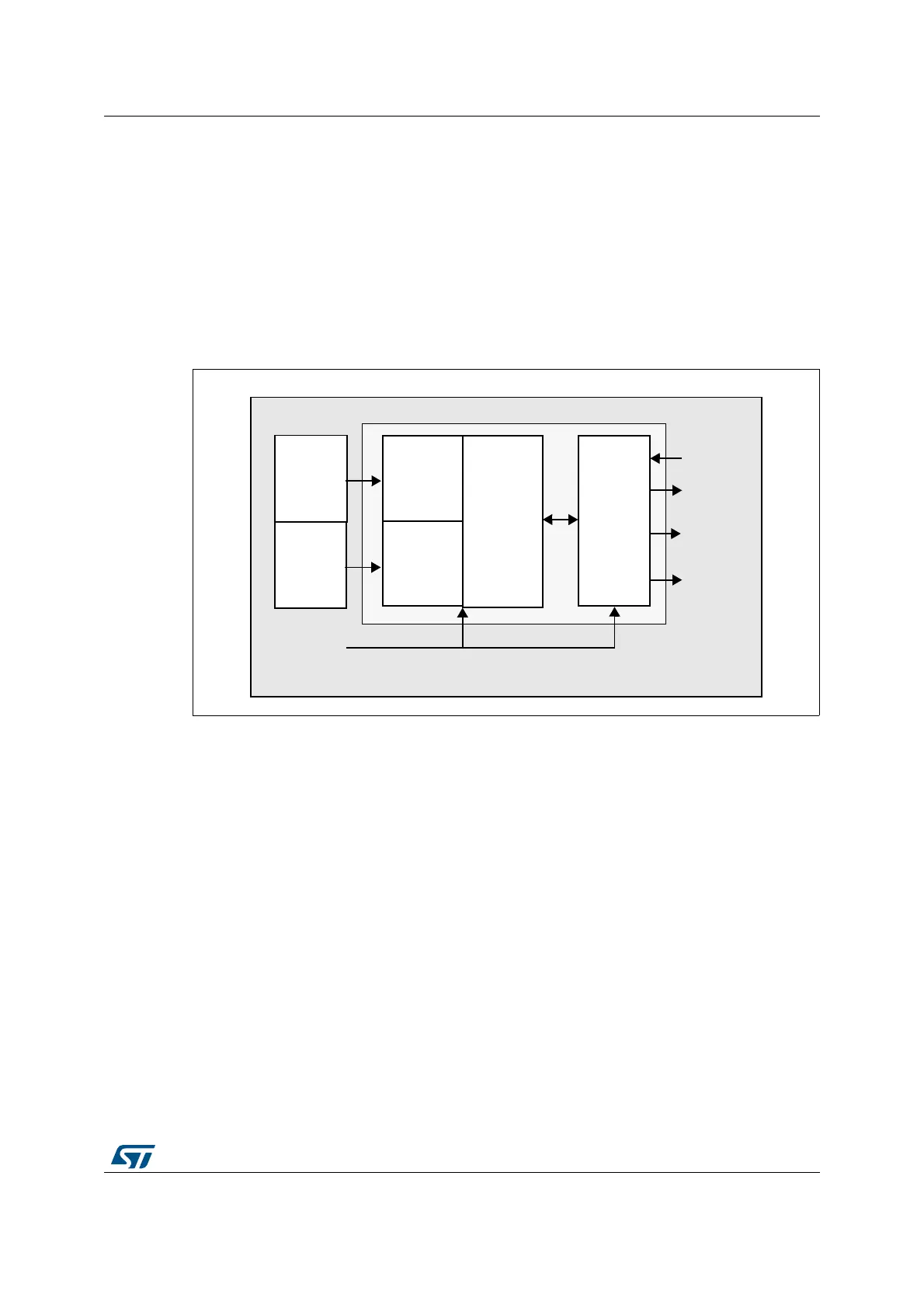

Figure 363. TPIU block diagram

formatter

Trace out

(serializer)

TRACECLKIN

TRACECK

TRACEDATA

[3:0]

TRACESWO

CLK domain

TRACECLKIN domain

External PPB bus

TPIU

Asynchronous

FIFO

Asynchronous

FIFO

ETM

ITM

ai17114
