Engine Mechanical: 1D-10
Throttle Body Removal and Installation
B944H11406042
Removal
1) Disconnect the battery (–) lead wire. Refer to
“Battery Removal and Installation in Section 1J
(Page 1J-12)”.
2) Lift and support the fuel tank. Refer to “Fuel Tank
Removal and Installation in Section 1G (Page 1G-
7)”.
3) Remove the air cleaner box. Refer to “Air Cleaner
Box Removal and Installation (Page 1D-6)”.
4) Place a clean rag under the fuel feed hose (1) and
disconnect the fuel feed hose from the fuel pump.
5) Disconnect the STVA lead wire coupler (2), STP
sensor lead wire coupler (3) and TP sensor lead wire
coupler (4).
6) Disconnect the fuel injector couplers (5).
7) Loosen the throttle body clamp screws (6).
8) Disconnect the throttle cables (7) from the throttle
body and move the throttle body assembly upward.
CAUTION
!
After disconnecting the throttle cables, do
not snap the throttle valve from the open to
full close. It may cause damage to the throttle
valve and throttle body.
9) Remove the throttle body assembly.

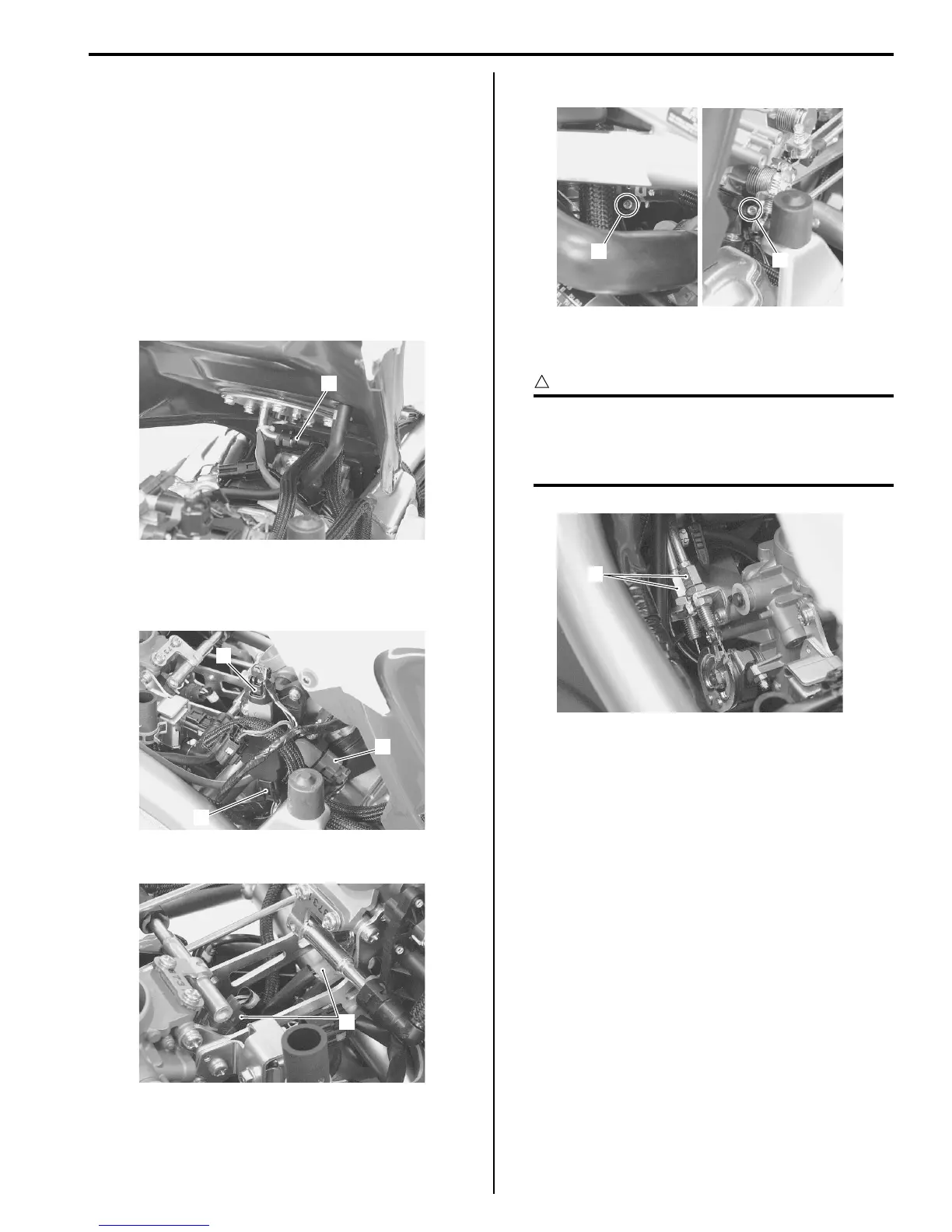

1
I944H1140261-01
4
2
3
I944H1140262-01
5
I944H1140329-02
6
6
I944H1140263-03
7
I944H1140264-02

Suzuki SFV650 Specifications

General

Manufacturer	Suzuki
Model	SFV650
Category	Naked
Bore x Stroke	81.0 mm x 62.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire Size	120/70ZR17M/C (58W), tubeless
Rear Tire Size	160/60ZR17M/C (69W), tubeless
Ground Clearance	135 mm (5.3 in)
Curb Weight	202 kg (445 lbs)
Overall Width	760 mm
Wheelbase	1445 mm (56.9 in)
Fuel Capacity	14.5 L
Engine Type	4-stroke, liquid-cooled, DOHC, 90-degree V-twin
Overall Length	2, 130 mm (83.9 in)
Overall Height	1090 mm
