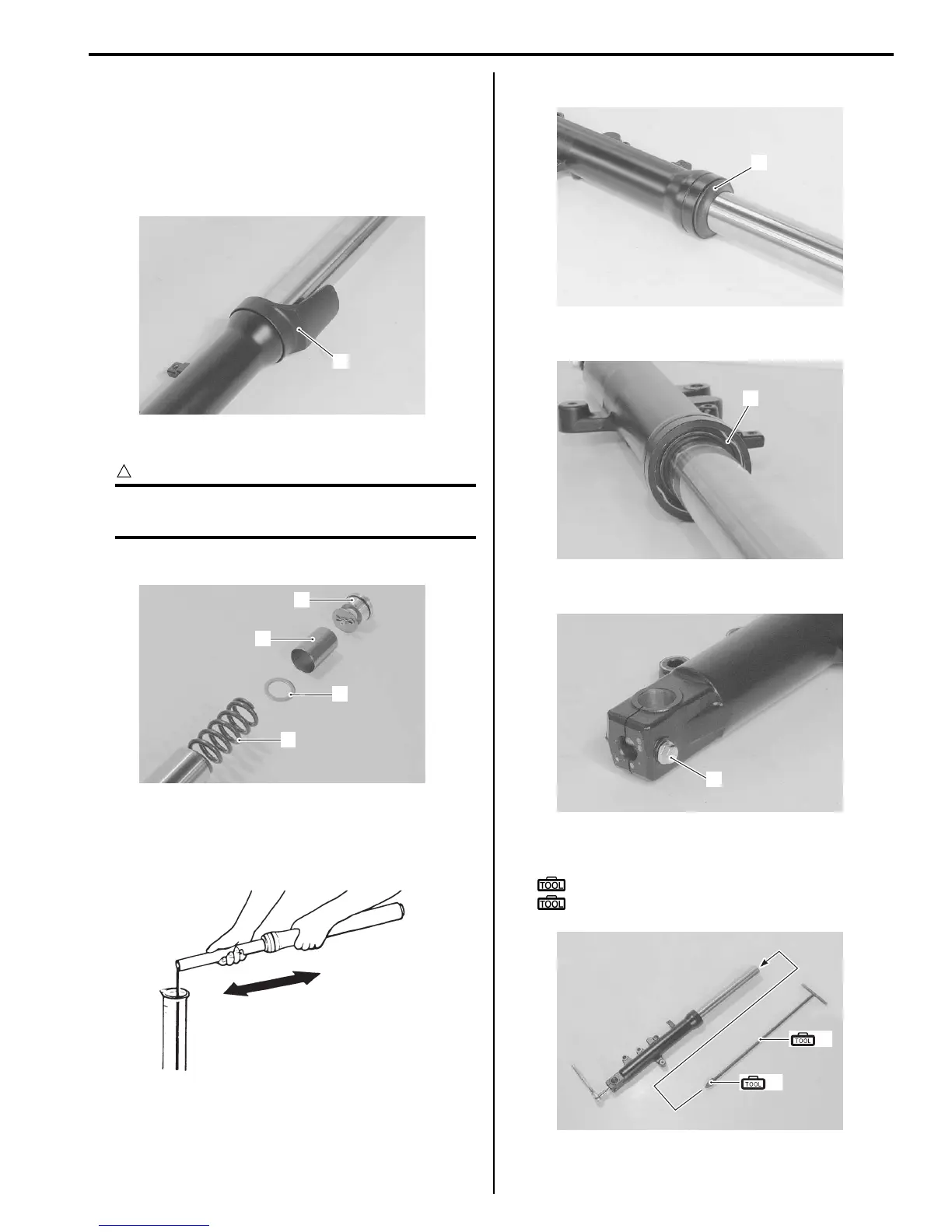

Front Suspension: 2B-4
Front Fork Disassembly and Assembly
B944H12206003
Refer to “Front Fork Removal and Installation (Page 2B-
2)”.
Disassembly
1) Remove the front fork protector (1).
2) Remove the front fork cap bolt (2).
CAUTION
!
Hold the front fork cap bolt when removing it,
or it will jump out due to the spring pressure.
3) Remove the spacer (3), washer (4) and spring (5).
4) Invert the fork and stroke it several times to drain out
fork oil.
5) Hold the fork inverted for a few minutes to drain oil.
6) Remove the dust seal (6).
7) Remove the oil seal stopper ring (7).
8) Remove the front axle pinch bolt (8).
9) Remove the cylinder bolt using the special tools.
Special tool
(A): 09940–34520 (T handle)
(B): 09940–34531 (Attachment A)
1
I944H1220007-01
2
3
5
4
I944H1220008-01
I649G1220012-02
6
I944H1220009-01
7
I944H1220010-01
8
I944H1220011-01
(A)
(B)
I944H1220012-01
