Suzuki SFV650 User Manual

6B-1 Steering / Handlebar:
Steeri ng
Steering / Handlebar
Repair Instructions

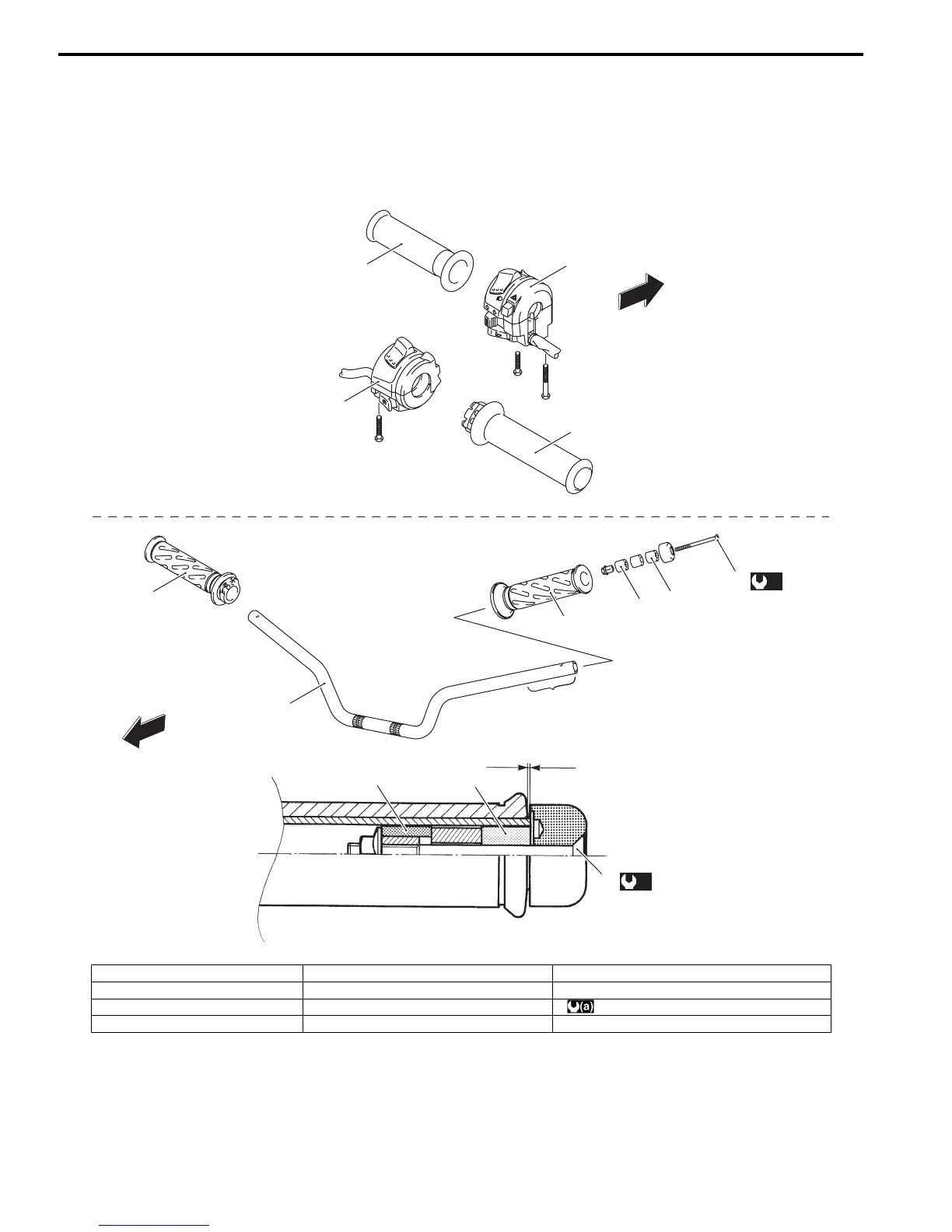

Handlebars Components
B944H16206001
“a”
5
4
(a)
6
1
2
3
5
4
(a)
6
1
3
7
8
FWD
FWD
“A”
FWD
FWD
I944H1620023-02
1. Throttle grip 5. Handle balancer expander “A”: Apply handle grip bond.
2. Handlebars 6. Handle balancer screw “a”: 0.5 – 1.5 mm (0.02 – 0.06 in) (Throttle grip)
3. Grip rubber 7. Right handlebar switch box : 5.5 N⋅m (0.55 kgf-m, 4.0 lbf-ft)
4. Handle expander 8. Left handlebar switch box

Suzuki SFV650 Specifications

General

Manufacturer	Suzuki
Model	SFV650
Category	Naked
Bore x Stroke	81.0 mm x 62.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire Size	120/70ZR17M/C (58W), tubeless
Rear Tire Size	160/60ZR17M/C (69W), tubeless
Ground Clearance	135 mm (5.3 in)
Curb Weight	202 kg (445 lbs)
Overall Width	760 mm
Wheelbase	1445 mm (56.9 in)
Fuel Capacity	14.5 L
Engine Type	4-stroke, liquid-cooled, DOHC, 90-degree V-twin
Overall Length	2, 130 mm (83.9 in)
Overall Height	1090 mm
