Suzuki SFV650 - Repair Instructions; Ignition Coil Construction

Ignition System: 1H-4
Repair Instructions

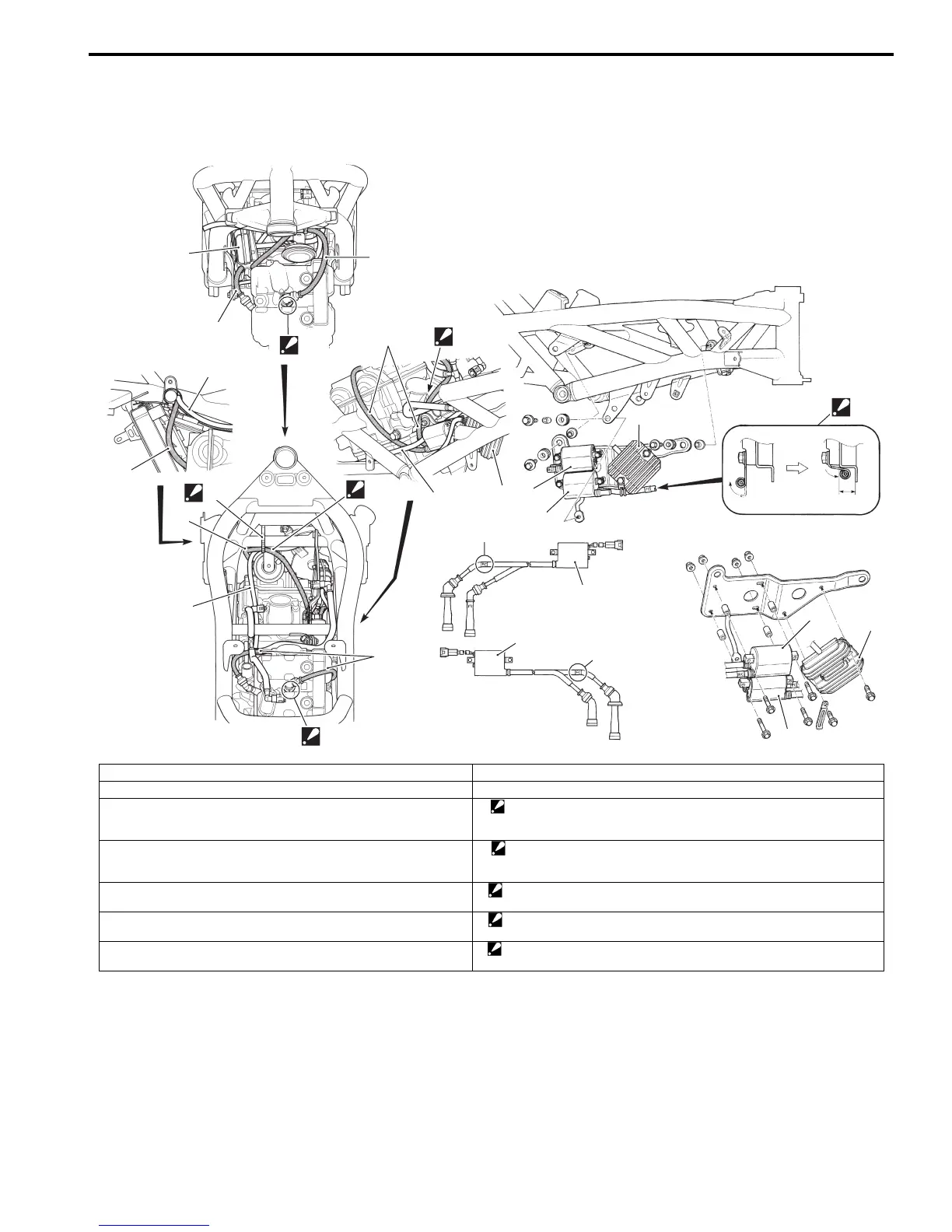

Ignition Coil Construction
B944H11806011
3
4
4
“B”
4
6
5
7
3
“C”
5
4
6
“B”
“A”
10
3
2
2
1
9
8
1
11
“a”
1
2
3
I944H1180002-10
1. Ignition coil #1 8. FC mark
2. Ignition coil #2 9. RC mark
3. Regulator/rectifier 10. Clamp:
Contact the clamp with the horn bracket on its left side and clamp down
the high-tension cord at the marked position.
4. High-tension cord #1 11. Clamp:
With the high-tension cord clamped and bent inward, check that it is
positioned within area “a”.
5. High-tension cord #2 “A”: Pass the high-tension cord above the horn and reservoir tank inlet hose.
Do not contact the high-tension cord to the horn and radiator.
6. Reservoir tank inlet hose “B”: Press firmly on the spark plug cap to fit it securely with mark “U” on the
plug cap facing exhaust side.
7. Reservoir tank outlet hose “C”: Route the high-tension cord on the cylinder head side relative to the
position of wiring harness or piping.
