Suzuki SFV650 User Manual

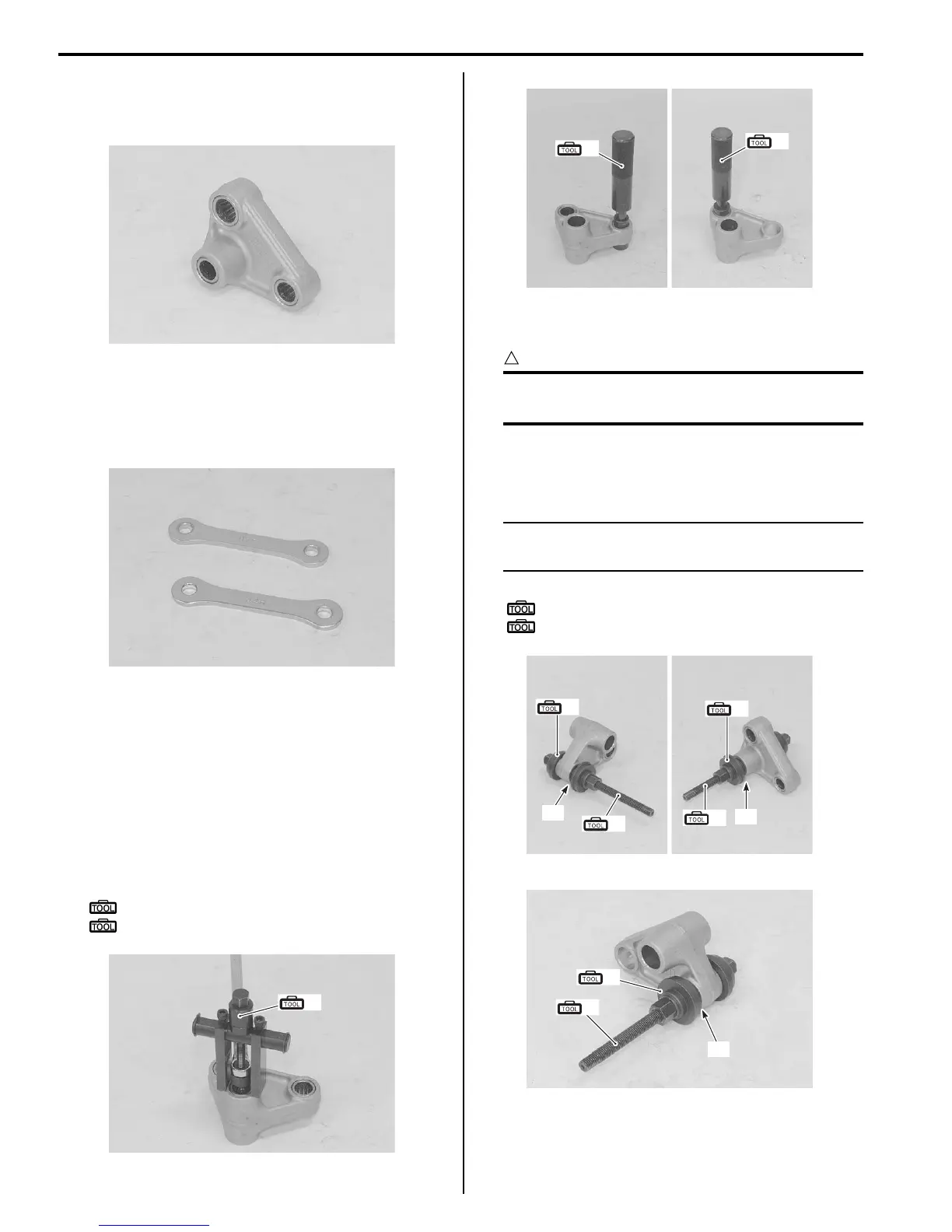

2C-7 Rear Suspension:
Cushion Lever
Inspect the cushion lever for damage. If any defect is
found, replace the cushion lever with a new one.
Cushion Rod
Inspect the cushion rods for damage and bend. If any
defects are found, replace the cushion rods with new
ones.
Cushion Lever Bearing Removal and
Installation
B944H12306010
Removal
1) Remove the cushion lever. Refer to “Cushion Lever /
Cushion Rod Removal and Installation (Page 2C-5)”.
2) Remove the cushion lever bearings using the special
tools.
Special tool
(A): 09921–20240 (Bearing remover set)
(B): 09913–70210 (Bearing installer set)
Installation
CAUTION
!
The removed bearings must be replaced with
new ones.
1) Press the bearings into the cushion lever at 1 mm
(0.04 in) depth “A” and 0.25 mm (0.01 in) depth “B”
from the cushion laver surface with the special tool.
NOTE
When installing the bearing, stamped mark
on the bearing must face outside.
Special tool
(A): 09924–84510 (Bearing installer set)
(B): 09941–34513 (Steering race installer)
I944H1230019-01
I944H1230020-01
(A)
I944H1230021-01
(B)
(B)
I944H1230022-01
“A”
“A”
(A)
(A)
(B)
(B)
I944H1230023-01
(A)
(B)
“B”
I944H1230024-01

Suzuki SFV650 Specifications

General

Manufacturer	Suzuki
Model	SFV650
Category	Naked
Bore x Stroke	81.0 mm x 62.6 mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Starter	Electric
Transmission	6-speed, constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire Size	120/70ZR17M/C (58W), tubeless
Rear Tire Size	160/60ZR17M/C (69W), tubeless
Ground Clearance	135 mm (5.3 in)
Curb Weight	202 kg (445 lbs)
Overall Width	760 mm
Wheelbase	1445 mm (56.9 in)
Fuel Capacity	14.5 L
Engine Type	4-stroke, liquid-cooled, DOHC, 90-degree V-twin
Overall Length	2, 130 mm (83.9 in)
Overall Height	1090 mm
