3A-6 Drive Chain / Drive Train / Drive Shaft:
Wheel Damper
Inspect the dampers for wear and damage. Replace the
damper if there is anything unusual.
Drive Chain
Refer to “Drive Chain Inspection and Adjustment in
Section 0B (Page 0B-15)”.

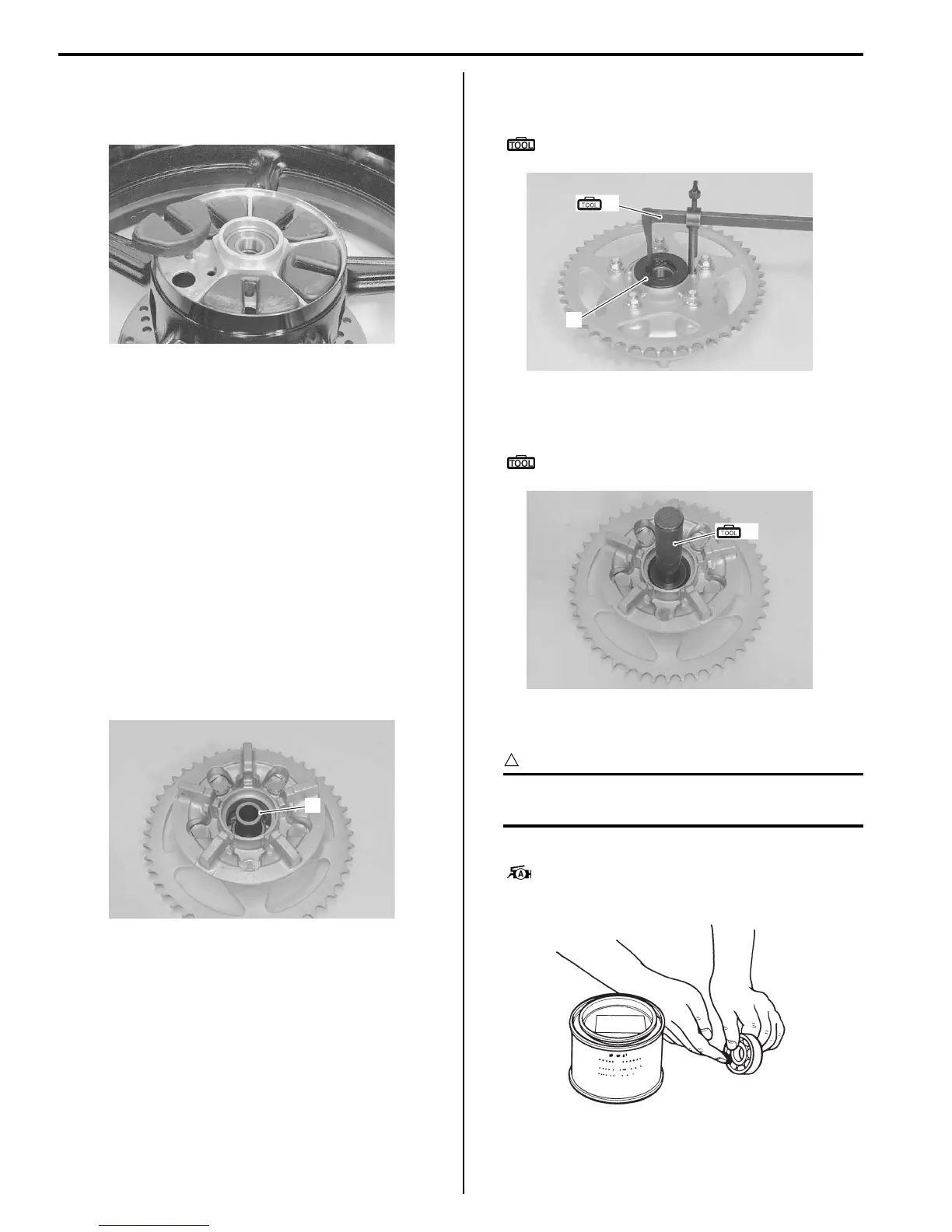

Sprocket Mounting Drum Dust Seal / Bearing
Removal and Installation
B944H13106005
Removal
1) Remove the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation in Section
2D (Page 2D-11)”.
2) Remove the rear sprocket mounting drum assembly
from the rear wheel. Refer to “Rear Wheel Dust Seal
/ Bearing Removal and Installation in Section 2D
(Page 2D-13)”.
3) Remove the retainer (1).
4) Remove the sprocket mounting drum dust seal (2)
using the special tool.
Special tool
(A): 09913–50121 (Oil seal remover)
5) Remove the sprocket mounting drum bearing using
the special tool.
Special tool
(B): 09913–70210 (Bearing installer set)
Installation
CAUTION
!
The removed dust seal and bearing must be
replaced with new ones.
1) Apply grease to the bearing before installing.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
I944H1310019-01
1
I944H1310020-01
2
(A)
I944H1310021-01
(B)
I944H1310022-01
I649G1310020-02
