Suzuki SFV650 - Repair Instructions; Exhaust System Construction

1K-2 Exhaust System:
Repair Instructions

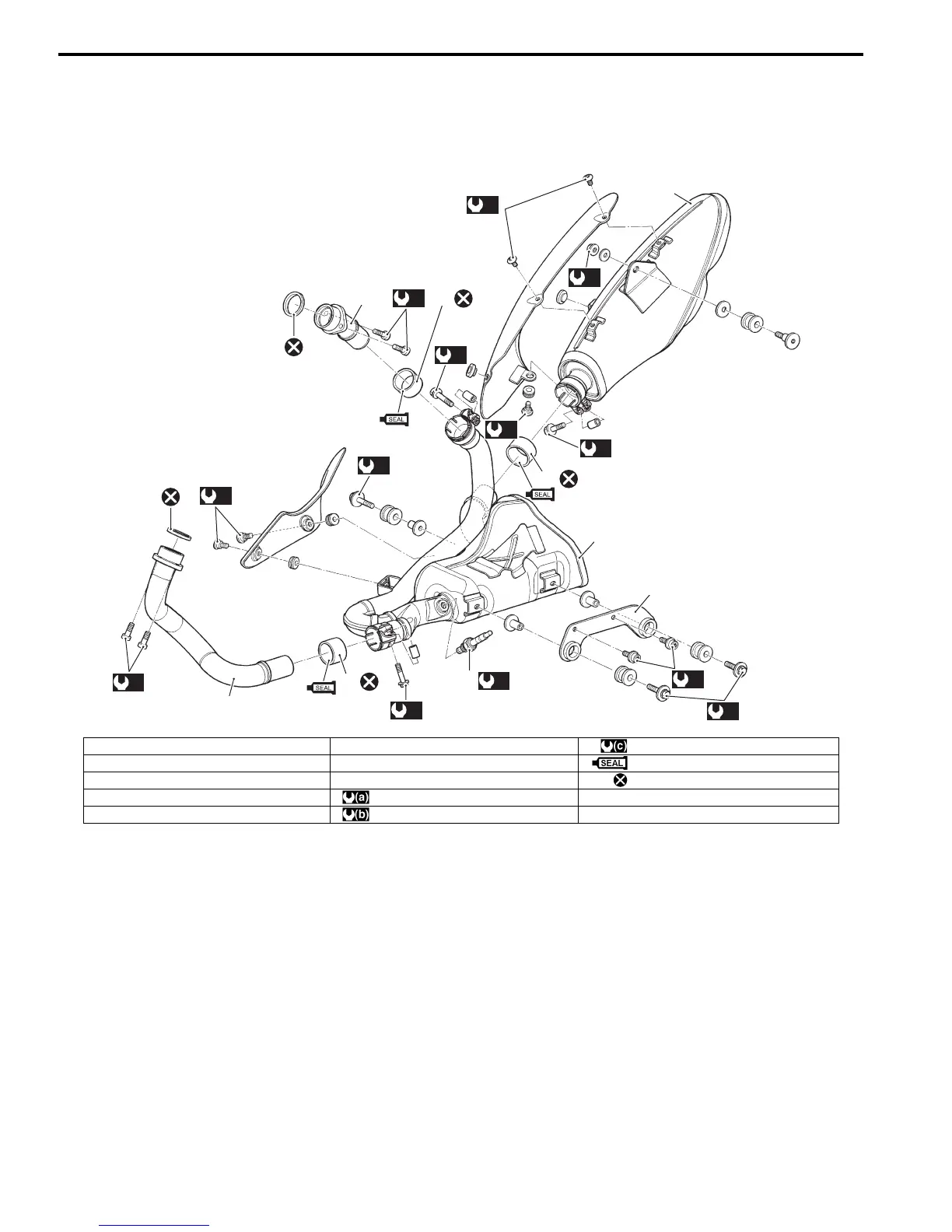

Exhaust System Construction
B944H11B06003
2
(a)
5
5
(a)
(c)
(b)
3
(c)
(a)
4
8
(b)
(a)
(b)
7
(a)
5
1
(a)
(c)
(a)
6
6
I944H11B0030-05
1. Front exhaust pipe 6. Gasket : 5.5 N⋅m (0.55 kgf-m, 4.0 lbf-ft)
2. Rear exhaust pipe 7. HO2 sensor : Apply muffler seal.
3. Muffler 8. Chamber support bracket : Do not reuse.
4. Exhaust assembly : 23 N⋅m (2.3 kgf-m, 16.5 lbf-ft)
5. Connector : 25 N⋅m (2.5 kgf-m, 18.0 lbf-ft)
